12 - 14
12. OPTIONS AND AUXILIARY EQUIPMENT
(e) Crimping terminals for P and N terminals of servo amplifier
POINT
Always use recommended crimping terminals or equivalent since some
crimping terminals cannot be installed depending on the size.
Servo amplifier Brake unit
Number of
connected
units
Crimping terminal (Manufacturer)
(Note)
Applicable
tool
MR-J2S-350B FR-BU2-15K 1 FVD5.5-S4 b
MR-J2S-500B FR-BU2-15K 1 (Japan Solderless Terminal)
FR-BU2-30K 1
MR-J2S-700B FR-BU2-30K 1
MR-J2S-11KB FR-BU2-30K 1 FVD5.5-6(Japan Solderless Terminal) b
FR-BU2-55K 1 FVD14-6(Japan Solderless Terminal) a
MR-J2S-15KB FR-BU2-30K 1 FVD5.5-6(Japan Solderless Terminal) b
FR-BU2-55K 1 FVD14-6(Japan Solderless Terminal) a
MR-J2S-22KB FR-BU2-55K 1 FVD14-8(Japan Solderless Terminal) a
Note. Symbols in the applicable tool field indicate the following applicable tools.
Symbol Applicable tool Manufacturer
a
Body
Head
Dice YF-1 E-4
YNE-38
DH-112 DH-122
b YNT-1210S
Japan Solderless
Terminal

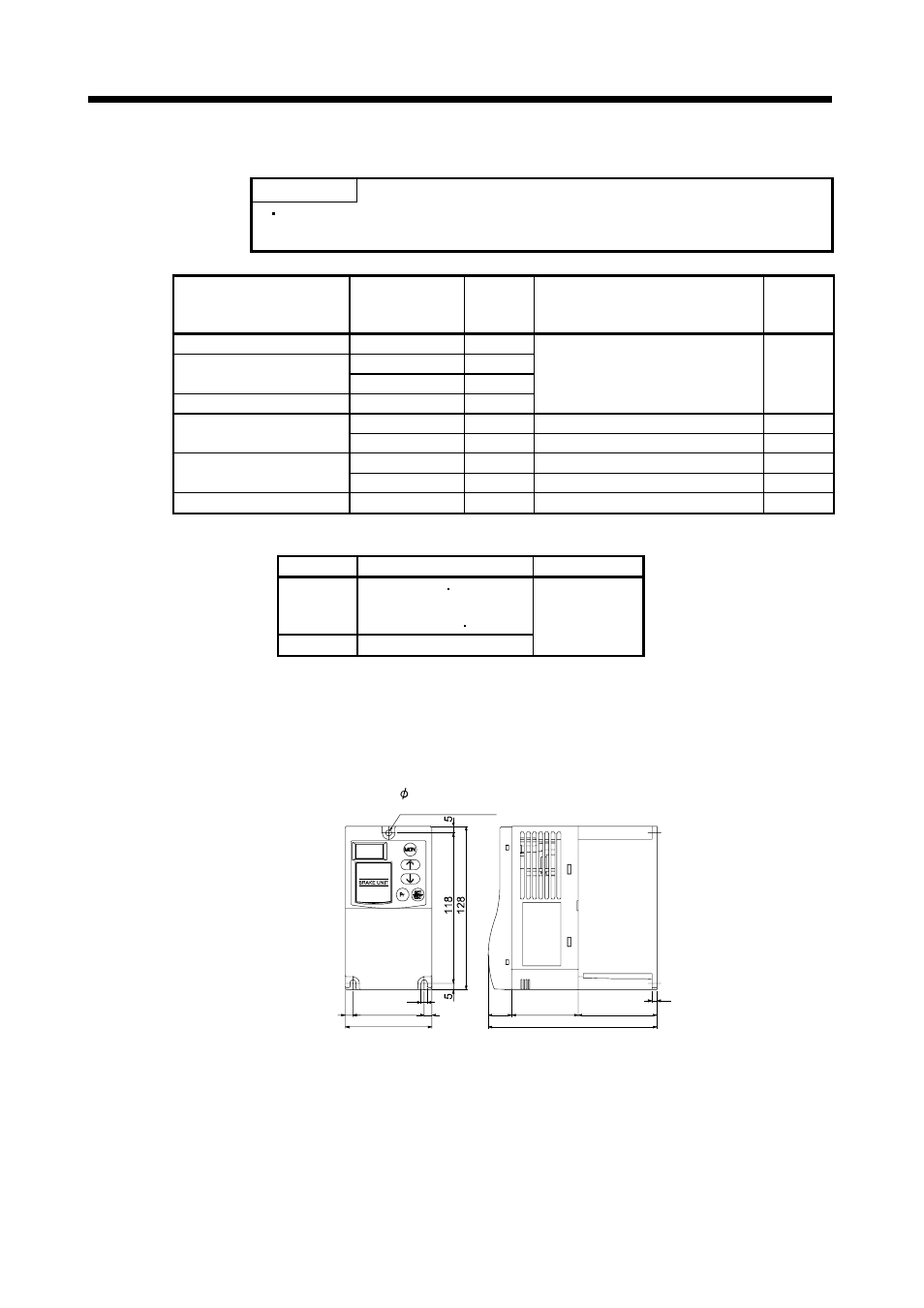

(4) Outline dimension drawings
(a) FR-BU2 brake unit
[Unit: mm]
FR-BU2-15K
Rating
plate
5 hole
(Screw size: M4)
68
6 56 6
5
18.5 52 62
4
132.5
