DCa25Usi 60 hz generaTor • operaTion anD parTs manUal — rev. #3 (07/19/11) — page 13
diMensiOns
D
B C
A
E
F
25
H
G
TOP VIEW
SIDE VIEW
FRONT VIEW

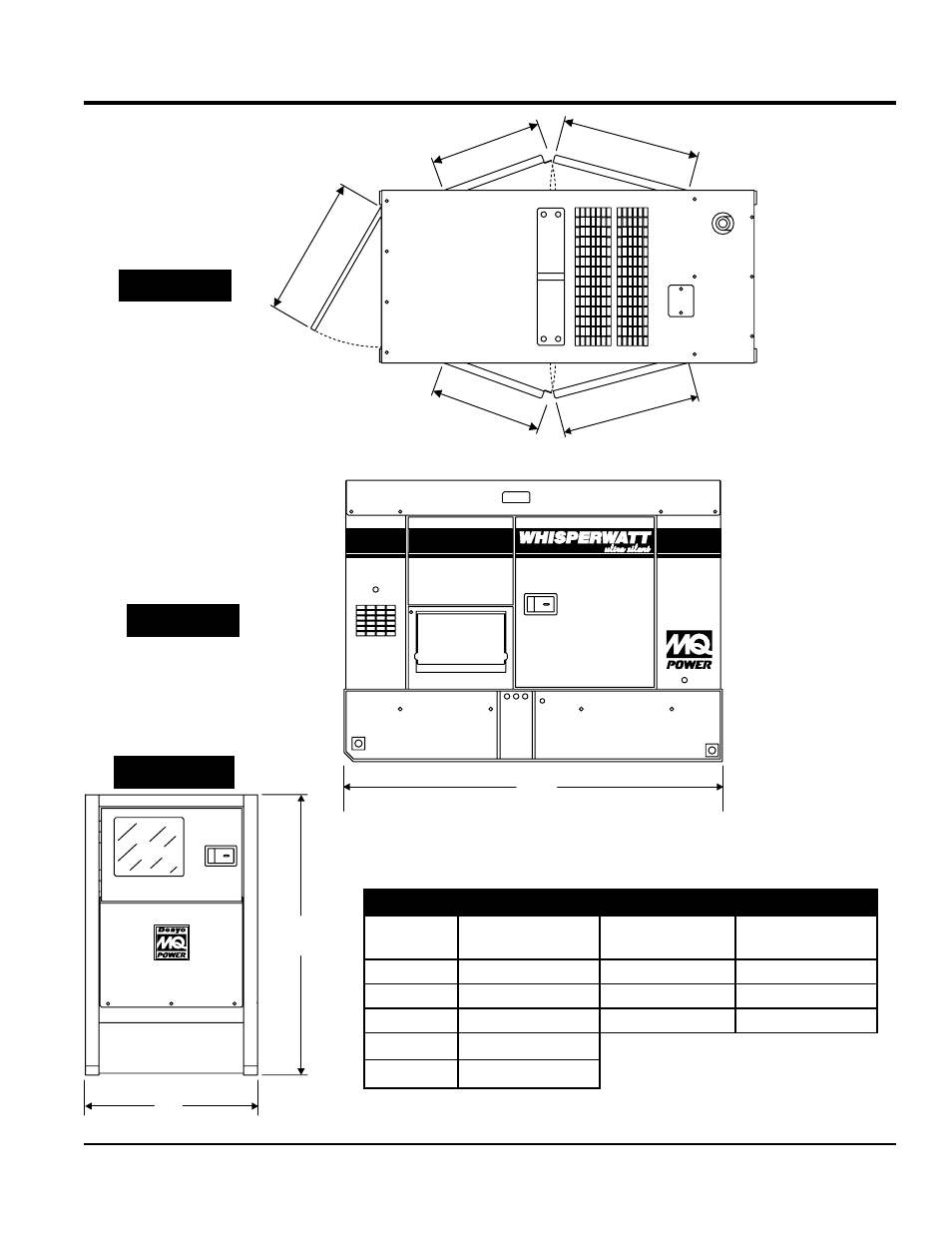

Figure 1. Dimensions
Table 3. Dimensions
reference
letter
Dimension in. (mm) reference letter Dimension in. (mm)
A 22.64 in. (575 mm.) F 70.47 in. (1,790 mm.)
B 20.87 in. (530 mm.) G 49.61 in. (1,260 mm.)
C 27.36 in. (695 mm.) H 31.1 in. (790 mm.)
D 24.41 in. (620 mm.)
E 25.59 in. (650 mm.)
