McCulloch MS1432 - Manual (Page 7)

7

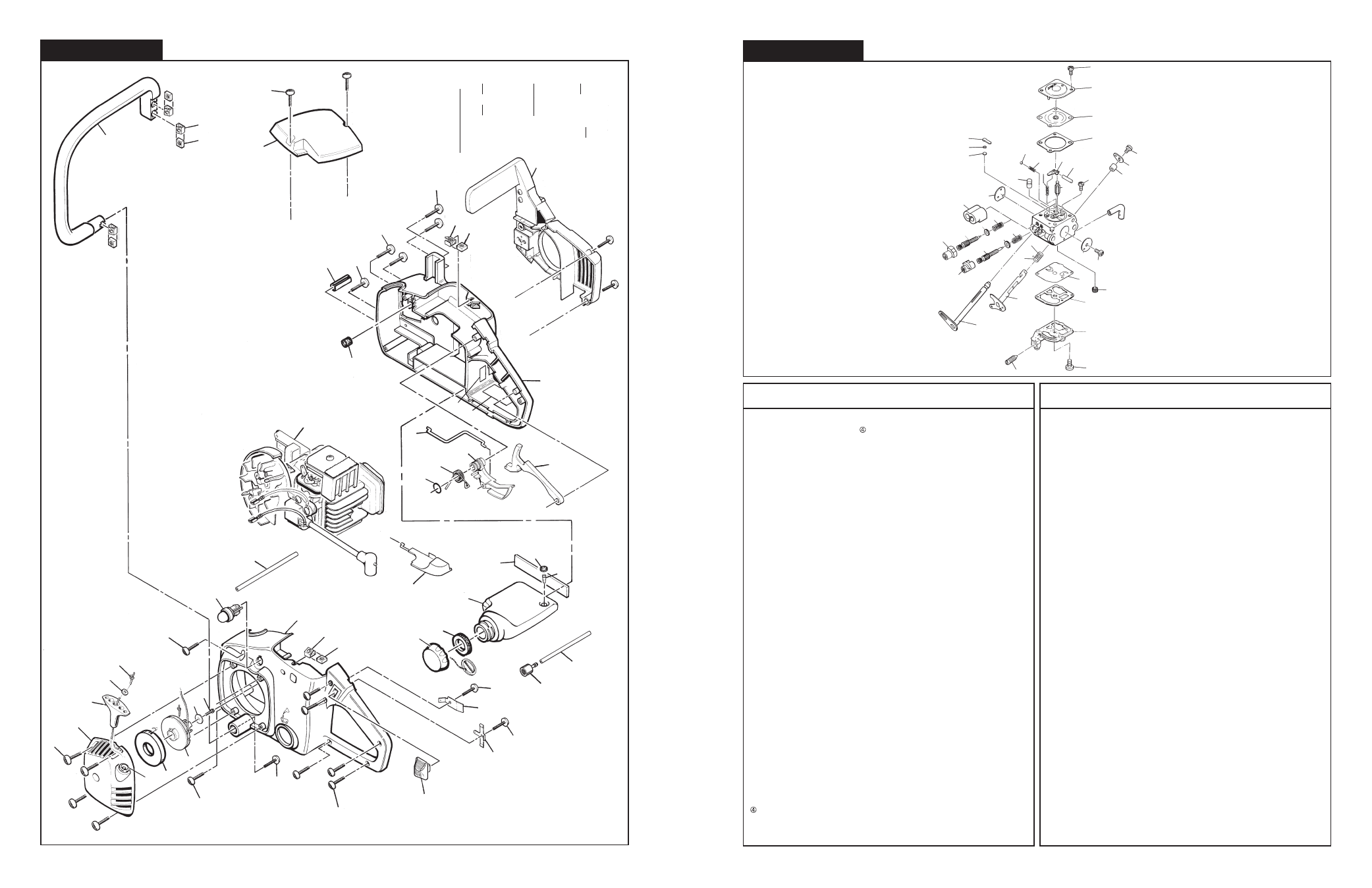

FIGURE 4
CARBURETOR ASSEMBLY
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
B 323653-03 Carburetor, Zama CU1M28C
B 324947-01 Carburetor. Zama C1QM36
1 -- -- . Strainer 1
2 -- -- . Plug, Welch 1
3 -- -- . Valve, Check 1
4 -- -- . Retainer, Check Valve 1
5 -- -- . Nozzle Asy, Check Valve 1
6 -- -- . Shaft Asy, Throttle 1
7 -- -- . Spring, Throttle Return 1
8 -- -- . Valve, Throttle 1
9 -- -- . Diaphragm Asy, Metering 1
10 -- -- . Diaphragm, Pump 1
11 -- -- . Gasket, Metering Chamber 1
12 -- -- . Gasket, Pump 1
13 -- -- . Cover, Pump 1
14 -- -- . Valve, Inlet Needle 1
15 -- -- . Spring, Metering Lever 1
16 -- -- . Lever, Metering 1
17 -- -- . Pin 1
18 -- -- . Cover, Metering Chamber 1
19 -- -- . Spring, Adjust Screw 2
20 -- -- . Screw, Main Mixture 1
21 -- -- . Screw, Idle Mixture 1
22 -- -- . Screw,Tlhrottle Adjust 1
23 -- -- . Spring, Friction 4
24 -- -- . Shaft Asy, Choke 1
25 -- -- . Valve, Choke 1
26 -- -- . Screw, Pin 1
27 -- -- . Screw, Throttle/Choke Valve 1
28 -- -- . Screw, Metering Chamber 2
29 -- -- . Screw, Pump Cover 1
30 -- -- . Ball, Steel 1
31 -- -- . Collar 1
32 -- -- . Lever, Throttle 1
33 -- -- . Screw, Throttle Lever 1
34 -- -- . Washer, Limiter 2
35 B 111216 . Cap, Limiter, Hi 1
36 B 111217 . Cap, Limiter, Lo 1
37 -- -- . Retainer, Limiter 1
301041 Kit, Carburetor Repair RB-39 (Stk Code A)
301042 Kit, Gasket/Diaphragm GND-35 (Stk Code A)
Can be used on 32/35cc models with serial number prefixes 11-, 21-
Can be used on 32/35cc models with serial number prefixes 11-, 21-, 22-
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
- B 323653-04 Carburetor, Walbro WT 438
1 -- -- . Strainer 1
2 -- -- . Plug, Welch 1
3 -- -- . Valve, Check 1
4 -- -- . Retainer, Check Valve 1
5 -- -- . Nozzle Asy, Check Valve 1
6 -- -- . Shaft Asy, Throttle 1
7 -- -- . Spring, Throttle Return 1
8 -- -- . Valve, Throttle 1
9 -- -- . Diaphragm Asy, Metering 1
10 -- -- . Diaphragm, Pump 1
11 -- -- . Gasket, Metering Chamber 1
12 -- -- . Gasket, Pump 1
13 -- -- . Cover, Pump 1
14 -- -- . Valve, Inlet Needle 1
15 -- -- . Spring, Metering Lever 1
16 -- -- . Lever, Metering 1
17 -- -- . Pin 1
18 -- -- . Cover, Metering Chamber 1
19 -- -- . Spring, Adjust Screw 2
20 -- -- . Screw, Main Mixture 1
21 -- -- . Screw, Idle Mixture 1
22 -- -- . Screw,Tlhrottle Adjust 1
23 -- -- . Spring, Friction 4
24 -- -- . Shaft Asy, Choke 1
25 -- -- . Valve, Choke 1
26 -- -- . Screw, Pin 1
27 -- -- . Screw, Throttle/Choke Valve 1
28 -- -- . Screw, Metering Chamber 2
29 -- -- . Screw, Pump Cover 1
30 -- -- . Ball, Steel 1
31 -- -- . Collar 1
32 -- -- . Lever, Throttle 1
33 -- -- . Screw, Throttle Lever 1
34 -- -- . Washer, Limiter 2
35 B 325465 . Cap, Limiter, Hi 1
36 B 325466 . Cap, Limiter, Lo 1
37 -- -- . Retainer, Limiter 1
324013 Kit, Carburetor Repair A1128WT (Stk Code A)
324009 Kit, Gasket/Diaphragm B1110WT (Stk Code A)
Can be used on 32/35cc models with serial number prefixes 11-, 21-
18
9
11
33
32
31
16
17
26
27
27
10
12
13
29 22
24
6
7
36
35
20
21
19
34
19
37
25
3
4
5
5
30
23
15
28
¬
¿
¿
¿¡
¿¡
¿¡
¿
¿
¿
¿
¿
¡
¬
¿¡
¿
¡
¬
¬
¿
¿
¿¡
¿¡
¿¡
¿¡
¿
¿
¿
¿
2
GENERAL ASSEMBLY FIGURE 1
––4––
––6
––7––
3––––9
––10
––11
––12
––4
––5
––7
––8
––14
––15
14–––16
––17
––18
18–––19
––25
25–––26
39
41
40
44
43
32
46
46 26
22
25
41
40
2
31
28
27
29
30
45
24
21
20
17
15
16
14
19
18
37
35
37
38
36
34
42
34
5
12
4
9
10
8
6
7
11
13
34
23
33
41
40
1
