McCulloch MS1432 - Manual (Page 3)

3
1 - FIGURE 2 Powerhead Asy
2 - FIGURE 3 Chain Brake Asy
3 A 300264 Starter Housing Asy, Yellow 1
4 B 301044 . Housing/Rope Guide Asy, Yellow 1
5 - -- -- .. Rope Guide 1
6 A 300475 . Spring, Starter Rewind 1
7 A 301043 . Rope/Drum Asy (32cc) 1
8 A 300300 .. Rope, Starter 50” 1
9 A 87851 . Handle, Starter 1
10 A 223944 . Bushing, Starter 1
11 A 300297 . Washer, .19 ID x .68 OD 1
12 A 300294 . Screw, 8-16 x .75 Torx Hd Plast 1
13 A 300294 Screw, 8-16 x .75 Torx Hd Plastite 4
14 B 300260 Oil Tank Asy 1
15 A 300289 . Hose, Oil Pick-up 1
16 A 92465 . Pickup, Oil 1
17 A 300256 . Valve, Duckbill 1
18 A 300565 Oil Cap Asy 1
19 - -- -- . Gasket 1
20 A 300259 Filter, Foam 1
21 B 322195 Spacer, Oil Tank 1
22 A 300259 Filter, Foam 1
23 A 224242-02 Primer, Remote 1
24 A 300298 Hose 1
25 C 301049 Housing/Pin Asy, Right 1
26 - -- -- . Pin, Roll 1/4 x 1.0 L 1
27 A 224821 Trigger, Throttle 1
28 B 224822 Latch, Throttle 1
FIGURE 1
GENERAL ASSEMBLY
29 A 224823 Spring, Torsional 1
30 B 111128 “O” Ring 1
31 B 224827 Rod, Throttle 1
32 A 111226 Screw, 10-24 x .62 Tr Hd Torx 2
33 B 323945-61 Engine Housing, Left, Blk 1
34 A 300294 Screw, 8-16 x .75 Tr Hd, Plastite 7
35 C 224845 Contact, Ground 1
36 A 68846 Button,Stop Switch 1
37 A 223357 Screw, 8-16 Plastite 2
38 B 224844 Contact, Ignition 1
39 B 224836-01 Handle, Front 1
40 A 218005 Nut, Square 10-24 5
41 A 300292 Retainer, Nut 5
42 A 217936 Screw, 10-24 x .75 Tr Torx 1
*43 B 224830 Cover, Air Filter 1
44 A 111099 Screw, 10-24 x .625 Pn Hd Torx 2
45 A 224826-01 Slide, Choke 1
46 A 111226 Screw, 10-24 x .62 Tr Hd Torx 4
ENGINE SPECIFICATIONS
Displacement . . . . . . . . . . . . . . . .32cc (2.0 ci)
35cc (2.1 ci)
Spark Plug . . . . . . . . . . . . . . . . . .RDJ7Y
Spark Plug Gap . . . . . . . . . . . . . .025 in. (0.63mm)
Flywheel to Ignition Gap . . . . . . . .0.010-0.015 in. (0.254-0.381mm)
Max Power Speed . . . . . . . . . . . .8000 RPM
Idle Speed . . . . . . . . . . . . . . . . . .2800-3300 RPM
Clutch Engagement Speed . . . . . .3800-4000 RPM
Max No Load Speed . . . . . . . . . . .11,000 RPM
Fuel Tank Capacity . . . . . . . . . . . .10 fl. oz
Oil Tank Capacity . . . . . . . . . . . . .6.1 fl. oz
Starter Rope . . . . . . . . . . . . . . . . .Nylon, 50 in.
TORQUE SPECIFICATIONS
FASTENER FIG/ TORQUE
DESCRIPTION PART NO. ITEM (IN/LBS) LOCTITE
Right Hsg to C’case 111226 1/32 40-50 262
Oil Pump to C’case 111226 2/9 30-40 262
Carb Insul to Cyl 217937 2/54 30-40 262
Spark Plug 322208 2/19 150 --
Flywheel Nut 110961 2/31 180 --
Clutch Nut 111079 2/69 180 --
Muffler Screws 111093 2/49 50 --
Carburetor Screws 218083 2/56 30-40 262
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
6

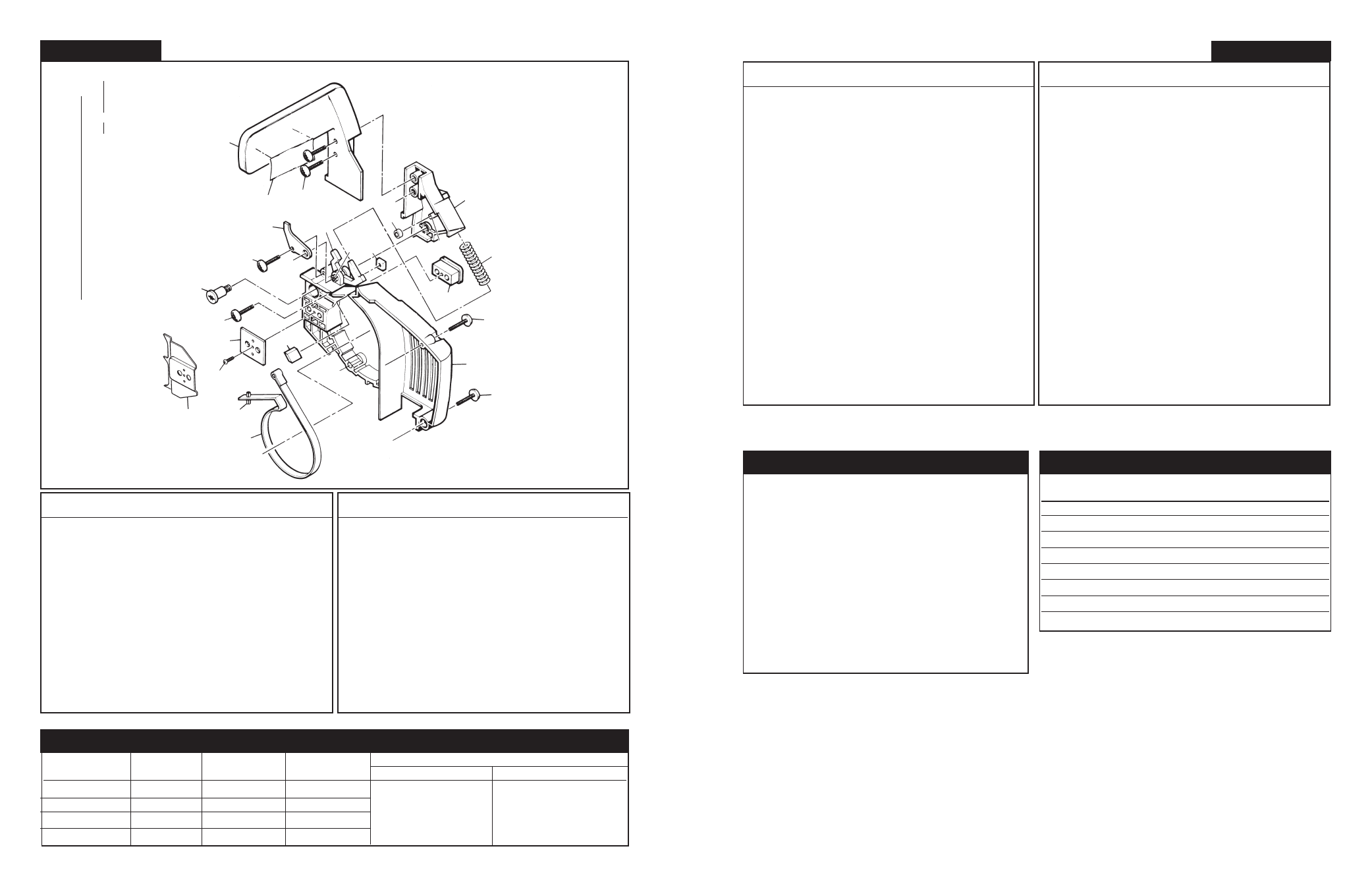

FIGURE 3
CHAIN BRAKE ASSEMBLY
1 C 301558 Brake Kit Asy, Yellow 1
2 C 301559 . Housing Kit Asy, Yellow 1
3 C 216755 .. Latch, Chain Brake 1
4 - -- -- .. Dowel, Spring 2
5 - -- -- .. Pin, Dowel 2
6 B 301038 . Lever, Brake Asy 1
7 - -- -- .. Pin, Dowel 1
8 A 111226 . Screw, 10-24 x .62 Tr Hd Torx 3
9 A 323082 . Guard, Hand 1
10 B 224849 . Roller 1
11 B 224847 . Screw, Shoulder 1
12 B 224848 . Stop, Brake 1
13 A 300294 . Screw, 8-16 x .75 Tr Hd Plastite 1
14 A 301037 . Band, Brake 1
15 - -- -- .. Pin, Spring (.125 x .50) 1
16 A 322204 . Spring, Compression 1
17 A 218005 . Nut, Square 10-24 1
18 B 300275 . Shield 1
19 B 300271 . Spacer, Bar Pad 1
20 C 111101 . Screw, 4-40 x 5/16 Taptite 1
21 A 322194 . Seal, Foam 1
22 A 300299 . Screw, 8-16 x 1.0 Tr Hd Plastite 2
23 B 46703-41 . Label, Safety 1
24 B 322181 Spike, Bucking 1
* Choose appropriate color
Optional accessory
––2––
––6––
––8
––9
––10
––11
––12
1––––13
––14
––15
––16
––17
––18
––19
––20
––21
––22
––23
––2
––3
––4
––5
––6
––7
9
23
8
10
6
16
19
17
12
13
3
4
22
21
11
2
22
14
15
20
24
18
BAR AND CHAIN BAR PART CHAIN CHAIN SERVICE TOOLS
SIZE NUMBER PART NUMBER SPECIFICATIONS FILE AND GUIDE PN FILE PN (Description)
10” 214233-33 214923-33 MPG370GLX38cl
12” 214234-33 214921-33 MPG370GLX44cl 301992-33 214217-33
14” 214235-33 214919-33 MPG370GLX49cl (5/32) (5/32)
16” 214236-33 214925-33 MPG370GLX54cl
BAR AND CHAIN INFORMATION
5
8
4
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
7
¿
¿
