32
MultiFRAD II User Guide
both virtual WAN numbers have to be the same and unique. In a frame relay configuration, the logical
WAN network number has to be the same and unique at both ends of the Permanent Virtual Circuit
(PVC).

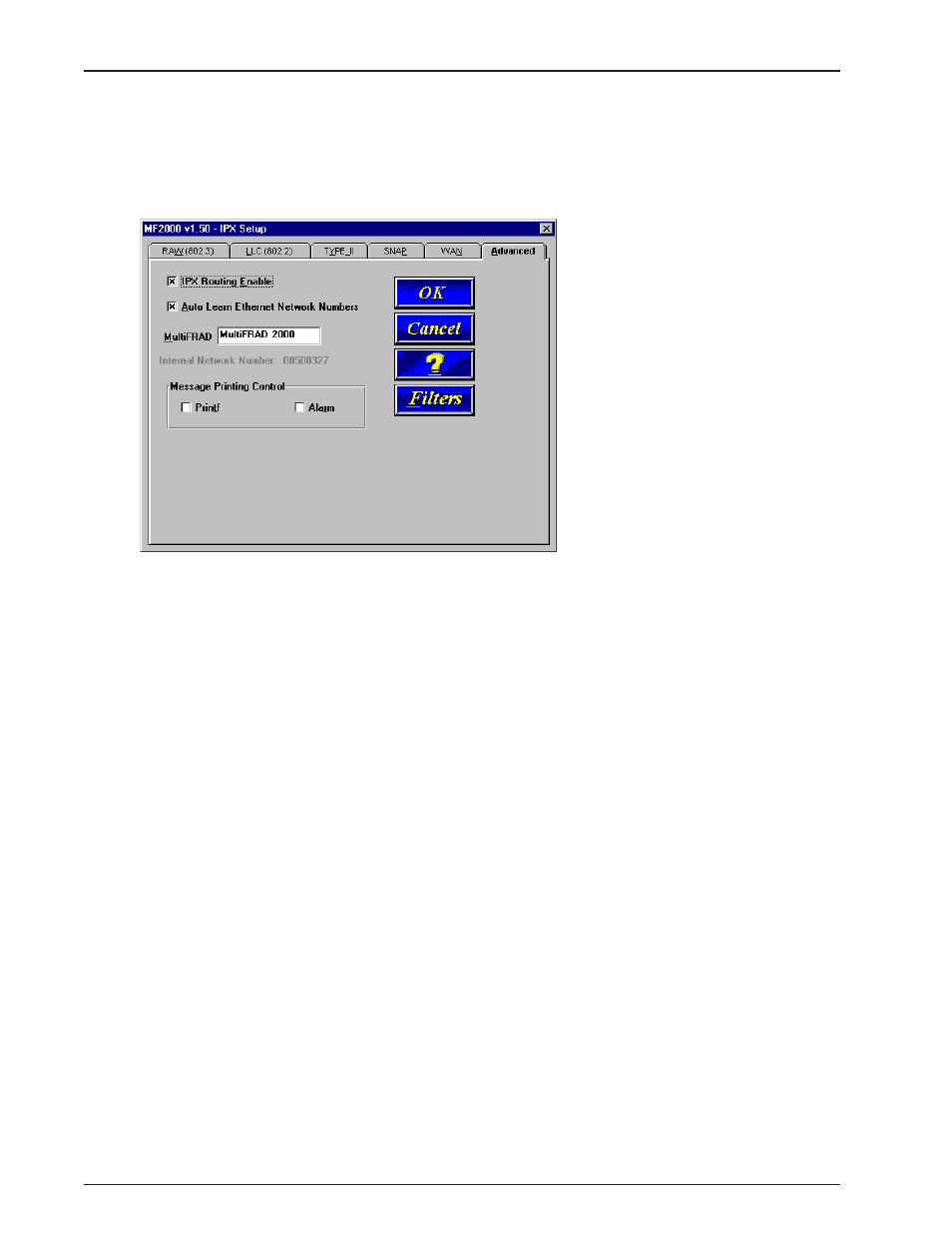

The Advanced IPX Setup dialog box controls the routing of the protocol, enables or disables auto
learn of Ethernet network numbers, specifies the broadcast name of the MultiFRAD, and defines any
IPX filtering by filter type, port number, and IPX address.
If bridging of IPX packets is desired, IPX routing must be disabled and frame type support for the
frame type must be enabled.
If there is a server on the local segment, IPX network number auto learn should be enabled. If there
is no server, or if for some reason the router comes up before the server, the router will default to
some random network numbers after a short interval of time.
