Updating driver – Moxa Technologies Moxa Smartio C168H User Manual
Page 29
Software Installation
Smartio C168H/PCI User’s Manual
3-11
4.
Then please refer to Step 6 to 21 in “First Time Installing Driver” of
“Windows NT” section.

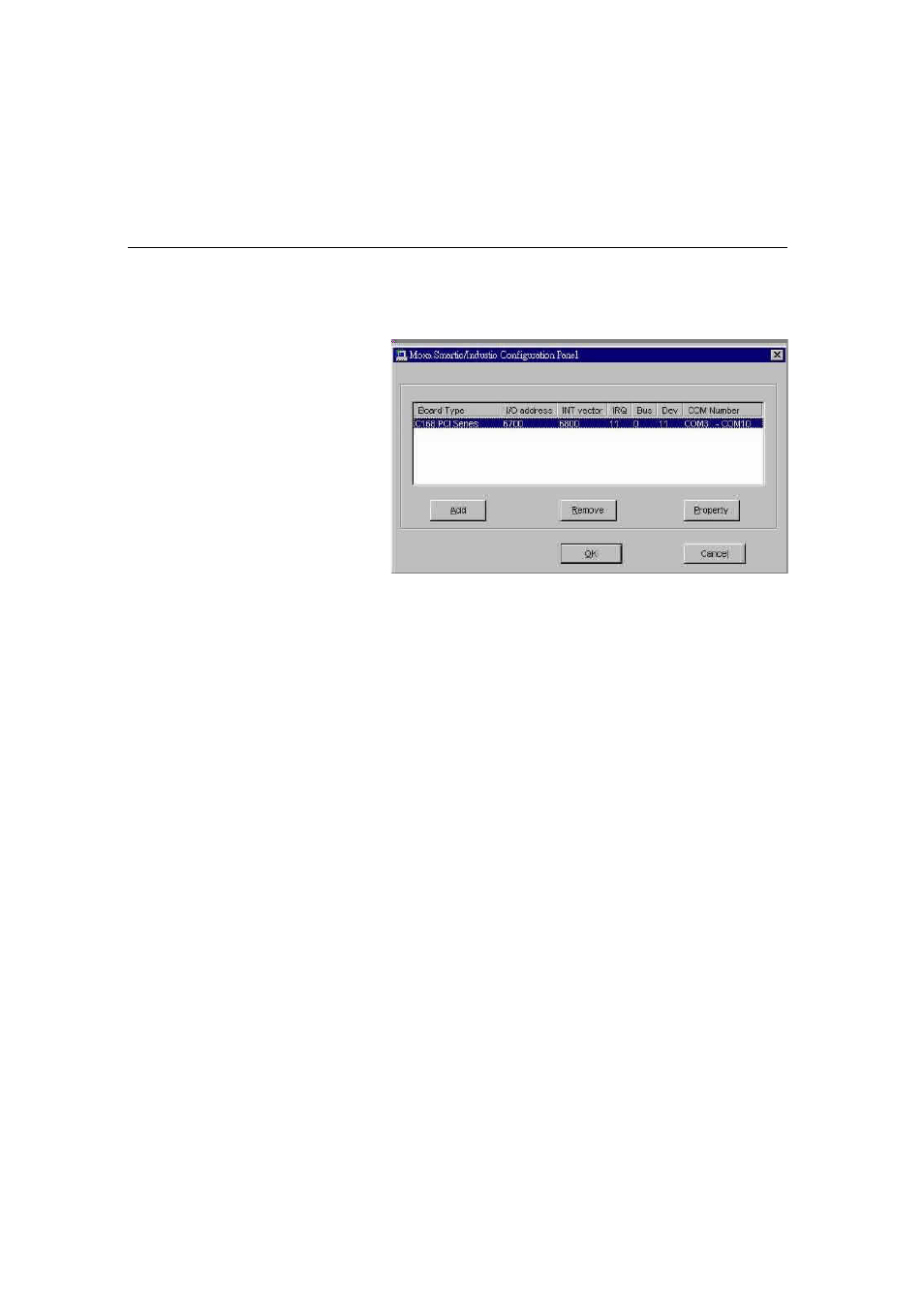

Remove Existing C168H/PCI Board Configuration
By unplugging C168H/PCI board, the system will automatically remove the
configuration. Therefore, there is no need to do removal action from Moxa
Smartio/Industio Configuration Panel dialog box.
Updating Driver
To update the driver for the Smartio C168H/PCI board, simply follow the following
procedures.
1.
Open [Control Panel], click [Network] icon, and select [Adapters] tab.
2.
Click on MOXA Smartio/Industio Family Adapter in the Network Adapter
list.
3.
Click [Remove] button in Network dialog box.
4.
Click [Close] button in Network dialog box.
5.
Restart the system.
