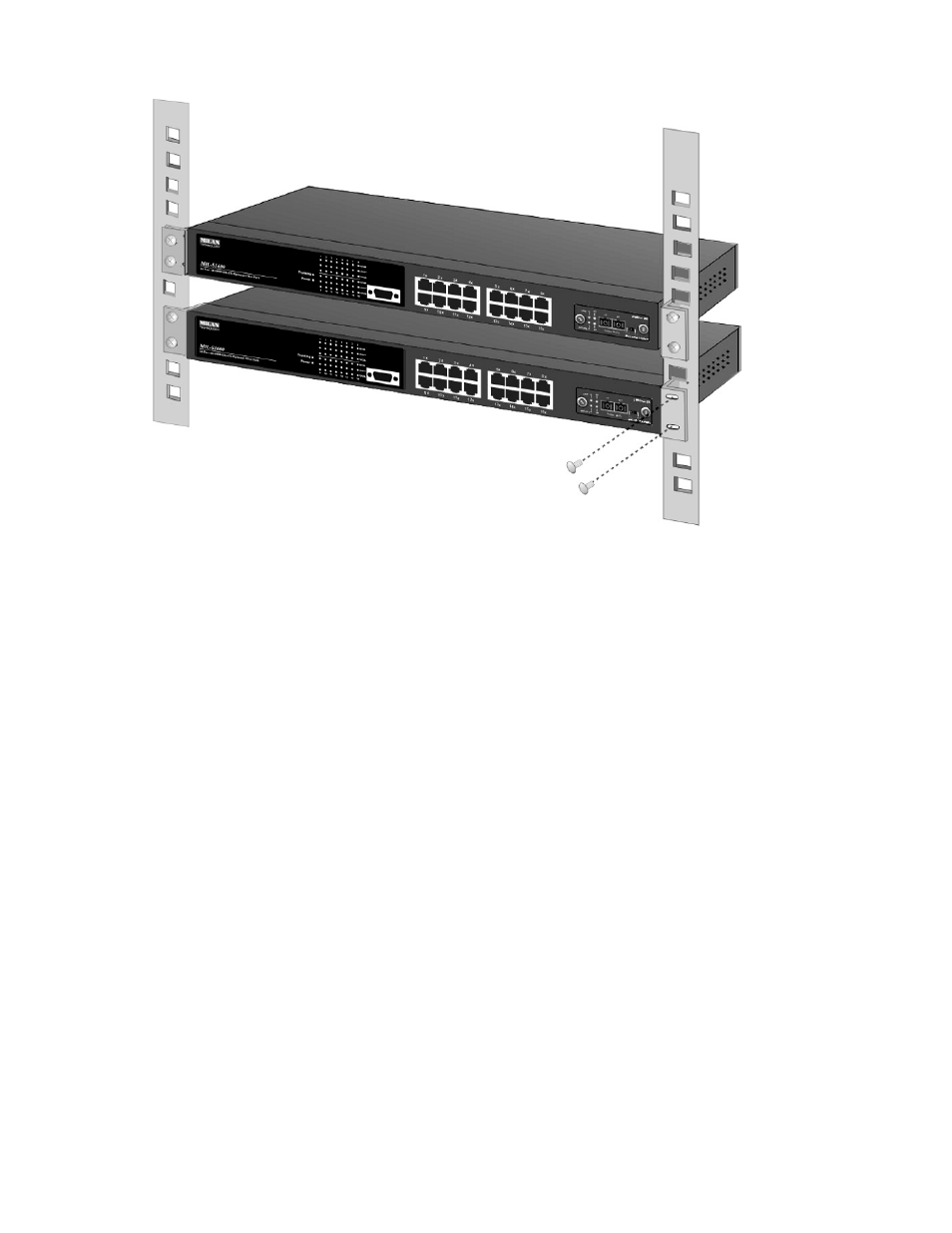

Figure 2-6. Mounting the MIL-S1600 in an EIA standard 19-inch Rack

Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance
on the front and 3.4 inches (8 cm) on the back of the switch. This is
especially important for enclosed rack installation.

Power On

Connect the power cord to the power socket on the rear panel of the
switch. The other side of power cord connects to the power outlet. The
internal power supply in the switch works with AC in the voltage range
100-240V AC, frequency 50~60Hz.

Check the Power LED on the front panel to see if power is properly
supplied.
