Burst current (<1 sec)
32 A RMS (115 V)
16 A RMS (230 V)
36A RMS (100 V)
Note: AC power cabling must be of sufficient gauge so that under burst current conditions, cable
transmission losses do not drop voltage below specified operating range at the speaker.
Ultimate short-term peak
current draw
50 A pk (115 VAC)
25 A pk (230 VAC)
57 A pk (100 VAC)
Inrush current
< 12 A at 115 VAC
RMS™ Network
Equipped for simple two conductor twisted-pair network, reporting all operating parameters of
amplifiers to operator’s host computer.
Physical
Enclosure
Multi-ply hardwood
Finish
Black textured (weather protected)
Note: Customer color available upon request
Protective grill
Powder-coated Hex stamped steel
Rigging
QuickFly MRF-3D rigging frame with integral CamLinks, rear connecting bars and captive quick-release
pins
Weather protection
Standard
Dimensions
54" W x 20" H x 30.5" D (1372 mm x 508 mm x 762.5 mm)

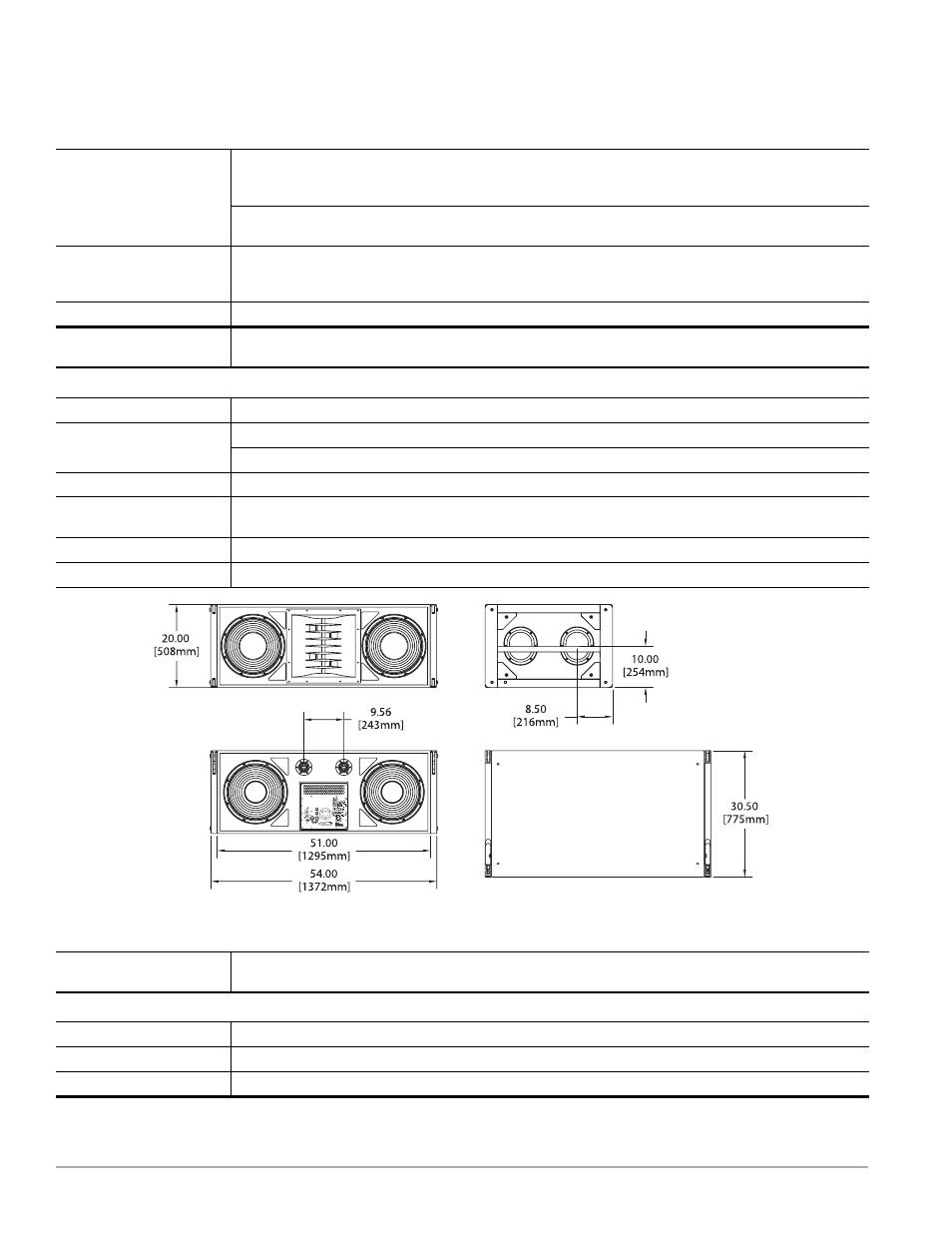

Figure 30.
M3D Loudspeaker physical dimensions
Weight
Net: 415 lbs (188 kg)
Shipping: 500 lbs (228 kg)
Safety Agency Recognitions
CE
Compliant
UL
Listed
IEC 60065 (1998)
Compliant
Table 2. M3D Line Array Specifications (continued)
