4

M3D™ Line Array

Meyer Sound Laboratories Inc

For M3D or M3D-Sub loudspeakers fitted with the VEAM

multipin connector please refer to the Meyer Sound

document,

VEAM Cable Wiring Reference,

part number

06.033.113, for the wiring conventions and pinouts for

the AC, audio, and RMS connections. Use the information

in this document to create power cables and distribution

systems.

Meyer Sound offers the VIM (VEAM interface module) to

distribute power, audio, and RMS to M3D or M3D-Sub

systems fitted with VEAM connectors. (See Figure 8.)

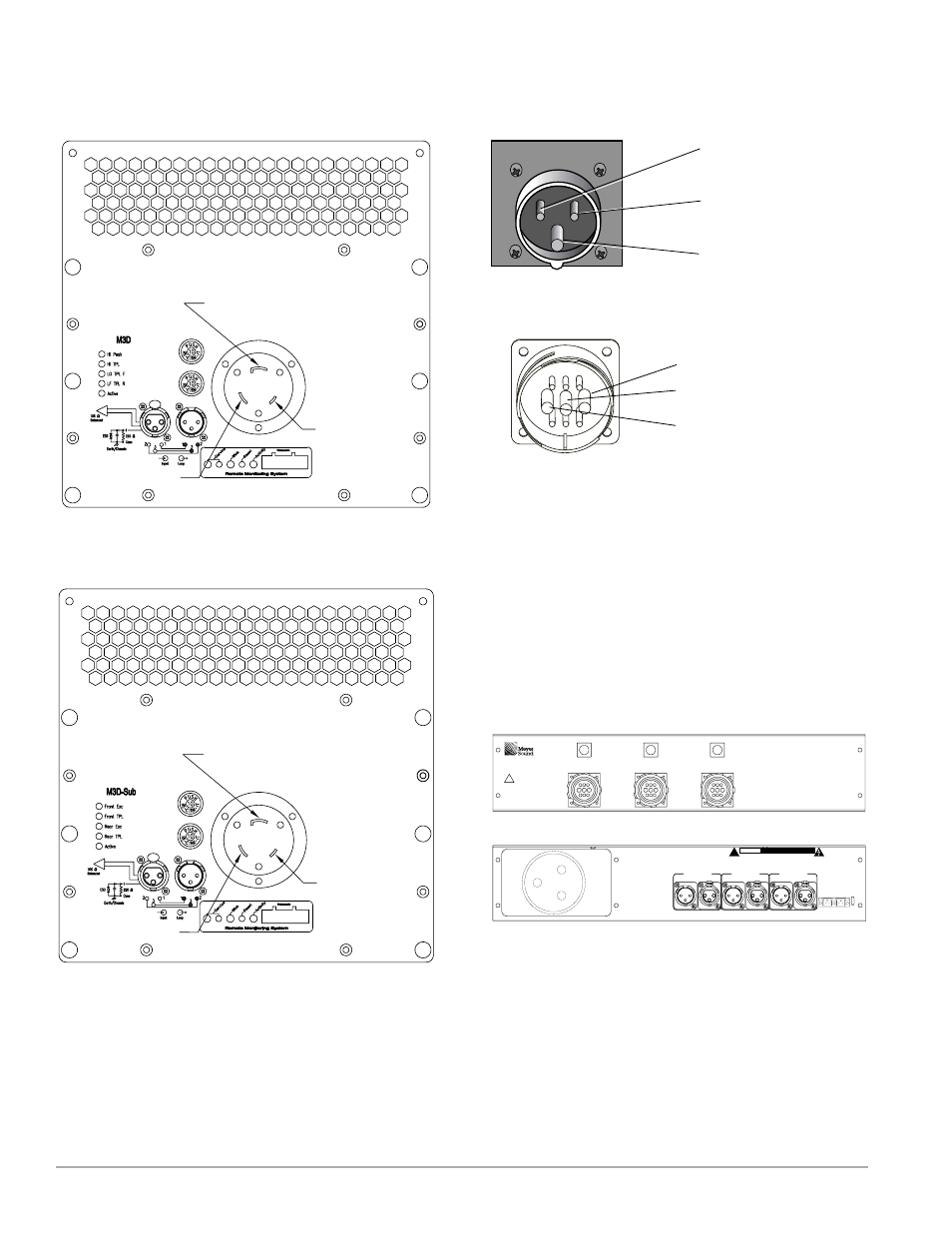

Figure 4.

M3D user rear panel with L6-20 power

connector

Figure 5.

M3D-Sub user rear panel with L6-20 power

connector

GROUND (GREEN/YELLOW)

Y - LINE (BROWN)

X - NEUTRAL (BLUE)

WARNINGS:
THIS PRODUCT MUST BE GROUNDED

This surface may reach high tempuratures white in use.

To ensure proper operation, allow at least 6 inches
clearance from this surface and adequate ventilation.
To reduce the risk of electric shock do not remove cover.
No operator or serviceable parts inside.
Refer servicing to qualified personnel.
To reduce the risk of fire or electric shock
do not expose this appliance to rain or moisture.

ATENCI N:

ACCESO INTERNO SOLO

AUTHORIZADO A PERSONAL T CNICO CALIFICO

ACHTUNG:

GEHˆUSE NICHT OFFENE WARTUNG

UND REPARATUR NUR DURCH ELEKTROFˆCHKRAFTE

ATTENTION:

ENTRETIENET REPARATIONS

INTERNES NE SONT AUTORISEES QU’AU

PERSONNEL TECHNIQUE QUALIFI

U.K. WARNING:

THIS APPARATUS MUST BE EARTHED.

NO OPERATOR SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.

GROUND (GREEN/YELLOW)

Y - LINE (BROWN)

X - NEUTRAL (BLUE)

WARNINGS:
THIS PRODUCT MUST BE GROUNDED

This surface may reach high tempuratures white in use.

To ensure proper operation, allow at least 6 inches
clearance from this surface and adequate ventilation.
To reduce the risk of electric shock do not remove cover.
No operator or serviceable parts inside.
Refer servicing to qualified personnel.
To reduce the risk of fire or electric shock
do not expose this appliance to rain or moisture.

ATENCI N:

ACCESO INTERNO SOLO

AUTHORIZADO A PERSONAL T CNICO CALIFICO

ACHTUNG:

GEHˆUSE NICHT OFFENE WARTUNG

UND REPARATUR NUR DURCH ELEKTROFˆCHKRAFTE

ATTENTION:

ENTRETIENET REPARATIONS

INTERNES NE SONT AUTORISEES QU’AU

PERSONNEL TECHNIQUE QUALIFI

U.K. WARNING:

THIS APPARATUS MUST BE EARTHED.

NO OPERATOR SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.

Figure 6.

IEC 309 power connector pin-out

Figure 7.

VEAM multipin connector power pin-out

Figure 8.

VIM-3 module

line (brown)

ground (green/yellow)

neutral (blue)

line (brown)

ground (green/yellow)

neutral (blue)

Network

Terminator

On

Off

Remote Monitor System

AC Input 230V~

50-60Hz 32A Max.

CHANNEL 3

Input Loop

CHANNEL 2

Input Loop

CHANNEL 1

Input Loop

!

CAUTION

RISK OF ELECTRIC SHOCK-- DO NOT OPEN

WARNINGS:

THIS APPARATUS MUST BE EARTHED. IMPORTANT: The wires in this mains lead are

coloured in accordance with the following code --green-and-yellow: earth --blue:neutral --brown: live

To reduce the risk of fire or electric shock do not expose this appliance to rain or moisture

A T E N C I N

: A C C E S O I N T E R N O S O L O A U T O R I Z A D O A P E R S O N A L T C N I C O C A L I F I C A D O

ACHTUNG

: G E H ˜ U S E N I C H T F F N E N W A R T U N G U N D R E P A R A T U R N U R D U R C H E L E K T R O F A C H K R ˜ F T E

ATTENTION

: E N T R E T I E N E T R E P A R A T I O N S I N T E R N E S N E S O N T A U T O R I S E E S Q U ’ A U P E R S O N N E L T E C H N I Q U E Q U A L I F I

FRONT

REAR

VIM- 3

Connect only to
Meyer Sound
Self-Powered Series
or Self-Powered
UltraSeries
Loudspeakers.

Push to Reset

10A Max.

Push to Reset

10A Max.

Push to Reset

10A Max.

!

1

2

3
