8

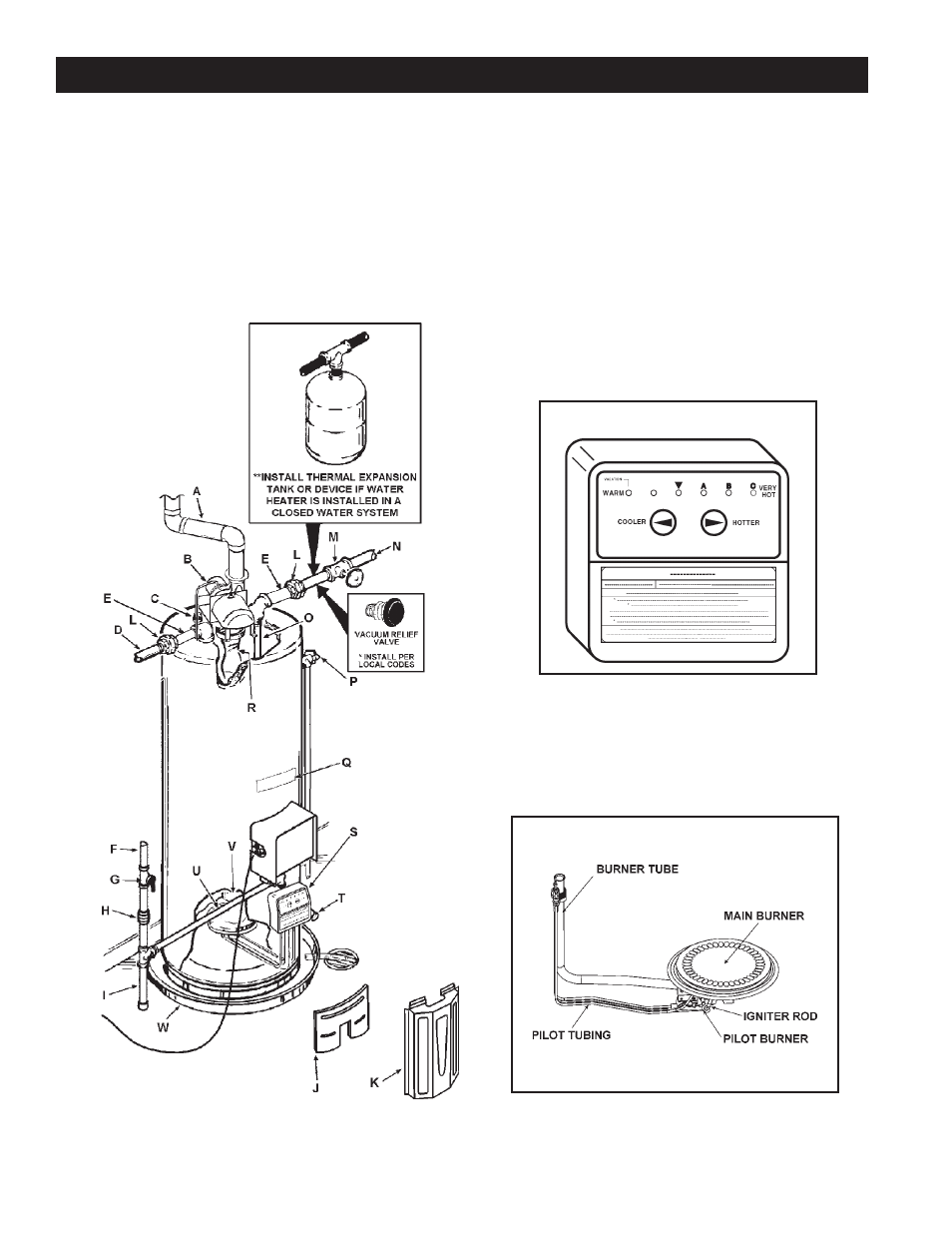

TYPICAL INSTALLATION
GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Pipe
B Blower
C Anode
D Hot Water Outlet
E Standard Pipe Fittings
F Gas Supply
G Manual Gas Shut-off Valve
H
Ground Joint Union
* INSTALL IN ACCORDANCE
WITH LOCAL CODES.
* DRIP LEG AS REQUIRED
BY LOCAL CODES.
FIGURE 7.
I Drip Leg (Sediment Trap)
J Inner Door
K Outer door
L Union
M Inlet Water Shut-off Valve
N Cold Water Inlet
O Inlet Dip Tube
P Temperature-Pressure Relief Valve
Q Rating Plate
R Flue Baffle
S Thermostat
T Drain Valve
U Pilot and Main Burner
V Flue
W Drain Pan
(U) PILOT & MAIN BURNER
(S) THERMOSTAT
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS.
** CLOSED WATER SYSTEMS ARE THOSE WITH BACK FLOW
PREVENTION DEVICES INSTALLED IN THE INLET
SERVICE LINE.
TO VENT TERMINATION
ON ROOF
