MAYTAG GAS WATER HEATERS

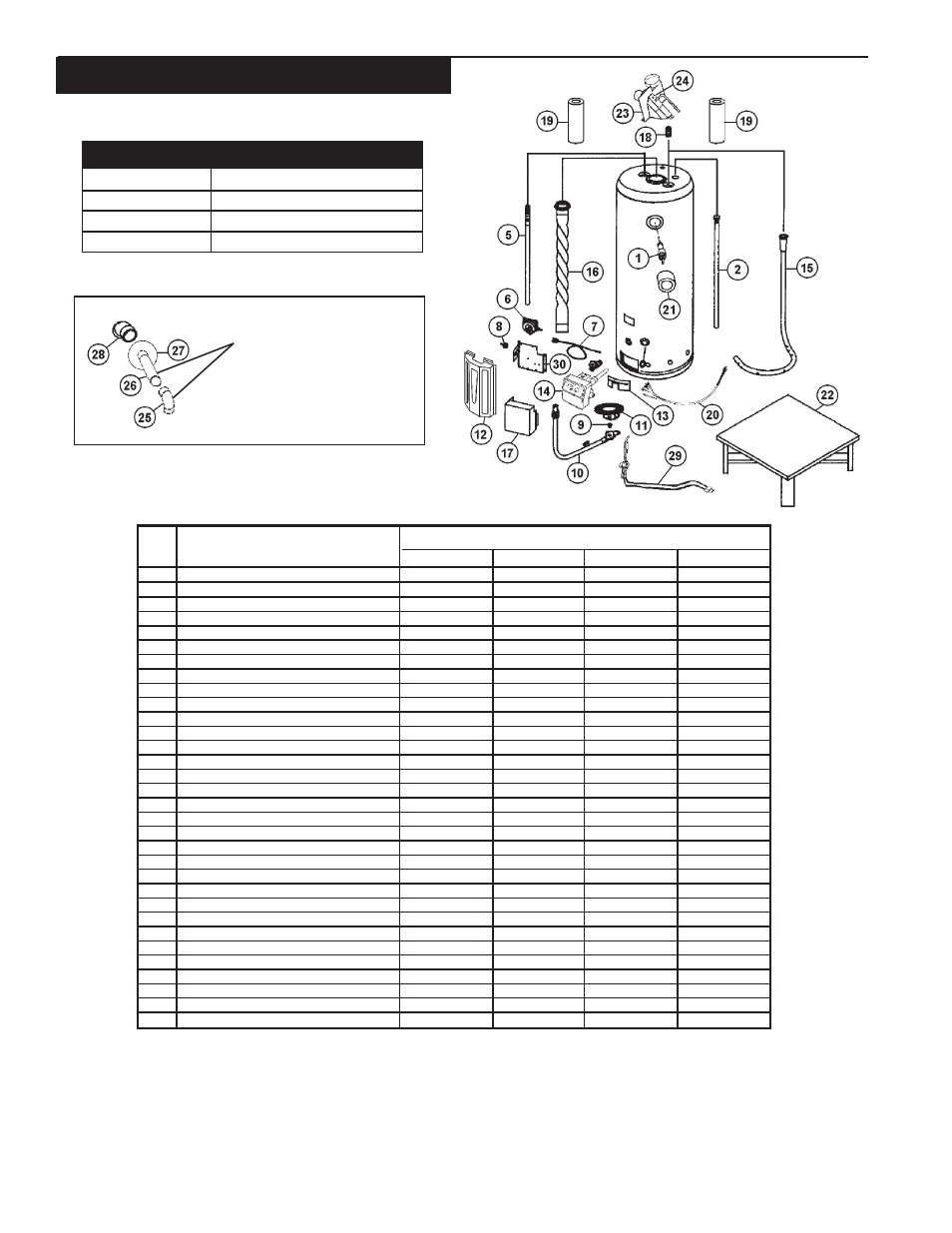

REPAIR PARTS LIST
Now that you have purchased this gas water heater, should a need
ever exist for repair parts or service, simply call Maytag Customer
Service at 1-800-788-8899 for an authorized servicer. Be sure to
provide all pertinent facts when you call or visit.
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
The model number of this gas water heater will be found on the model
rating plate located near the gas control valve.
When ordering repair parts, always give the following information:
• Model number
• Serial Number
• Part Description
• Part Number
MODEL NO’S
HRN11250P 50 Gallon Natural Gas
HRN31250P 50 Gallon Natural Gas
HRP11250P 50 Gallon Propane Gas (L.P.)
HRP31250P 50 Gallon Propane Gas (L.P.)
* Not Shown.
Key Model Numbers
No. Part Description HRN11250P HRN31250P HRP11250P HRP31250P
1 Temperature-Pressure Relief Valve 66001700 66001700 66001700 66001700
2 Primary Anode Rod 66001020 66001020 66001020 66001020
3 Drain Valve 66001015 66001015 66001015 66001015
*4 Drain Valve Washer (17/32” x 13/64” x 1/8” thick) 66001021 66001021 66001021 66001021
5 Secondary Anode Rod w/Heat traps 66001898 66001898 66001898 66001898
6 Pressure Switch 66001368 66001368 66001368 66001368
7 Power Cord 66001372 66001372 66001372 66001372
8 On/Off Switch 66001247 66001247 66001247 66001247
9 Burner Orifice (Drill Size) 66001538 66001638 66001540 66001515
10 Manifold 66001659 66001659 66001659 66001659
11 Burner 66001027 66001027 66001027 66001027
12 Outer Door 66001190 66001190 66001190 66001190
13 Inner Door 66001029 66001029 66001029 66001029
14 Gas Control Valve (Natural) 66001527 66001527 - - - - - - - - - - - - - - - -
14 Gas Control Valve (Propane{L.P.]) - - - - - - - - - - - - - - - - 66001528 66001528
15 Dip Tube 66001052 66001052 66001052 66001052
16 Flue Baffle 66001399 66001399 66001399 66001399
17 Junction Box Cover 66001899 66001899 66001899 66001899
18 Inlet Nipple w/Heat Traps 66001707 66001707 66001707 66001707
19 Pipe Insulation (2 ea.) 66001755 66001755 66001755 66001755
20 Wiring Harness 66001526 66001526 66001526 66001526
21 T & P Insulation 66001709 66001709 66001709 66001709
22 Water Heater Stand 66001243 66001243 66001243 66001243
23 Blower/ Draft Hood Ass’y 66001366 66001366 66001366 66001366
24 Venting Switch 66001367 66001367 66001367 66001367
25 3” or 2” Schedule 40 90 o Elbow - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
26 3” or 2” Schedule 40 Vent Pipe - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
27 Wall Collar 66001262 66001262 66001262 66001262
28 3” PVC Vent Terminal 66001255 66001255 66001255 66001255
29 Hot Surface Ignition Ass’y 66001525 66001525 66001525 66001525
30 Mounting Bracket 66001896 66001896 66001896 66001896
*31 Manual 66001897 66001897 66001897 66001897
PCV, ABS OR CPVC ITEMS
FOR ALL MODELS SUPPLIED
LOCALLY
