MAYTAG GAS WATER HEATERS
REPAIR PARTS LIST
MODEL NO’S
HRN11275P 75 Gallon Natural Gas
HRN31275P 75 Gallon Natural Gas
HRP11275P 75 Gallon Propane Gas (L.P.)
HRP31275P 75 Gallon Propane Gas (L.P.)
Now that you have purchased this gas water heater, should a need
ever exist for repair parts or service, simply call Maytag Customer
Service at 1-800-788-8899 for an authorized servicer. Be sure to
provide all pertinent facts when you call or visit.
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
The model number of this gas water heater will be found on the model
rating plate located near the gas control valve.
When ordering repair parts, always give the following information:
• Model number
• Serial Number
• Part Description
• Part Number
* Not Shown.

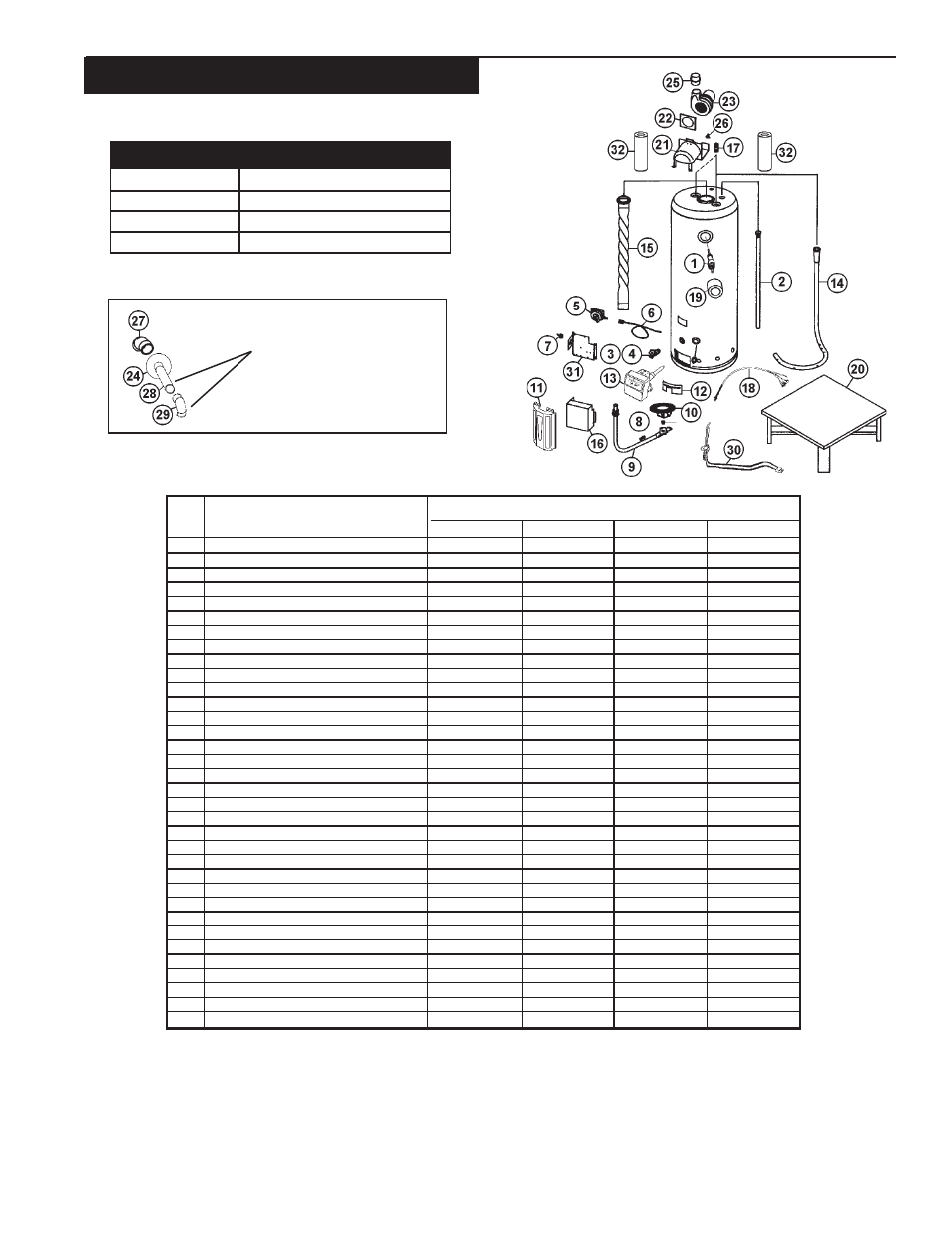

Key Model Numbers
No. Part Description HRN11275P HRN31275P HRP11275P HRP31275P
1 Temperature-Pressure Relief Valve 66001700 66001700 66001700 66001700
2 Primary Anode Rod 66001020 66001020 66001020 66001020
3 Drain Valve 66001015 66001015 66001015 66001015
*4 Drain Valve Washer (17/32” x 13/64” x 1/8” thick) 66001021 66001021 66001021 66001021
5 Pressure Switch 66001294 66001294 66001294 66001294
6 Power Cord 66001372 66001372 66001372 66001372
7 On/Off Switch 66001247 66001247 66001247 66001247
8 Burner Orifice (Drill Size) 66001900 66001901 66001902 66001903
9 Manifold 66001532 66001532 66001532 66001532
10 Burner 66001221 66001221 66001221 66001221
11 Outer Door 66001190 66001190 66001190 66001190
12 Inner Door 66001146 66001146 66001146 66001146
13 Gas Control Valve (Natural) 66001657 66001657 - - - - - - - - - - - - - - - -
13 Gas Control Valve (Propane{L.P.]) - - - - - - - - - - - - - - - - 66001658 66001658
14 Dip Tube 66001030 66001030 66001030 66001030
15 Flue Baffle 66001350 66001350 66001350 66001350
16 PV Switch Cover 66001895 66001895 66001895 66001895
17 Cold and Hot Water Nipples 66001148 66001148 66001148 66001148
18 Wiring Harness 66001526 66001526 66001526 66001526
19 T & P Insulation 66001709 66001709 66001709 66001709
20 Water Heater Stand 66001243 66001243 66001243 66001243
21 Draft Hood Ass’y 66001401 66001401 66001401 66001401
22 Gasket Blower 66001291 66001291 66001291 66001291
23 Blower 66001402 66001402 66001402 66001402
24 Wall Collar 66001262 66001262 66001262 66001262
25 Vent-Blower Adapter 66001403 66001403 66001403 66001403
26 Venting Switch 66001342 66001342 66001342 66001342
27 3” PVC Vent Terminal 66001255 66001255 66001255 66001255
28 3” or 4” Schedule 40 Vent Pipe - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
29 3” or 4” Schedule 40 90 o Elbow - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
30 Hot Surface Ignition Ass’y 66001524 66001524 66001524 66001524
31 Mounting Bracket 66001896 66001896 66001896 66001896
32 Pipe Insulation (2 ea.) 66001034 66001034 66001034 66001034
*33 Manual 66001897 66001897 66001897 66001897
PCV, ABS OR CPVC ITEMS
FOR ALL MODELS SUPPLIED
LOCALLY
