Manitowoc Ice K00385 User Manual
Page 2

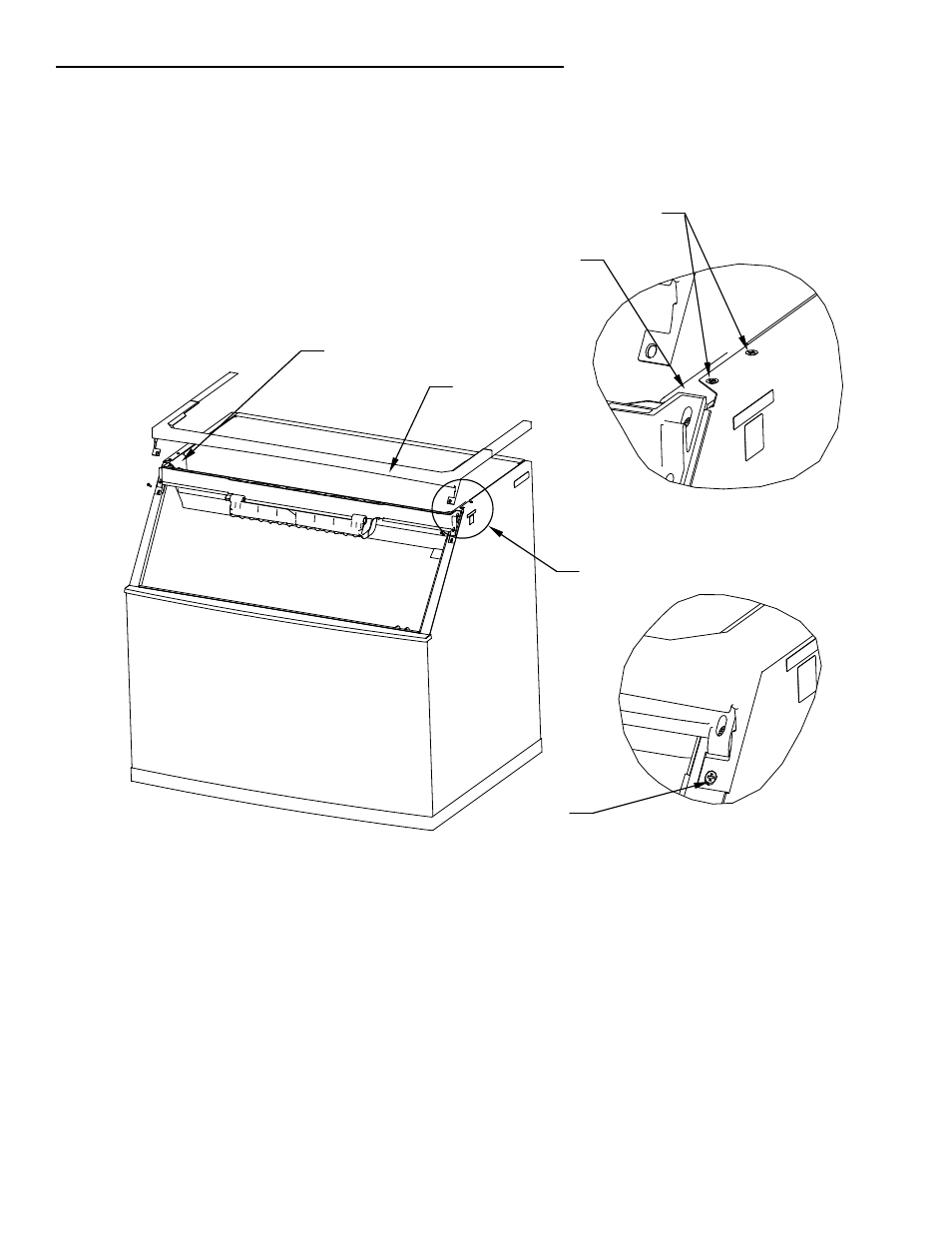

Pre-installation Instructions for Removal of Existing Plastic Deflector
1. Remove the left and right side cover screws (see View A).
2. Remove the cover to expose the four screws that secure the plastic deflector (see Detail B).
3. Take out the four screws. Remove the plastic deflector, replace with a polymer spacer on each side and secure with
the four screws.
4. Reinstall the cover and proceed with the installation instructions.
000002544
Sheet 2 of 3
06/13/07
Plastic Deflector
Cover
Plastic Deflector
Screws
See Detail B
Detail B
View A
Cover Screw
