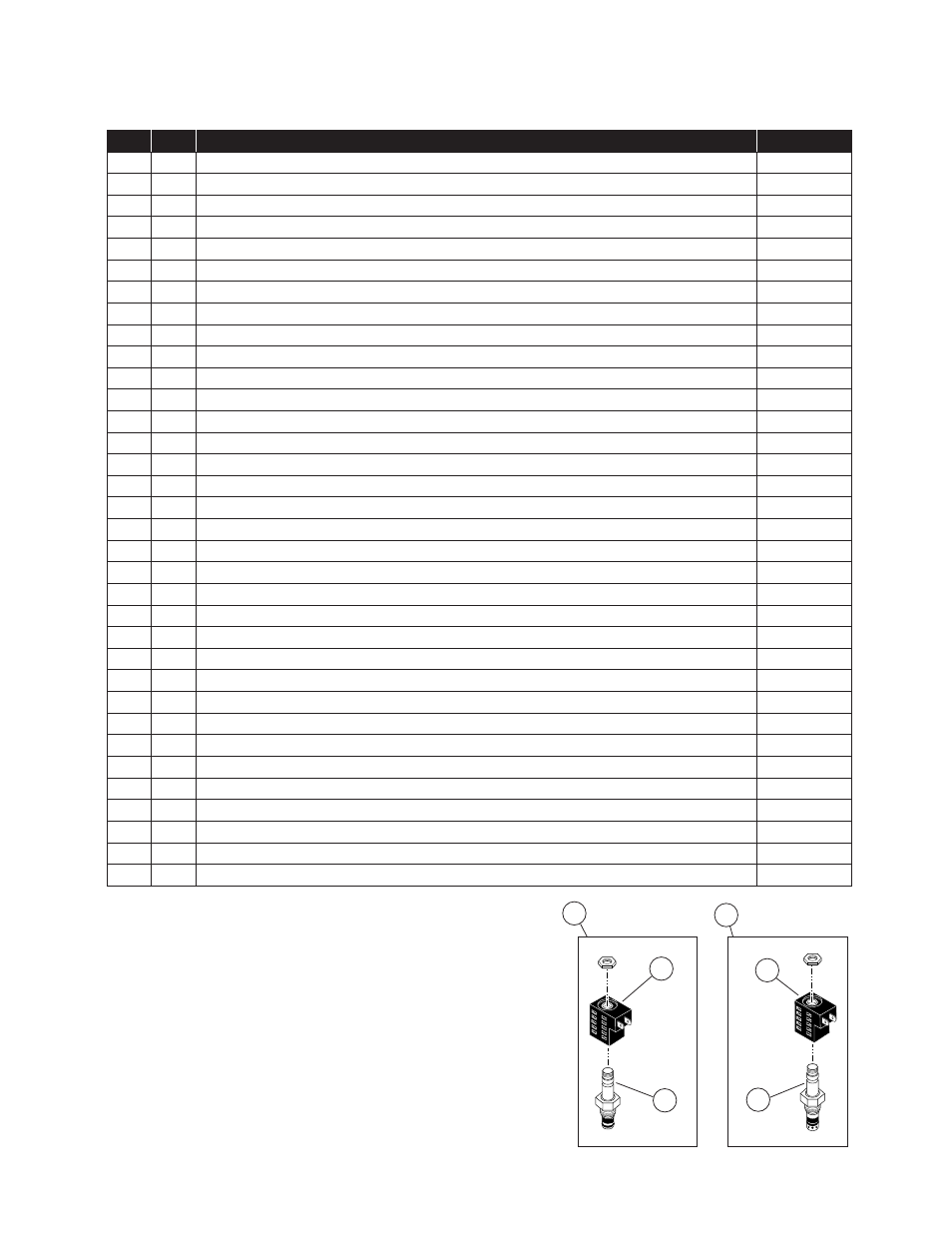

Hydraulics Parts List
Item Qty.
Description
Part #
1
1
Pump Assembly (M268-0113)12V - with Reservoir/with Backup Pump)
31038-12V
2
1
Solenoid, 4-Post (See Pump Module Exploded View for Solenoid Selection)
3
1
Power Cable, Up Solenoid to Motor
29049
4
1
Motor, Pump - 12 Volt - Low RPM
31350
5
1
Elbow, 65° - Male 7/16-20 SAE O-Ring to 7/16-20 SAE O-Ring Boss
26578
6
2
Valve Assembly, “Down / Bridge” (complete)
31348K
7
3
Coil (only), “Down / Bridge” Valve - (shown below)
31122
8
2
Cartridge (only), “Down / Bridge” Valve - (shown below)
26078
9
1
Valve Assembly, “Duel Relief” (complete)
31120K
10
1
Cartridge (only), “Duel Relief” Valve - (shown below)
31121
11
1
Cap, Reservoir Filler
16935
12
4
O-Ring (only), Hand Pump Mounting
17351
13
1
Hand Pump (Backup) with O-Rings (Item 12)
26074
14
3
Screw, 1/4-20 x 2-1/4”, Allen Head
26080
15
1
Clamp, Reservoir - H-48 (M259)
17069
16
1
Reservoir, Hydraulic Fluid
16934
17
1
Fitting, 90° - 1/8” NPT x 1/8” Barb - Plastic
87563
18
1
Switch, Pressure, 7/16-20 SAE O-Ring Male
31199
19
2
Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37°
24504
20
1
Elbow, (1) Female 7/16-20 JIC 37 Swivel - (2) Male 7/16-20 JIC 37°
26579
21
1
Hose Assembly, 1/8” (Opposite Pump Side)
16004A-086
22
1
Hose Assembly, 1/8” (Pump Side)
16004A-046
23
2
Elbow, 90°, 7/16-20 SAE O-Ring Male - 7/16-20 JIC 37° Male, Orifice 26667
24 2
Cylinder
u
C1514.3-9408
25
3
Elbow, 90°, 1/4” NPT Male to 1/4” Barbed
15150
26
1
Hose, Thermal Plastic - Black, 1/8” I.D.
23742R*
27
2
Connector, Plastic “Y”, 1/8” O.D.
18877
28
1
Hose Assembly, 3/16” w/Two Guards
915-2601-136
29
1
Fitting, 90° - Male 9/16-18 SAE O-Ring to Male 7/16-20 JIC 37°
87622
30
1
Cylinder, Roll Stop (Contains Items 25 & 30)
25309-05A
31
1
Handle with Grip
17206A
32
1
Diode Assembly, Up Solenoid
73906A
u Seal Kits: If repairing a cylinder, order Seal Kit #1500-0500P.
* Raw material items ordered and priced per inch (order specified length).
10
Cartridge
#26078
7
“Down and Bridge”
Valve (complete)
8
Cartridge
#24612
7
“Duel Relief”
Valve (complete)
6
Coil
#31122
Coil
#31122
9
