INST70-2054
8
CHEVROLET
- Trailblazer 2002-04 w/ RPO code UQA
- Trailblazer EXT 2003-04 w/ RPO code UQA
GMC
- Envoy 2002-04 w/ RPO code UQA
- Envoy XL 2002-04 w/ RPO code UQA
- Envoy XUV 2004 w/ RPO code UQA
ISUZU
- Ascender 2003 w/ RPO code UQA
OLDSMOBILE
- Bravada 2002-04 w/ RPO code UQA
NOTE
These wire colors do not follow the EIA/Metra color code

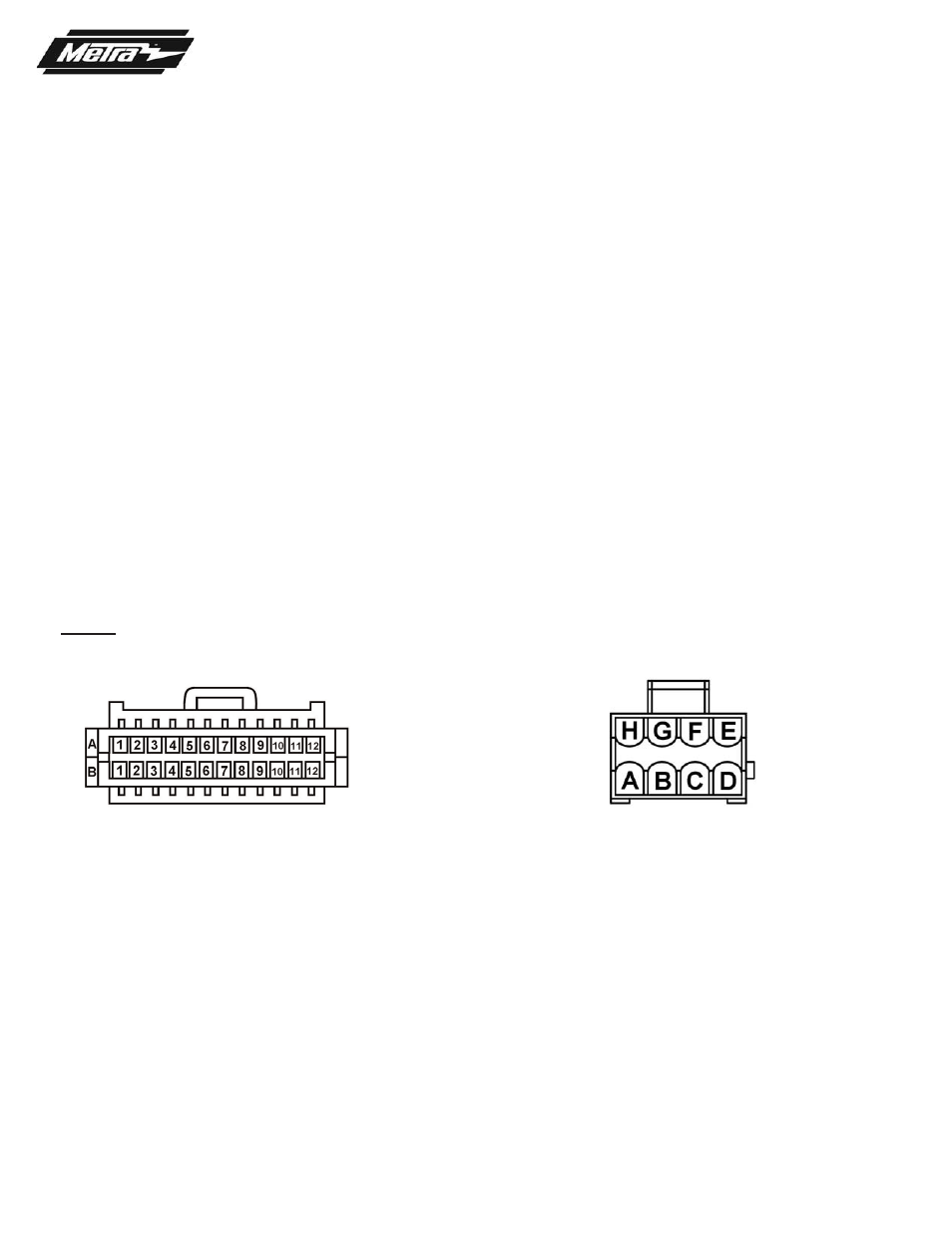

A1 Not Used
A2 White/Red Left Rear Speaker (+)
A3 White/Blue Left Rear Speaker (-)
A4 Red Left Dash Speaker (+)
A5 Orange Left Dash Speaker (-)
A6-A7 Not Used
A8 Dark Blue Right Dash Speaker (-)
A9 Brown/White Right Dash Speaker (+)
A10 Brown Right Rear Speaker (-)
A11 Blue Right Rear Speaker (+)
A12 Not Used
B1-B12 Not Used
A-B Not Used
C Violet Right Front Speaker (-)
D Pink Left Front Speaker (+)
E Light Green Left Front Speaker (-)
F Dark Blue/Pink Right Front Speaker (+)
G-H Not Used
