Metra Electronics 70-2054 User Manual
Page 10
INST70-2054
5
CHEVROLET
- Avalanche 2003-04 w/ RPO code UQ7 w/o Y91
- Silverado 2003-04 w/ RPO code UQ7 w/o Y91
- Suburban 2003-04 w/ RPO code UQ7 w/o Y91
- Tahoe 2003-04 w/ RPO code UQ7 w/o Y91
GMC
- Sierra 2003-04 w/ RPO code UQ7 w/o Y91
- Yukon/XL 2003-04 w/ RPO code UQ7 w/o Y91
HUMMER
- H2 2004 w/ RPO code UQ7 w/o Y91
NOTE
These wire colors do not follow the EIA/Metra color code

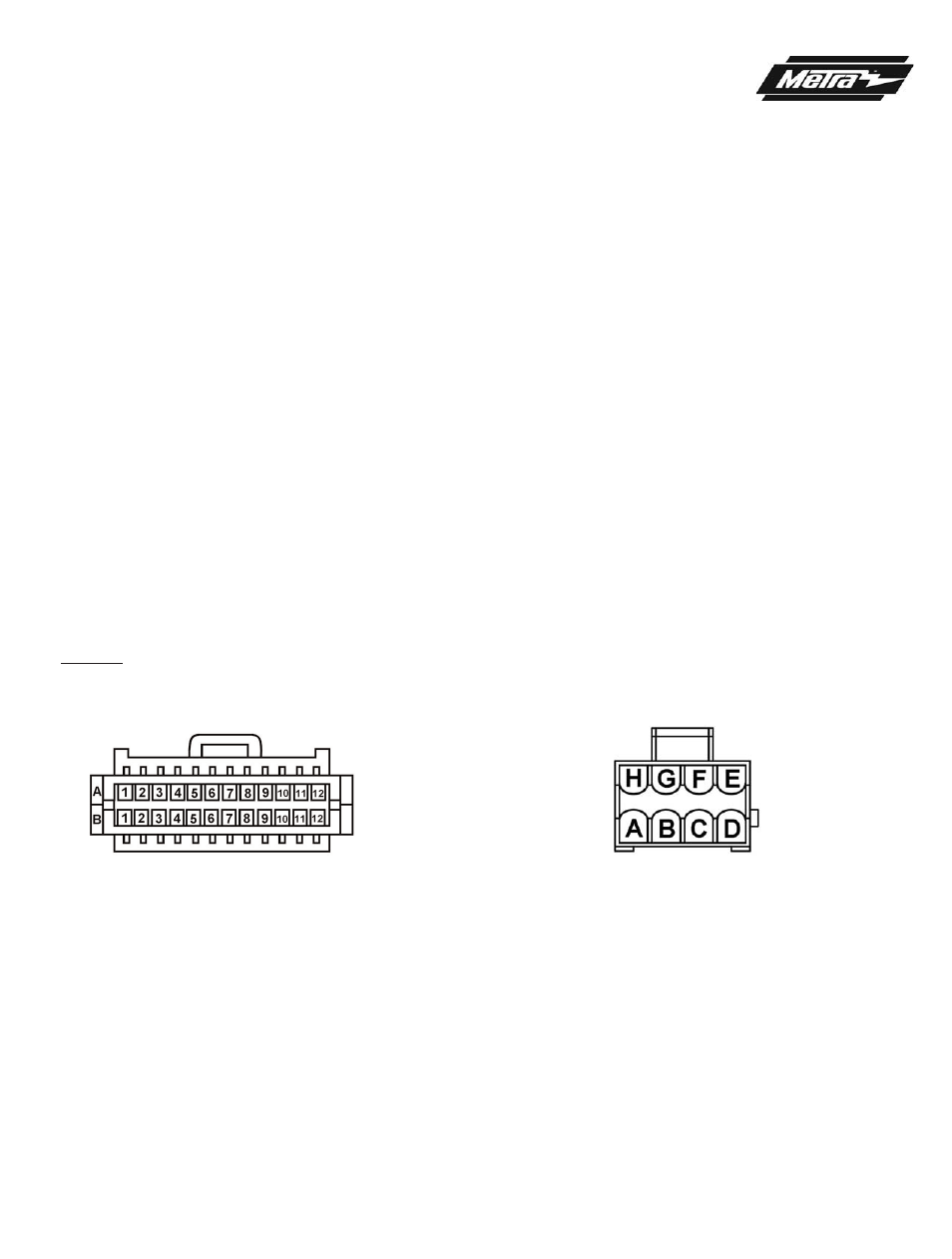

A1-A4
Not Used
A5 Orange
Left Rear Speaker (+)
A6 Gray
Left Rear Speaker (-)
A7 Dark Blue/White Right Rear Speaker (+)
A8 Dark Blue
Right Rear Speaker (-)
A9 Brown/White
Left Front Speaker (+)
A10 Brown
Left Front Speaker (-)
A11 Blue
Right Front Speaker (+)
A12 Yellow
Right Front Speaker (-)
B1-B12
Not Used
A
Not Used
B White
Left Sub (+)
C Violet
Right Sub (+)
D-E
Not Used
F Dark Blue/Pink
Right Sub (-)
G Brown/Yellow
Left Sub (-)
H
Not Used
