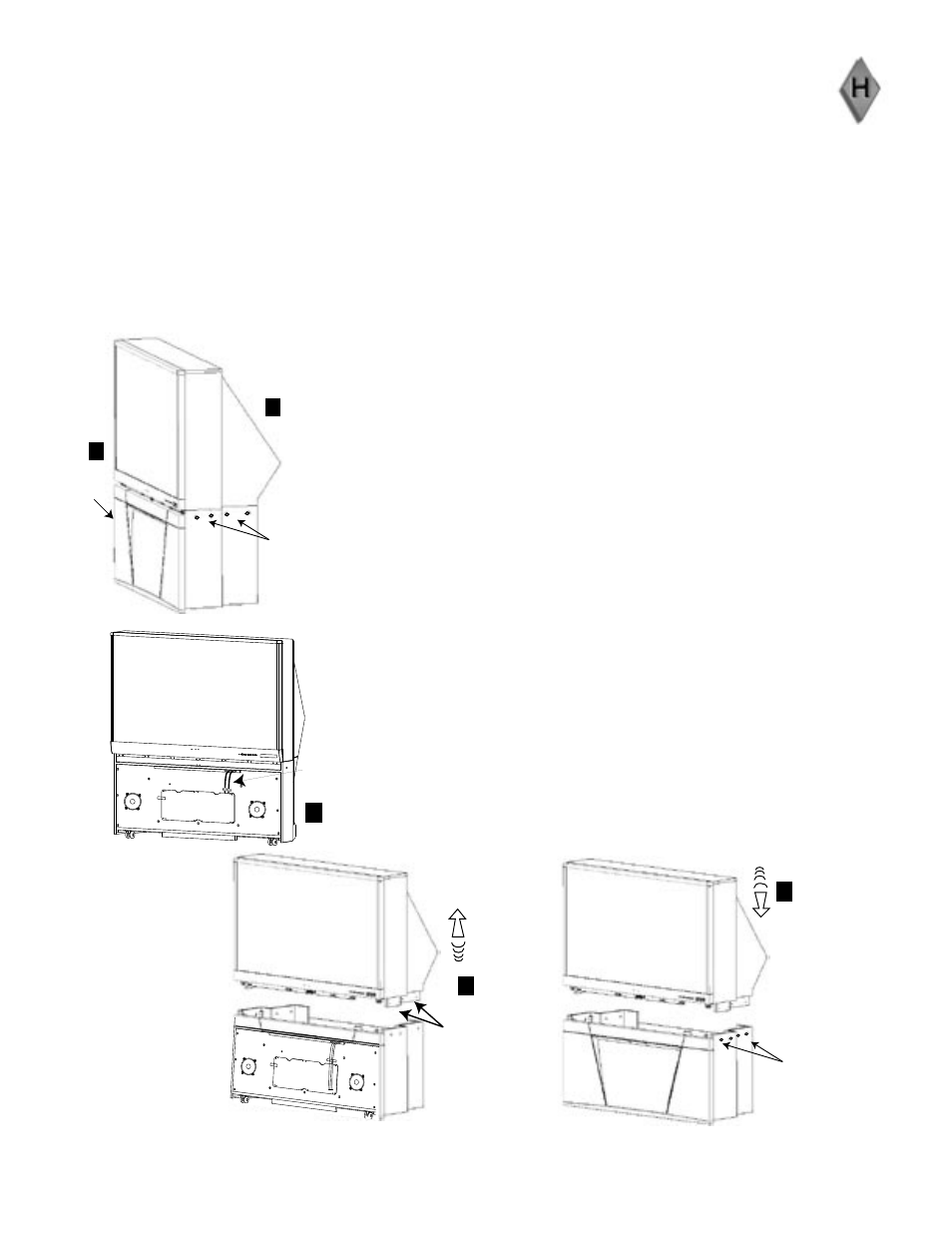

Appendix H: Cabinet Separation for Models
WS-65515, WS-65515A, WS-65615, WS-65615A, WS-73615
The following operations should be performed by two
people:
1. Remove the decorative Plastic Covers (2 or 4) on each side
of the cabinet and then remove the exposed screws (2 or 4)
on each side.
2. Remove the Speaker Grille by pulling straight off the cabinet.
3. Disconnect the connectors.
4. Carefully lift the Cabinet-Top straight up until the
brackets are clear from the Cabinet-Bottom. DO NOT
use the Screen Frame bottom when lifting the Cabinet-Top.
5. Carefully place the Cabinet-Top on to the floor.
6. Once you have moved and positioned the Cabinet-Bottom
to its desired location, reverse the procedure and mount the
Cabinet-Top on the Cabinet-Bottom. Be sure you align the
brackets properly. Keep fingers clear of all joints! Replace
the screws and the decorative Plastic Covers that were
removed in Step 1.
For Mitsubishi Dealers and Service Personnel Only
The cabinets for Mitsubishi projection television models WS-65515, WS-65515A, WS-65615,
WS-65615A and WS-73615 have been assembled in two pieces. These pieces may be separated
to allow for easier delivery and setup. To safely separate and reattach the cabinet, follow the
instructions below.
This projection television weighs over 320 pounds and has many sensitive components. Any
dismantling procedure should be done by authorized Mitsubishi Dealers or Service Personnel
ONLY.
b
Plastic
Covers,
Screws
1
Speaker
Grille
2
3
Connectors
(CC, ZF)
Cabinet-Bottom
Cabinet-Top
Brackets
Screen Frame
4
6
Plastic
Covers,
Screws
