3
4 Operational Setup
1. Unpack the V-RD171P-HDA and accompanying power supply. Physically inspect for any damage that may have occurred
during shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not
located within the continental United States call +1 310-333-0606.
2. Install in your desired location.
3. Connect required cables for signal input and output.
4. Attach power connector from power supply to the back of the unit.
5. Plug the power supply into the A.C. source
6. Turn on the V-RD171P-HDA by pressing the power switch located on the front of the unit.
Refer to picture below for location of switch settings.
7. Perform input selections and screen adjustments as detailed in the following sections of this document.
Marshall Electronics
12 VDC from
power supply
DVI-D in

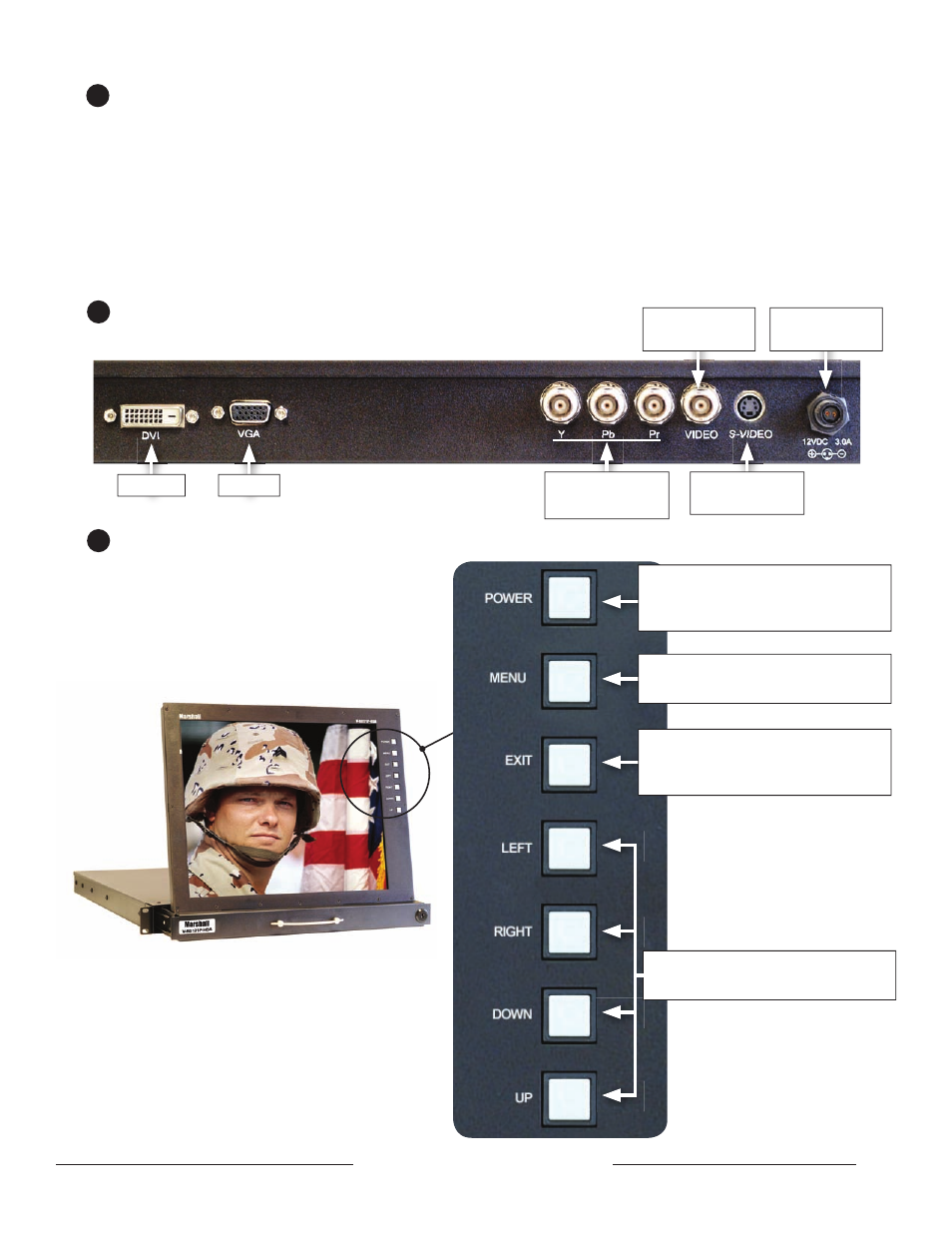

5 Connectors
VGA in
6 Front Panel Indicators and Controls
S-Video
75Ω Terminated
Component Video
75Ω Terminated
Composite Video
75Ω Terminated
Power On/Off selection button
Illuminates bright red when power is applied.
Turns dim red when monitor is switched on
Dual Function EXIT button
1- Cycles Input selection
(Selection Displayed lower right of screen)
2- Exits OSD Menu Mode
On Screen Display (OSD)
MENU Activation Button
UP / DOWN / LEFT / RIGHT
menu selections for OSD functions
