• SXGA Resolution 1280 x 1024 pixels, 1.3 million total RGB pixels produce 16.7 million colors
• Bright 300 candle luminance
• 500:1 Contrast ratio
• Ultra-compact design fits in EIA standard rack 1U high
• Automatic Gamma Correction
• 16:9 or 4:3 aspects
• 4 Preset color temperatures
• NTSC/PAL operation
• 170
° CRT style viewing angles
• Picture In Picture
• Key lock for secure transportation
1
Product Overview
The V-RD171P-HDA is a rack-mounted monitor in a drawer with a 17”, 5:4 aspect ratio active matrix LCD/TFT
module and is designed to collapse into an EIA standard 19” rack and occupies 1RU high (1.75-inch) space when
not in use. The display will produce a high-resolution 1280H x 1024W SXGA image from a computer or display
scaled video images. Component video, Composite video or Y/C (S-video) images are displayed via a scaling
chip with a separate DVI-D and VGA inputs for video or computer. For ease of operation the V-RD171P-HDA
includes front mounted selector buttons for menu operations with On Screen Menu Display (OSD). When the
display is closed into the drawer, a keyed lock is provided for secure transport. A U.L. Class 2 power supply is
included and the unit is factory ready for rack mount installation.
2 Features
2 5 V-RD171P-HDA Users Guide V-RD171P-HDA Users Guide
Marshall Electronics
3 Specifications
Display (Viewing Area) 17” (13.30” × 10.64”) (337.92mm x 270.34mm)
Screen Format 5:4
Resolution (Dots) 1280H x 1024V
Dot Pitch 0.264 square pixel
Screen Treatment Anti-Glare and Anti-scratch Hard Coat
Brightness (in cd/m²) 300 cd/m²
Pixel Response 13ms Maximum - Black to White to Black (3ms rise, 10 ms decay)
Viewing Angle 75° to 85° From Center
Backlight CCFL 50,000 hour
Contrast Ratio 500:1
System NTSC / PAL
Inputs
1 S-Video (4 Pin Mini Din), 1 Composite (BNC), 1 SXGA (15P HD-15),
Component Video (3 BNC), DVI-D (Digital only)
Dimensions (open) 14.1”H x 19”W x 25.6”D
Approx. Weight 28.5 Lbs
Power Consumption 12 VDC from included power supply (70Watt Max)
Operating Temperature 0°C to 50°C (Storage -20°C to +60°C)

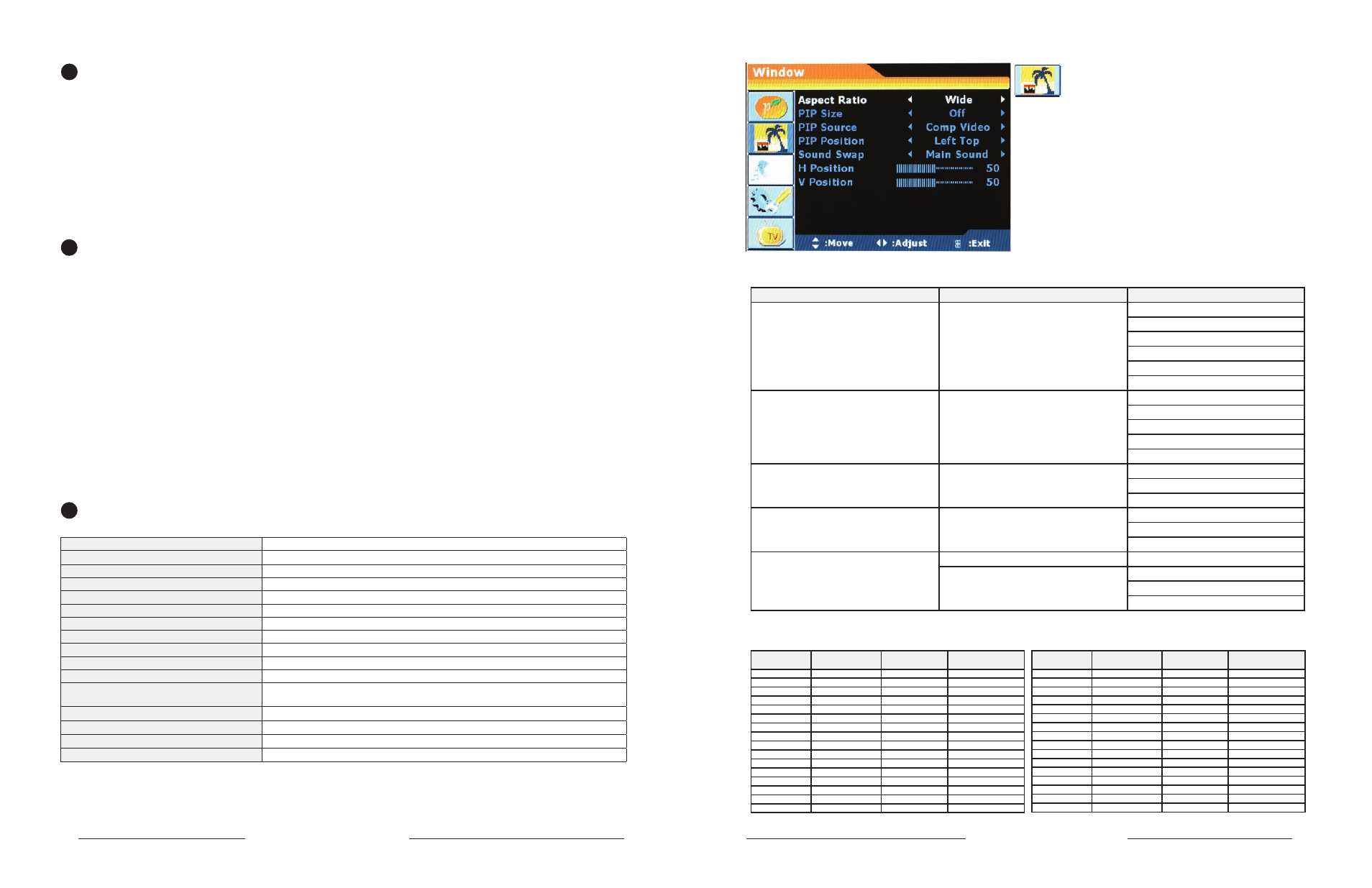

Use UP/DOWN/LEFT/RIGHT buttons to select function.
ASPECT RATIO -
Select Fill All to place image on the entire screen.
All video images will appear distorted
Select WIDE for 16:9 Aspect
Select ZOOM 1 or ZOOM2 for different zoom option
PIP FUNCTIONS - Used with PC/DVI/DTV selected as
source to add a window for video input. (PIP SOURCE)
WINDOW
Resolution H Frequency
( kHz )
V Frequency
( Hz )
Pixel Frequency
( MHz )
640x400 37.861 85.08 31.5
640x350 31.469 70.087 25.175
640x350 37.861 85.08 31.5
640x480 31.469 59.94 25.175
640x480 35.000 66.667 30.24
640x480 34.940 69.884 28.513
640x480 37.861 72.809 29.765
640x480 37.500 75.0 31.5
640x480 43.269 85.008 36.0
720x400 31.469 70.087 28.322
720x400 37.927 85.039 35.5
800x600 35.156 56.25 36.0
800x600 37.879 60.317 40.0
800x600 43.764 70.02 45.513
800x600 48.077 72.188 50.0
800x600 46.875 75.0 49.5
PC Formats supported from VGA and DVI connectors
Resolution H Frequency
( kHz )
V Frequency
( Hz )
Pixel Frequency
( MHz )
640x400 37.861 85.08 31.5
640x350 31.469 70.087 25.175
640x350 37.861 85.08 31.5
640x480 31.469 59.94 25.175
640x480 35.000 66.667 30.24
640x480 34.940 69.884 28.513
640x480 37.861 72.809 29.765
640x480 37.500 75.0 31.5
640x480 43.269 85.008 36.0
720x400 31.469 70.087 28.322
720x400 37.927 85.039 35.5
800x600 35.156 56.25 36.0
800x600 37.879 60.317 40.0
800x600 43.764 70.02 45.513
800x600 48.077 72.188 50.0
800x600 46.875 75.0 49.5
800x600 53.674 85.061 56.25
1024x768 48.780 60.001 64.11
1024x768 48.363 60.004 65.0
1024x768 56.476 70.069 75.0
1024x768 57.703 72.039 78.476
1024x768 60.030 75.029 78.75
1024x768 68.677 84.997 94.5
1280x720 47.760 60.0 74.481
1280x768 47.700 60.0 80.136
1280x768 60.150 75.0 102.977
1280x960 60.000 60.0 102.104
1280x960 59.640 60.0 102.104
1280x1024 63.337 59.978 108.18
1280x1024 63.981 60.02 108.0
1280x1024 64.754 60.06 108.992
1280x1024 63.600 60.0 108.883
Resolution H Frequency
( kHz )
V Frequency
( Hz )
Pixel Frequency
( MHz )
Inputs Specifi cations
Input Signals Specifi cation
VGA in Analog PC
H Frequency Range: 20 ~ 82 kHz
V Frequency Range: 55 ~ 90 Hz
Maximum Resolution: 1280x1024 75Hz
Maximum Pixel Rate: 135 MHz
DTV mode support: 720p/60, 1080i/60
Separate / Composite SOG sync support
DVI in Digital PC (DE Mode)
H Frequency Range: 20 ~ 82 kHz
V Frequency Range: 55 ~ 75 Hz
Maximum Resolution: 1280x1024 75Hz
Maximum Pixel Rate: 135 MHz
DTV mode support: 720p/60, 1080i/60
Video in CVBS
NTSC-M
PAL-B/G/H/I
SECAM
S-Video in Y/C
NTSC-M
PAL-B/G/H/I
SECAM
Component Video in
YPbPr
DVD Component 480i/60, 480i/50
DTV Component
1080i/60
720p/60
480p/60
