Onyx 1640 Computer Recording
Stereo Compressor
Mono Compressor
Multi Effect
Processor
Keyboard or other
line level input
Stereo Guitar Effects
Drum
Machine
Bass Guitar Electric Guitar
Electric Guitar
Vocal Mics
Digital Delay
Powered
Studio Monitors
for Control Room
Headphones
Powered
Studio Monitors
for Studio
Out
In
Out
In
Out
In
Audio I/O for Workstation
To Desktop
or
Laptop Computer
7
8
6
8
8
7
6
7
5
6
5
3
4
2
1
15
16
14
13
11
12
10
9
5
4
4
3
2
3
1
2
1
16
16
15
14
15
13
14
13
12
12
11
10
11
9
10
9 1
2
L
R
L
R
3
4
L
R
L
R
CHANNEL INSERTS
CHANNEL INPUTS
AUX RETURNS
MONO OUT
PHONES
OUT
AUX SEND
3
4
5
1
2
6
L
R
L
R
IN-TAPE-OUT
MAIN OUT
CNTRL ROOM
OUTPUTS
MAIN OUT
RECORDING OUT
9-16
RECORDING OUT
1-8
L
R
MAIN
INSERTS
L
R
SUB OUT
3
4
1
2
FIREWIRE
(OPTION)

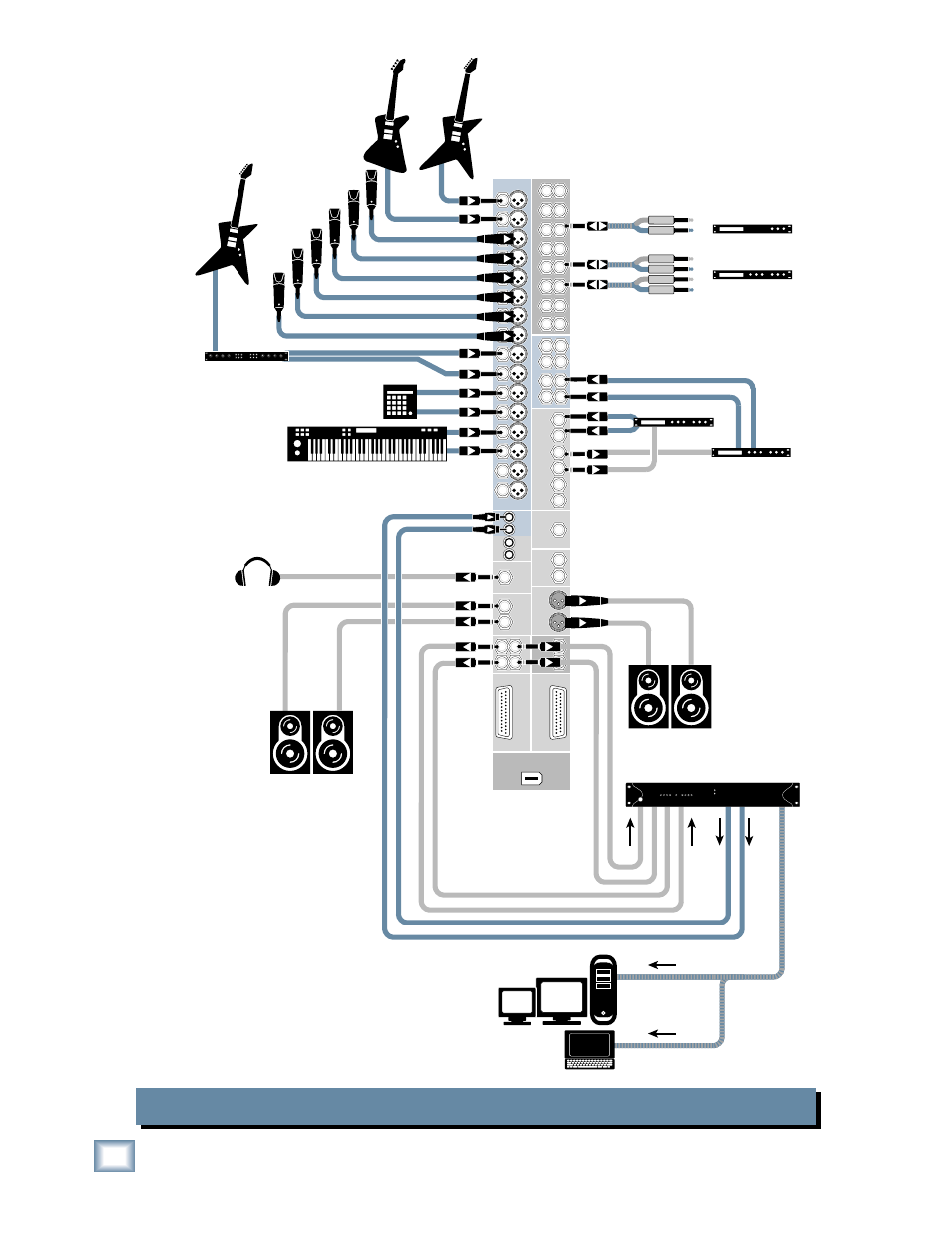

In this hookup diagram, the tracking channels are
routed to the SUB 1-4 OUT. These are connected to
the analog audio interface to your DAW or laptop.
A 2-track return is provided by the DAW (or laptop)
to the TAPE IN on the Onyx 1640 for playback of
the master mix.
