A complete Parts List is available at www.MillerWelds.com
OM-232 386 Page 21

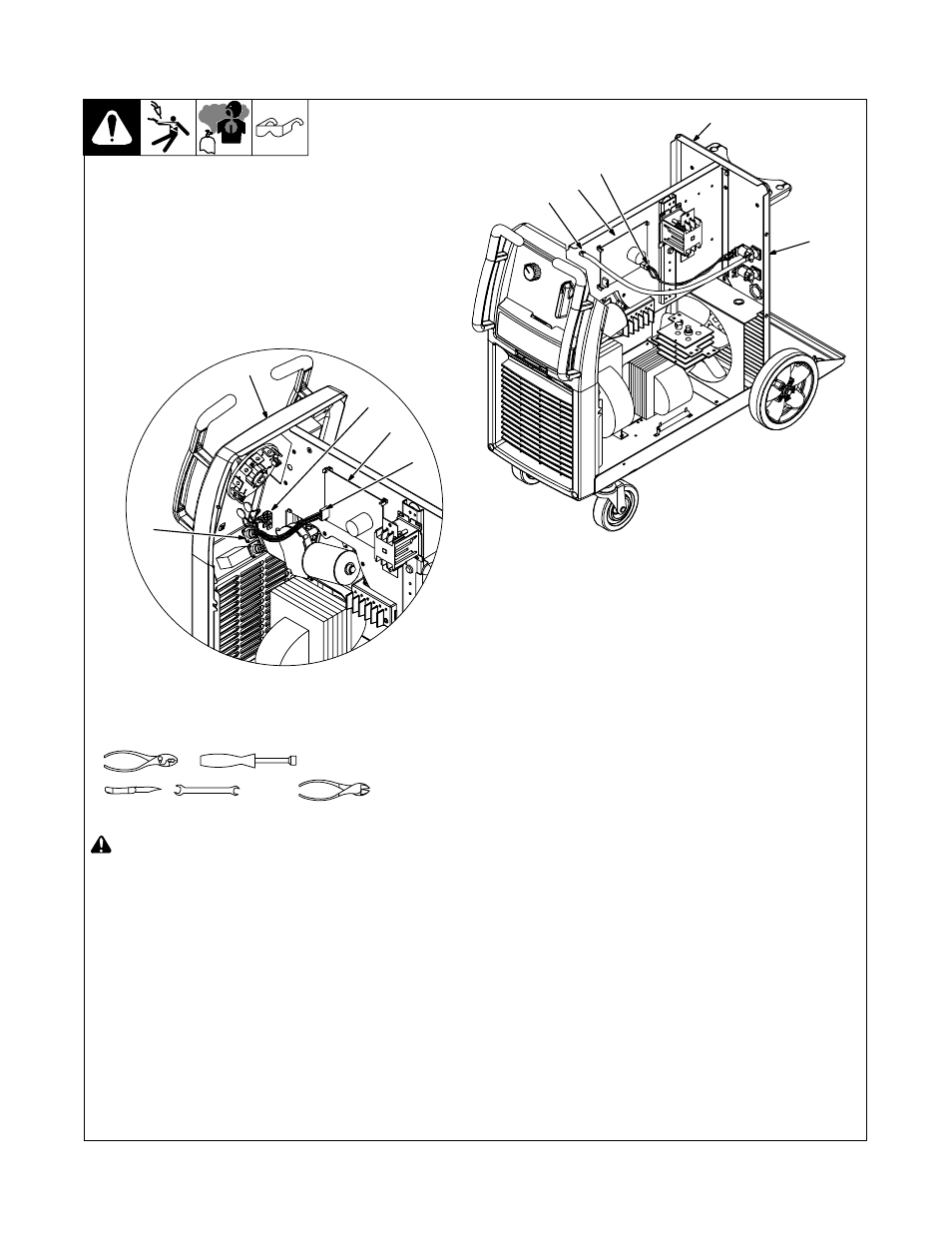

4-14. Installing Optional Gas Valve, Receptacle, And Barbed Fitting For Optional Spool
Gun
Tools Needed:
! Turn Off unit, and disconnect input
power.
Remove wrapper.
1 Rear Panel
2 Snap-in Blank Location
3 Center Baffle Barbed Fitting Hole
Location
4 Front Panel
5 Center Baffle Ground Clip
6 Circuit Board PC1
7 Receptacle RC1
8 Receptacle RC2
Remove snap-in blank from rear panel, and
install supplied gas valve.
Connect plug from gas valve wiring
harness into receptacle RC1.
Install supplied barbed fitting into center
baffle hole. Connect gas hose between gas
valve and barbed fitting. Secure with hose
clamps.
Remove snap-in blank from front panel,
and Install supplied 4-position receptacle.
Connect plug from 4-position receptacle
wiring harness into receptacle RC2.
Connect capacitors to center baffle ground
clip.
Reinstall wrapper.
1
2
3
8
5
7
1/4 in
9/16 in
4
2
6
6
804 990-A
