Chapter 1: Introduction
3
About Your PCI Adapter
Your PCI adapter is installed in a standard PCI slot inside your
computer, secured by a metal mounting bracket. The following

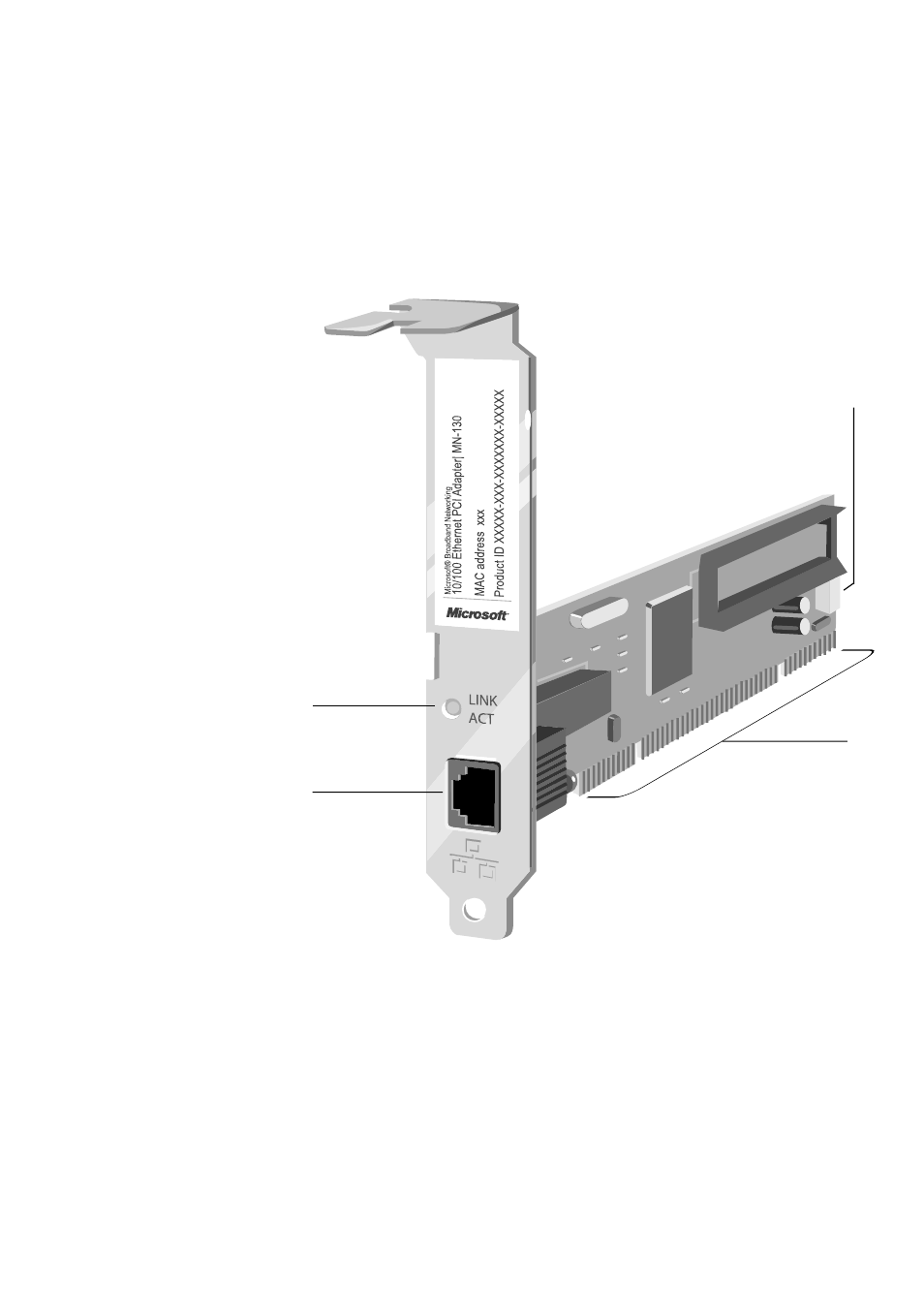

diagram shows the layout of the adapter and the location of the
Ethernet port, status indicator light, and Wake-On-LAN connector.
Link/Activity
Light
Ethernet
Port
PCI Connector
Wake-On-LAN
Connector
Mounting Bracket
PCI Adapter
