Memorex MC2864 - Manual (Page 6)

24 23 25 26 28 29 30 31 27
5

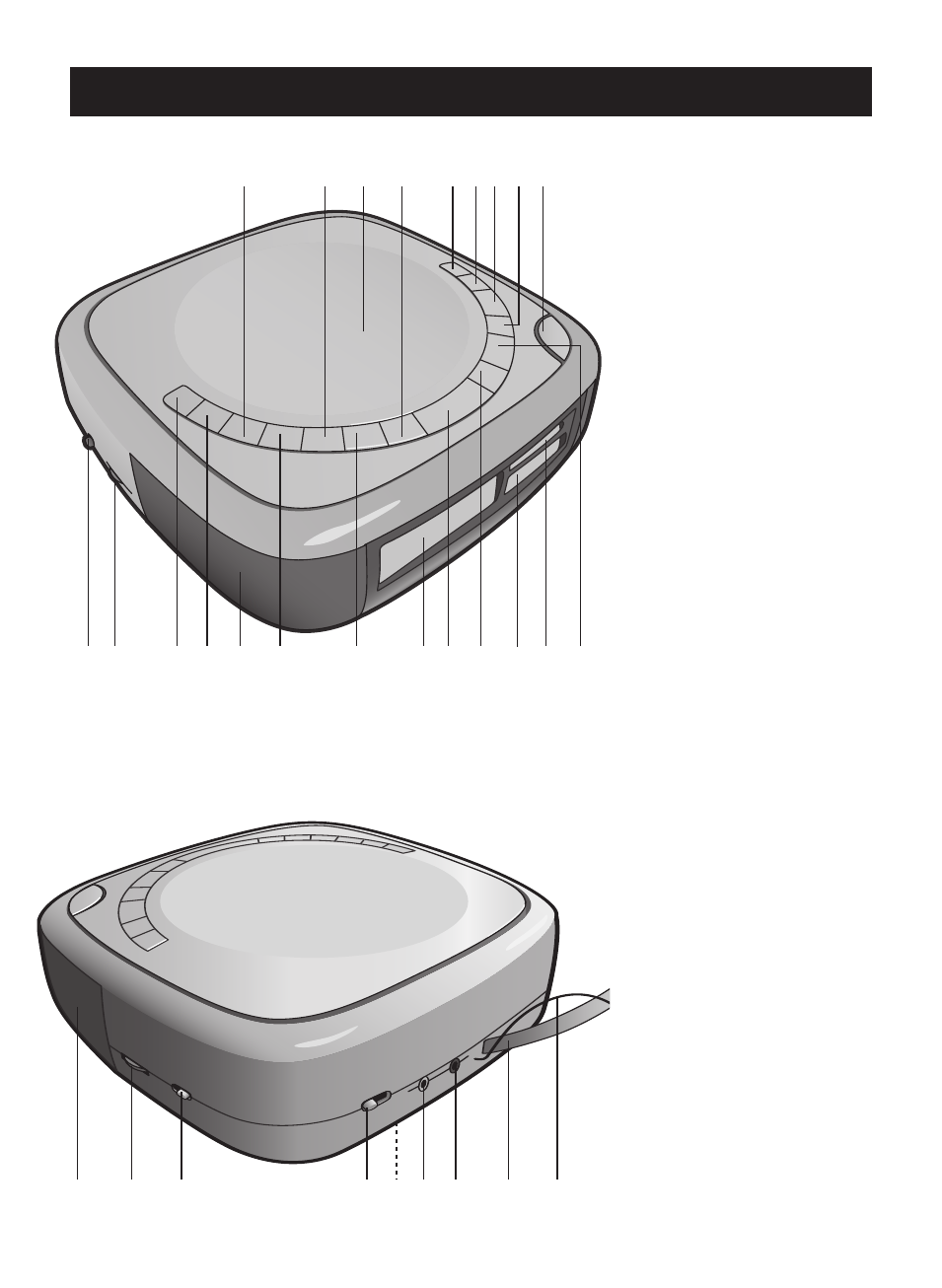

LOCATION OF CONTROLS
12 13 10 11 14 15 17
2
20 21 22 16 19 18
1 4 5 6 7 8 9 3
1. FUNCTION Button
2. TIME Button
3. CD Compartment
4. ALARM 1 Button
5. STOP (■) Button
6. SKIP/SEARCH l Button
7. Play/Pause (®p) Button
8. SKIP/SEARCH m Button
9. OPEN Button
10. DIMMER Switch
(LOW/HIGH)
11. VOLUME Control
12. POWER Button
13. REPEAT Button
14. Left Speaker
15. ALARM MODE Button
16. SLEEP Button
17. Display
18. SNOOZE Button
19. ALARM 2 Button
20. Alarm 2 Display
21. Alarm 1 Display
22. PROGRAM Button
23. Right Speaker
24. TUNING Control
25. Band Switch
(AM/FM/FM ST.)
26. NATURE SOUND Switch
27. Battery Door/
Compartment (Bottom
of Unit)
[Door Part No. 0210-
0286400-0000*]
28. AUX IN Jack
29. Headphones Jack
30. AC Cord
31. FM Antenna Wire
*Consumer Replaceable Part
(See page 23 to order.)
FRONT-LEFT
REAR-RIGHT
