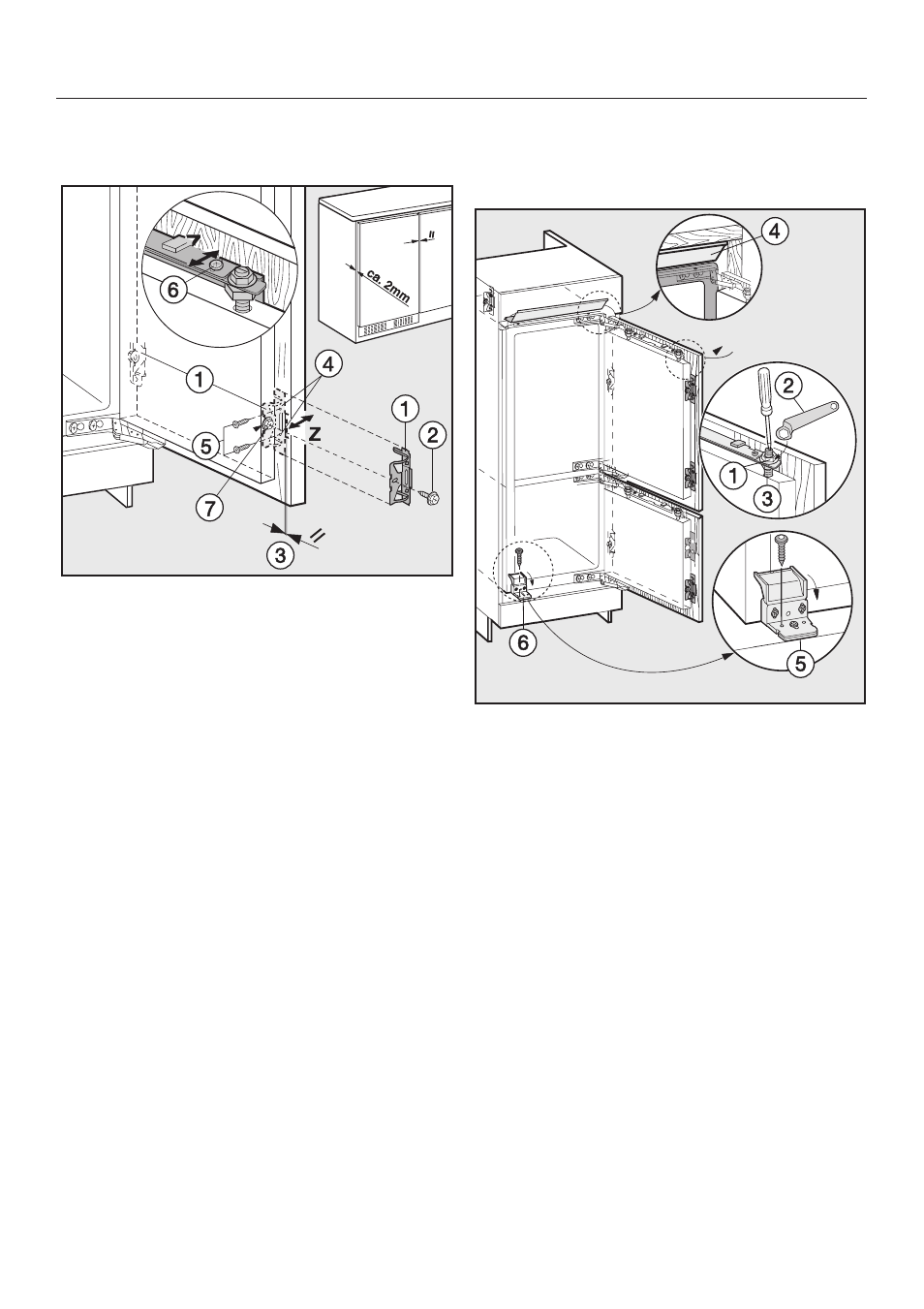

Securing the appliance doors to the
furniture doors:
^ Screw each of the fixing brackets a
supplied into the pre-drilled holes in
the appliance door using hexagonal
screw
b.
Make sure the two metal edges
c
are aligned (Symbol II ).
^ Drill fixing holes d, and screw in the
4 x 14 mm screws
e.
(With large furniture doors, attach a
second pair of fixing brackets
a in the
handle region of the doors. Use the
pre-drilled holes in the appliance
doors.)
– Align depth "Z" on the furniture door:
Loosen screws
f at the top of the
appliance doors, and loosen the
hexagon-headed screw
g at the
bottom of the fixing bracket. By
moving the furniture doors, create a
gap of 2 mm between the furniture
door and the front edge of the niche.
^ Close both of the doors, and align
them with the neighbouring furniture
doors.
^ Whilst counterholding adjusting bolts
c with a screwdriver, tighten nuts a
on the appliance doors with ring
spanner
b.
^ Cover strip d must be completely
hidden in the niche, and must not
protrude.
^ Tighten all screws once again.
^ Secure the appliance one more time
using screw
f through the round
hole in the plastic bracket
e.
^ Close the plastic bracket.
