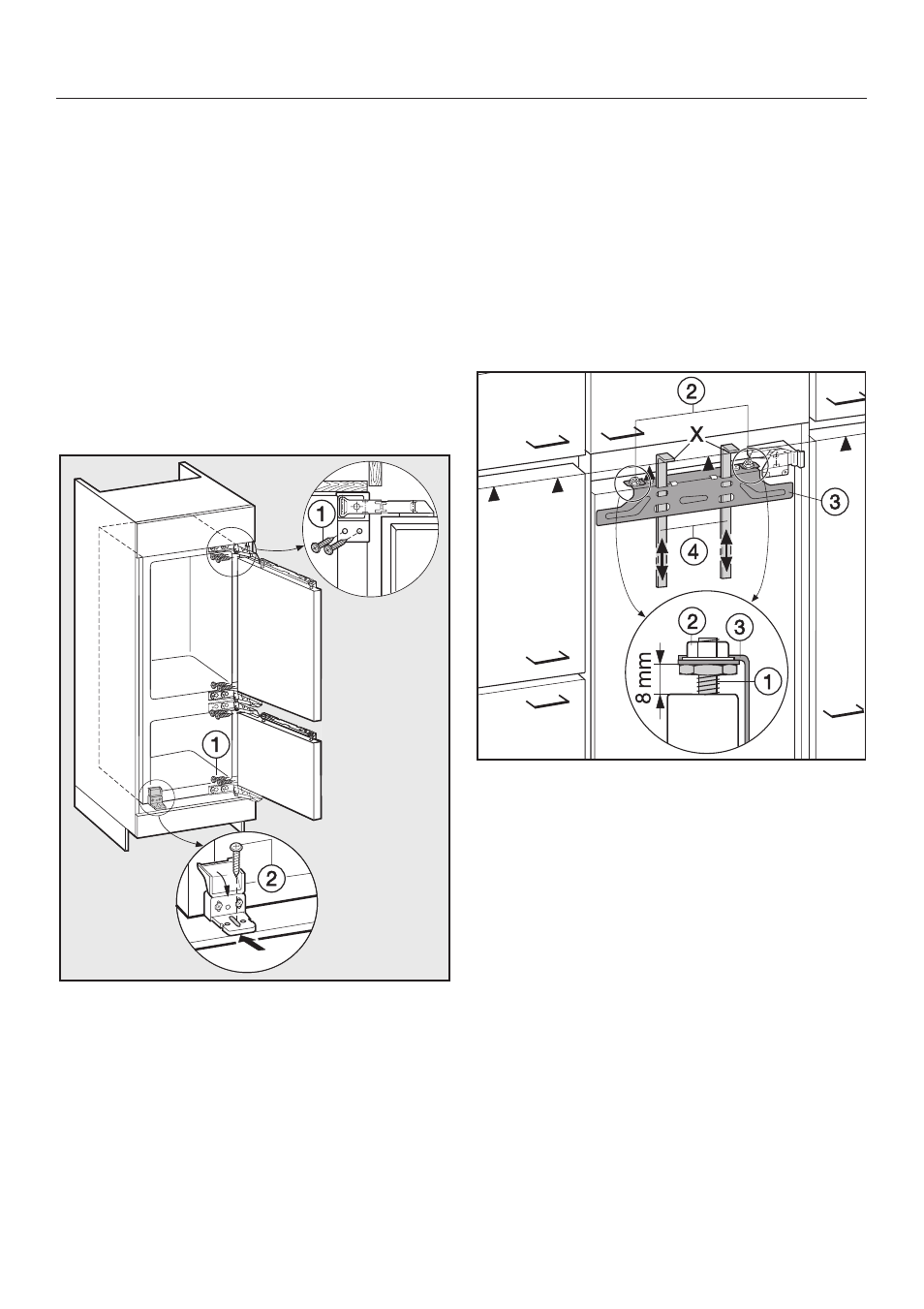

^ Then align the appliance front to the
front edges of the side walls of the
housing unit.
^ Secure plastic bracket d to the side
opposite the hinges using the M5 x
22 screws
e.
^ Push the appliance in until the plastic
bracket is flush with the front edge of
the housing unit floor
f.
Securing the appliance
^ To fix the appliance to the housing
unit at the top and bottom:
– screw the long 4 x 19 mm chip board
screws
a into all of the hinge plates,
– open the plastic bracket, and screw a
long chipboard screw
b (4 x 19 mm)
through the middle of the long hole in
the plastic bracket.
^ Close the plastic bracket.
^ Close the appliance doors.
Fitting the furniture doors
^ A gap of 8 mm a must be set
between the appliance door and the
fixing bracket.
^ Push fitting aids d up to the height of
the furniture door: the lower edge "X"
of the fitting aids must be at the same
height as the upper edge of the
furniture door being fitted (see
- on
the diagram).
^ Undo nuts b, and take fixing bracket
c off together with the fitting aids.
Building in the appliance
