6

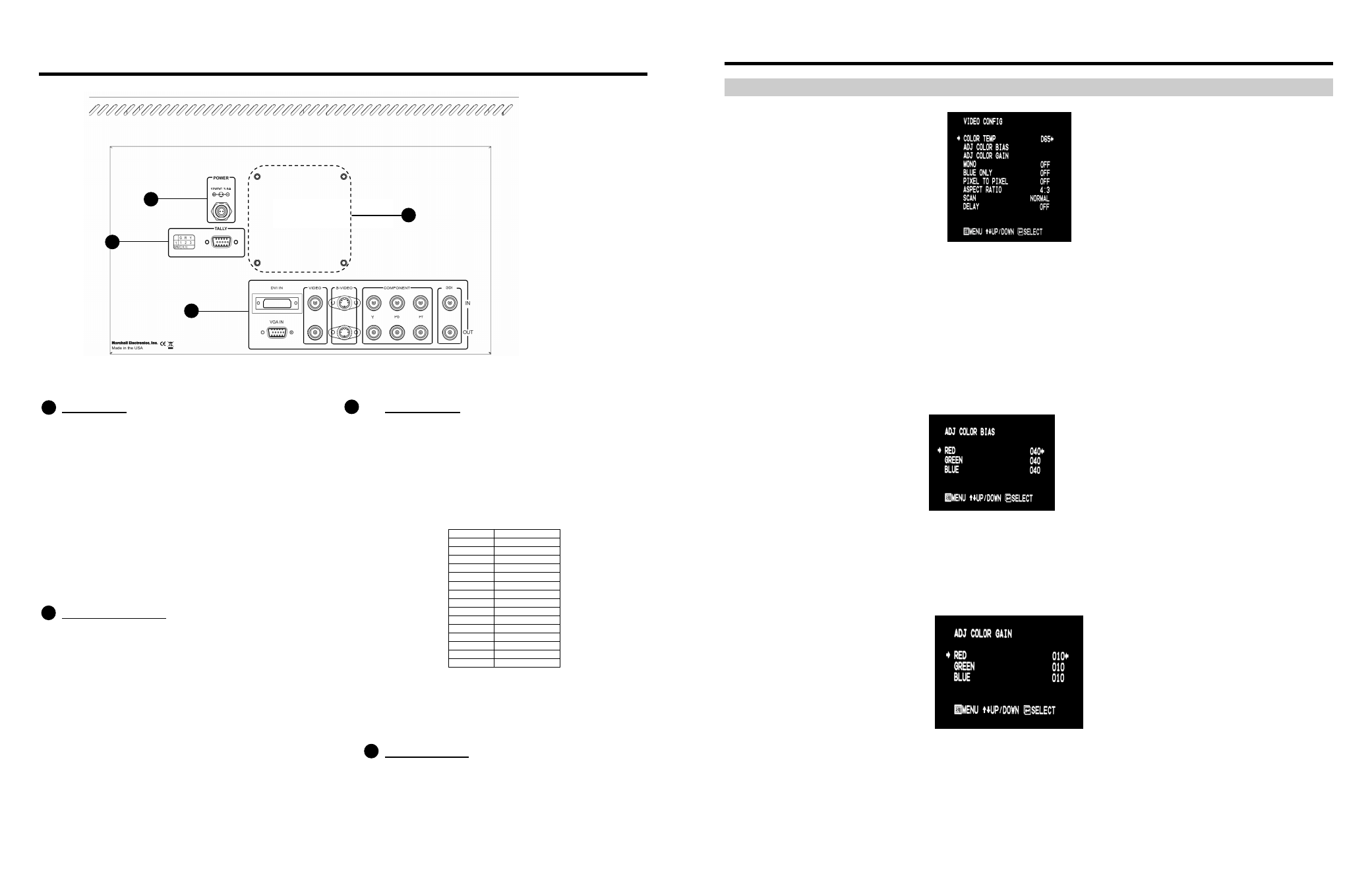

Rear Panel Features
Power Input
Connect the 12VDC input to the Conxall 2-pin twist-lock
power input connector. Power can be supplied from the
included power supply, or from a variety of DC sources
supplying at least 3 Amps at 12 Volts.
IMPORTANT: If using a power source other than the
included power supply, be sure that the polarity of the
DC input is correct:
Pin 1: +12VDC
Pin 2: GND
Signal Input/Output
Connections:
• Composite Video Input/Output (BNC)
• S-Video Input/Output (4-Pin Mini-DIN)
• YP
B
P
R
Input/Output (BNC x 3)
• SDI Input/Output (BNC)
• VGA (HD-15)
• DVI (29-Pin connector, DVI-D signals only)
All outputs are active and require the monitor to be
powered.
Tally Interface
Each tally light is activated via the HD-15 connector by
connecting the corresponding pin to ground. A variety of
external devices can be used to perform the contact
closure. No additional power should be supplied to the
HD-15 port.
Tally Interface: HD-15 Pinout
Pin No. Signal
1 Green
2 Red
3 Yellow
4 Ground
5 Ground
6 N/C
7 N/C
8 N/C
9 N/C
10 N/C
11 N/C
12 N/C
13 N/C
14 Ground
15 Ground
Example: To activate the red tally light, connect pin 2 to
pin 4, 5, 14, or 15.
Mounting Holes
A VESA-standard 75 mm hole pattern is provided to
accommodate a variety of custom mounting options.
1
2
3
4
1
2
3
4
Rear Panel
11
On-Screen Menu (continued)
VIDEO CONFIGURATION SUBMENU
■ Color Temperature Presets
Use this setting to choose one of three color temperature presets:
• D55 (5500K)
• D65 (6500K)
• D93 (9300K)
• USER (Adjustable Color Bias and Gain)
■ Adjusting Color Bias
Use this submenu to adjust bias of the color response. Adjust the bias for each color to alter the white balance of the
image. The Color Temperature preset will automatically switch to USER when Color Bias settings are adjusted. It is
normal for color bias adjustments to be very subtle.
■ Adjusting Color Gain
Use this submenu to adjust gain of the color response. The Color Temperature preset will automatically switch to
USER when Color Gain settings are adjusted.
Video Configuration Submenu
Color Bias Menu
Color Gain Menu
