14
On-Screen Menu (continued)

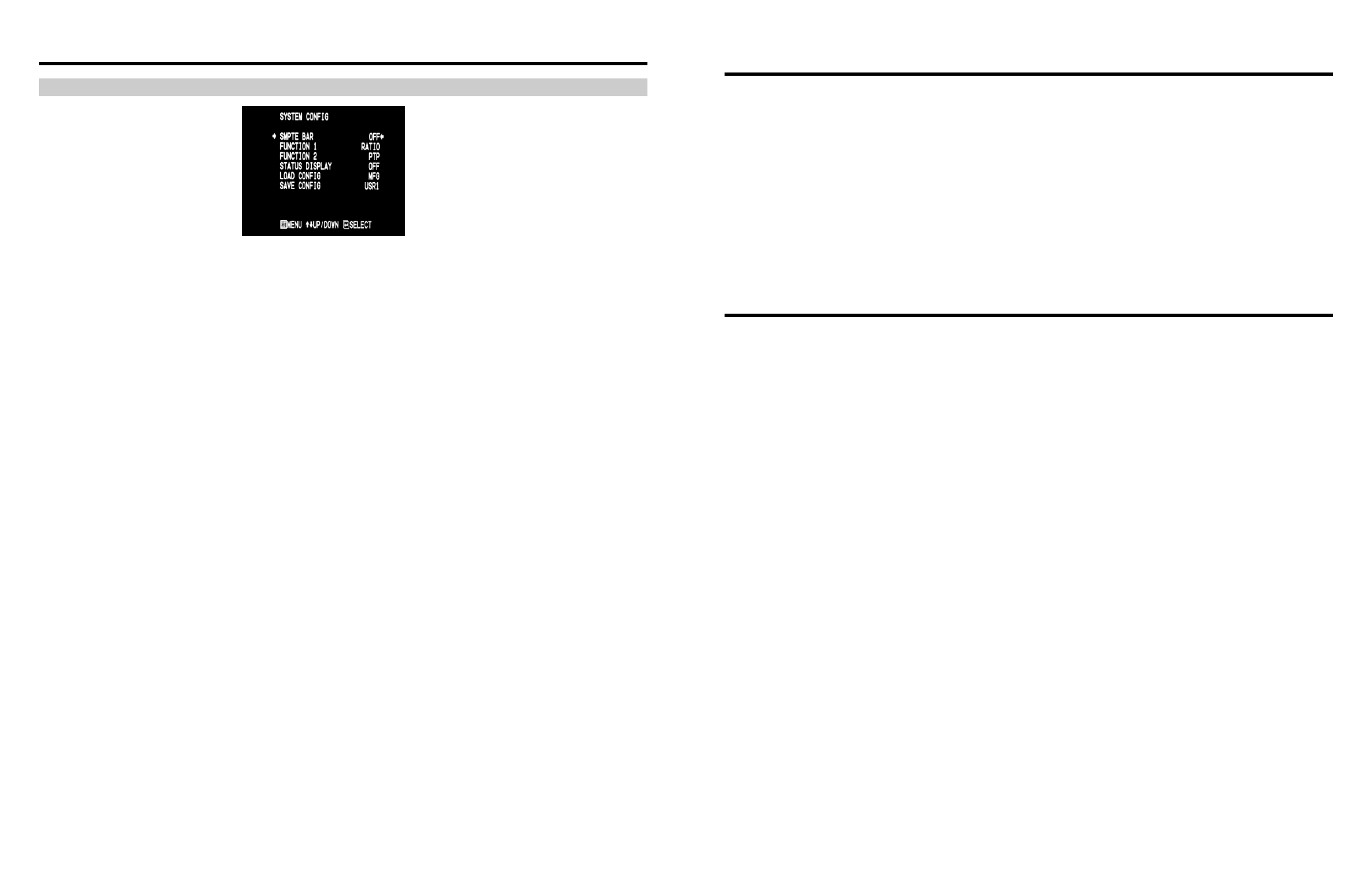

SYSTEM CONFIGURATION SUBMENU
■ Internal SMPTE Color Bars
Use to display internally generated SMPTE split-field color bars.
■ User-Definable Function Buttons
Use the FUNCTION 1 and FUNCTION 2 menu items to define each function button on the front panel of the monitor.
The following options are available for each button:
• DELAY Enable and rotate amongst delay modes.
• RATIO Toggle between 4:3 and 16:9 aspect ratios.
• BACK Rotate amongst marker backgrounds.
• CENTER Enable/disable center marker.
• MARKER Enable and rotate amongst marker settings (choices depend on aspect ratio setting).
• MONO Enable/disable monochrome mode.
• CTEMP Rotate amongst color temperature settings.
• PTP Enable/disable Pixel-to-Pixel
™ mode.
FUNCTION 1 is set to RATIO by default.
FUNCTION 2 is set to PTP by default.
■ Status Display
Use to enable on-screen display of input/format status in the upper-left corner of the screen.
■ Saving and Loading User Configuration Presets
Use the SAVE CONFIG and LOAD CONFIG menus to save current settings to one of 6 presets, or load a preset. All
monitor settings on the monitor are saved, including the image adjustment knob settings.
• Use the LOAD CONFIG menu to load one of presets USR1 – USR6. Factory default settings can also be loaded
by selecting MFG. (Factory defaults cannot be overwritten.)
• Use the SAVE CONFIG menu to save the current settings to a preset from USR1- USR6.
Video Configuration Submenu
3
Product Overview
The V-LCD15SB-AFHD-DT is a 15” SD/HD video LCD with Marshall Electronics’ proprietary SunBrite LCD panel,
designed specifically for outdoor applications or high levels of ambient light. The V-LCD15SB-AFHD-DT features our
completely digital TFT-MegaPixel
™ active matrix LCD system. Weighing only 8.1 lbs and only 1.77” deep, this monitor is
an ideal lightweight replacement for CRTs used in all broadcast and professional video applications. Emulation of
SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our
proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line
super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using our HyperProcess
™ algorithm
with motion adaptive interpolation. The V-LCD15SB-AFHD-DT features multi-format compatibility, accommodating
virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p formats. VGA and DVI inputs accept VESA
standards allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a
variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, and Pixel-to-Pixel
™ mode.
Features
■ High-Resolution 15” SunBrite Panel
The V-LCD15SB-AFHD-DT features Marshall Electronics’ new SunBrite LCD panel, dramatically boosting the
efficiency of the backlight’s light utilization and minimizing the surface reflection of ambient light. The transmissive LCD
produces high-contrast images, even in challenging outdoor lighting conditions. This technology features a much wider
color reproduction range than typical transflective/reflective LCDs with increased backlight performance. The LCD
panel features a brightness of 600 cd/m
2
, 600:1 contrast ratio, and 160° horizontal and 140° vertical viewing angles.
■ Multi-Format Compatibility
With a variety of analog and digital inputs, the V-LCD15SB-AFHD-DT accommodates virtually all video formats. Input
types include Composite Video, S-Video, YPbPr, SDI, VGA, and DVI with HDCP. Accepted formats include
NTSC/PAL, 480i/p, 576i/p, 720p, 1035i, and 1080i/p standards, as well as VESA PC formats through SXGA (1280 x
1024).
■ End-to-End Digital Signal Processing
Analog signals are digitized using an advanced 10-bit process with 4x over-sampling, 5-line super-adaptive 2D comb
filtering, and exacting color space conversion. Video is scaled to fit on the screen in the highest possible resolution
using a state-of-the-art LSI that incorporates precision gamma correction and our HyperProcess
™ motion adaptive
interpolation for interlaced images.
■ ColorMatch™ Conversion with Color Temperature Adjustment
Emulation of SMPTE-C/EBU color space allows the V-LCD15SB-AFHD-DT to replace any broadcast CRT monitor.
Settings include D55, D65 and D95. Bias and Gain adjustment for each color enables precise color matching and white
balance.
■ Advanced Features
Aspect ratio settings, underscan mode, blue-only mode, monochrome mode, and H/V delay are a few of the advanced
features making the V-LCD15SB-AFHD-DT at home in any broadcast environment. Pixel-to-Pixel
™ mode also allows
native display of any incoming image format.
■ Flexible Screen Markers
A variety of screen markers in both 4:3 and 16:9 modes allow accurate monitoring of the different aspect ratios used in
broadcast environments.
■ User-Definable Function Buttons
Two user-definable function buttons on the front-panel allow quick access to numerous settings and features including
aspect ratio, screen markers, monochrome mode, color temperature, delay mode, and more.
