Miele KFN 9753 iD EN - Manual (Page 49)

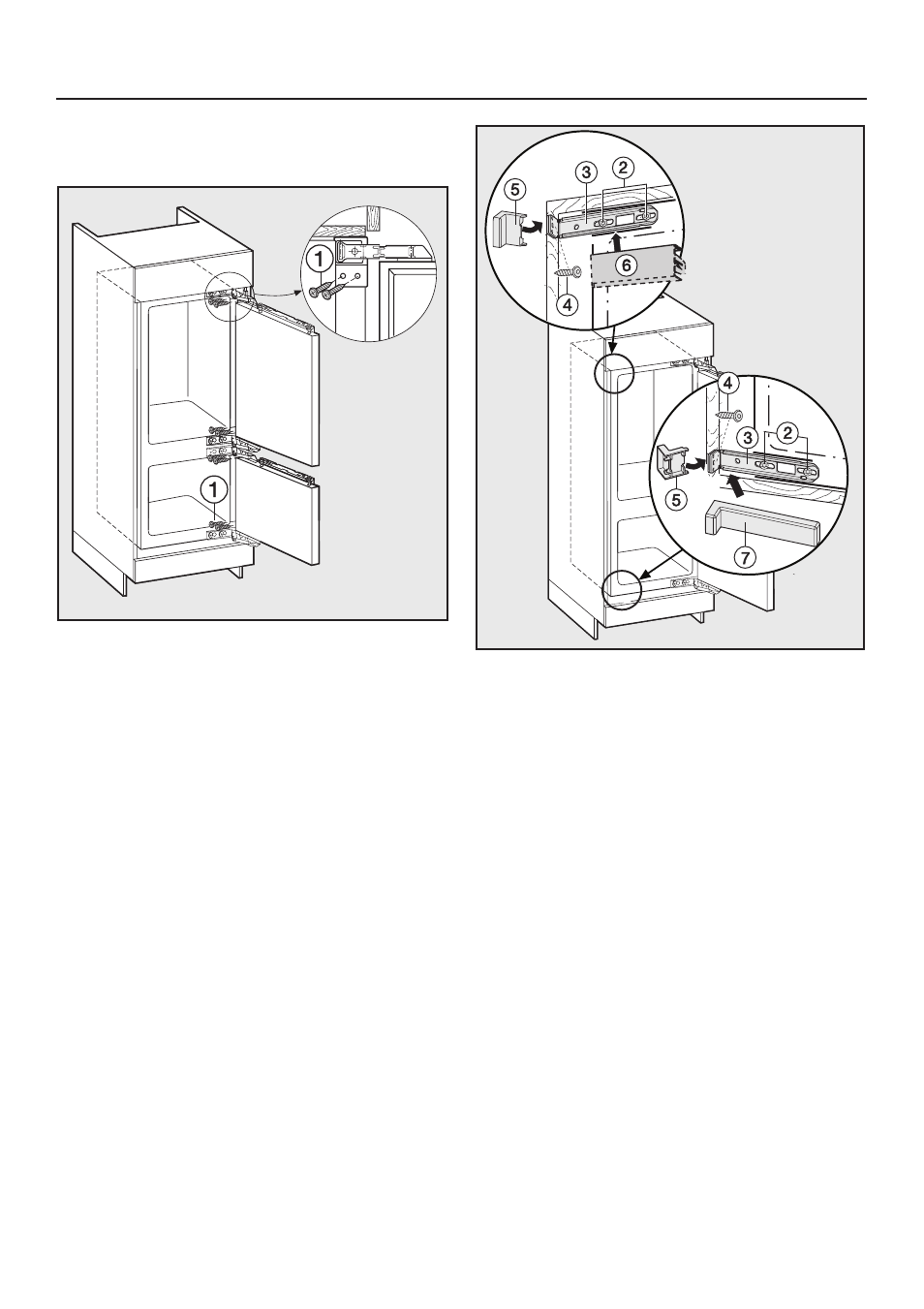

Securing the appliance to the
space
^ Push the hinged side of the
appliance to the cabinetry wall.
^ To secure the appliance at the top
and bottom to the cabinetry, screw
the long particle board screws
a (4 x
20 mm) through the upper and lower
hinge flaps.
^ Slightly loosen the screws b on the
upper and lower mounting brackets
c.
^ Push the mounting brackets
cagainst the cabinetry wall, and
tighten the screws
b back in.
^ Using the screws d, tighten the
mounting brackets c into the
cabinetry wall. You may wish to
pre-drill the holes in the cabinetry
wall.
^ Snap off the excess from the upper
cover e and flip it over onto the
upper mounting bracket c.
^ Fit the long cover f onto the upper
mounting bracket c.
Installing the appliance
49
