28
GAS-FIRED HEATER
Installation Manual

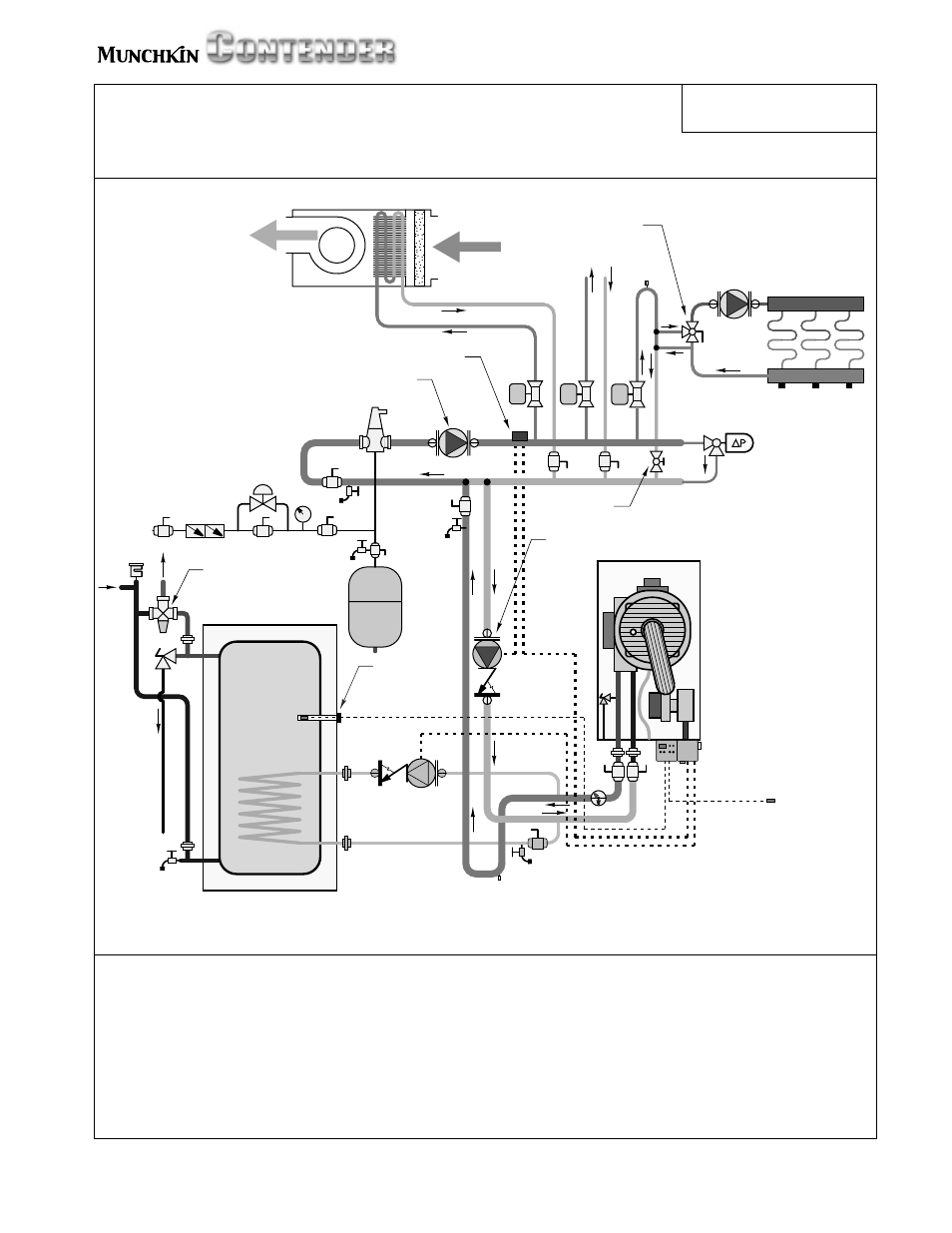

Munchkin Contender Heater with optional VISION 1 system
(zoning with valves)
Space heating mode (w/ submixing)
Drawing 2C
NOTES:
1.
This drawing is meant to show system piping concept only.
Installer is responsible for all equipment & detailing required by local codes.
2. All closely spaced tees shall be within 4 pipe diameters center to center spacing.
3. A minimum of 6 pipe diameters of straight pipe shall be installed upstream & downstream of all closely spaced tees.
4. The minimum pipe size for connecting a Super Stor Ultra Indirect Water Heater is 1-inch.
5. The minimum pipe size for connecting the Munchkin Contender is 1.25-inch
6. Circulators are shown with isolation flanges. The alternative is standard flanges with full port ball valves. Purge valves can be used with the
circulator flanges as an alternative.
7. Optional Vision 1 system includes temperature sensors for DHW and outdoor air and must be purchased separately.
8. The anti-scald mixing valve is recommended if the DHW temperature is set above the factory setting of 119˚F.
9. Install a minimum of 12 diameters of straight pipe upstream of all circulators.
10. Winterization: When winterizing the Munchkin Contender, put a drain valve on both the supply and return between the union and the
shut-off connection.
purge
anti-scald
mixing valve
thermal trap
(w/ drain plug)
purge
purge
air handler
make-up water
vent
3-way
(manually-set)
mixing valve
low temperature
manifold station
P1
P2
differential
pressure
bypass
valve
balancing
valve
OFF
outdoor
temperature
sensor
T/P
Munchkin
Contender
Heater
see note 6
optional high limit safety
see note 6
Super Stor Ultra
Indirect DHW Tank
(Vision 1 system)
DHW
temperature
sensor
(Vision 1 system)
cold
water
