GA-2.5H A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #5 (03/04/08) — PAGE 29

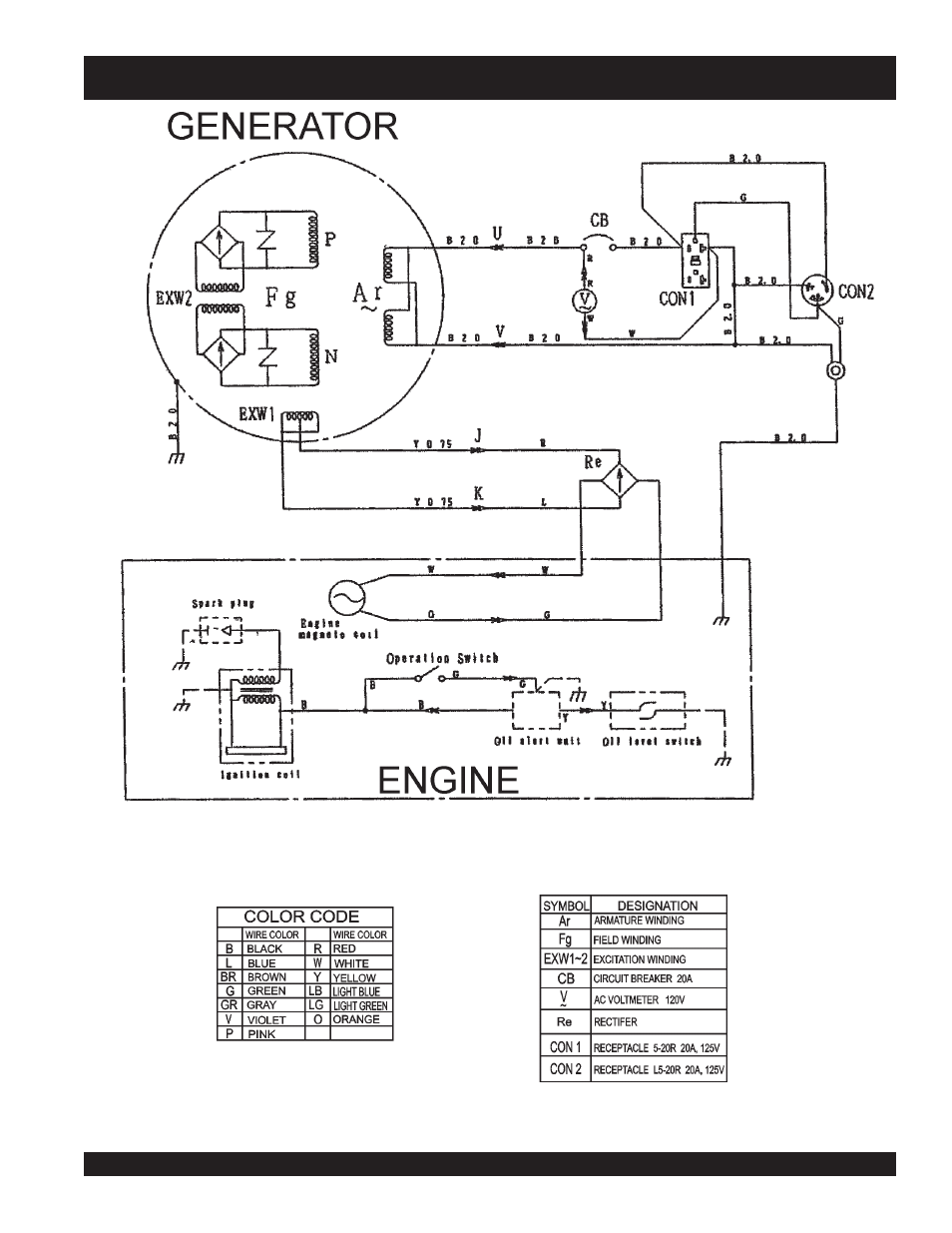

GA-2.5H — WIRING DIAGRAM (S/N 5496763 AND ABOVE)

Figure 23. Generator/Engine Wiring Diagram (S/N 5496763 and above)
