PAGE 28 — GA-2.5H A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #5 (03/04/08)

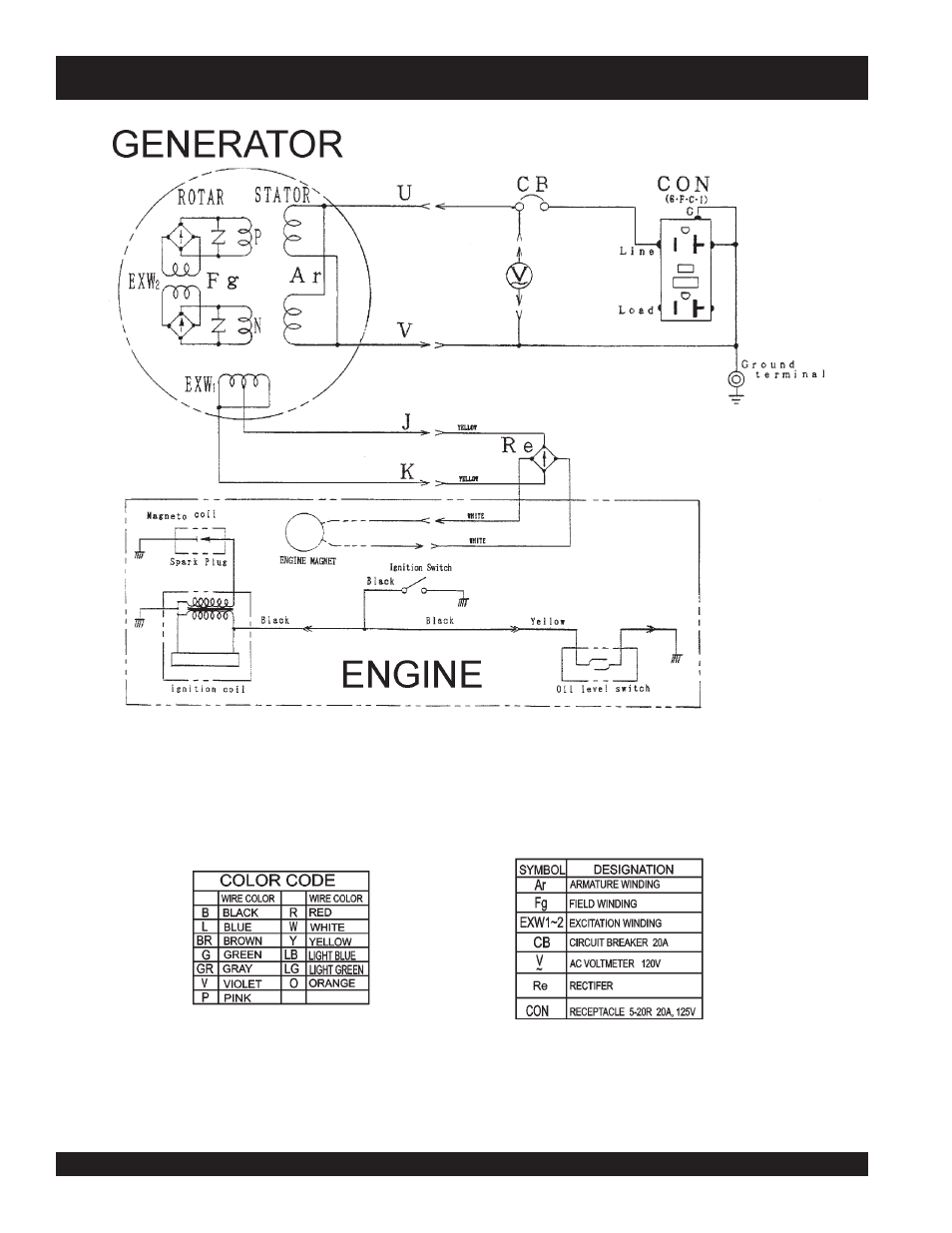

GA-2.5H — WIRING DIAGRAM (S/N 5496762 AND BELOW)

Figure 22. Generator/Engine Wiring Diagram (S/N 5496762 and below)
