Chapter 2 – Installation and Cabling



Step 1 – Attaching the Adapter to a Fixed
Location

The Serial-to-Bluetooth Adapter is design to be used on the desktop or to be panel-mounted. To attach the bracket
for panel-mounting, following these steps:

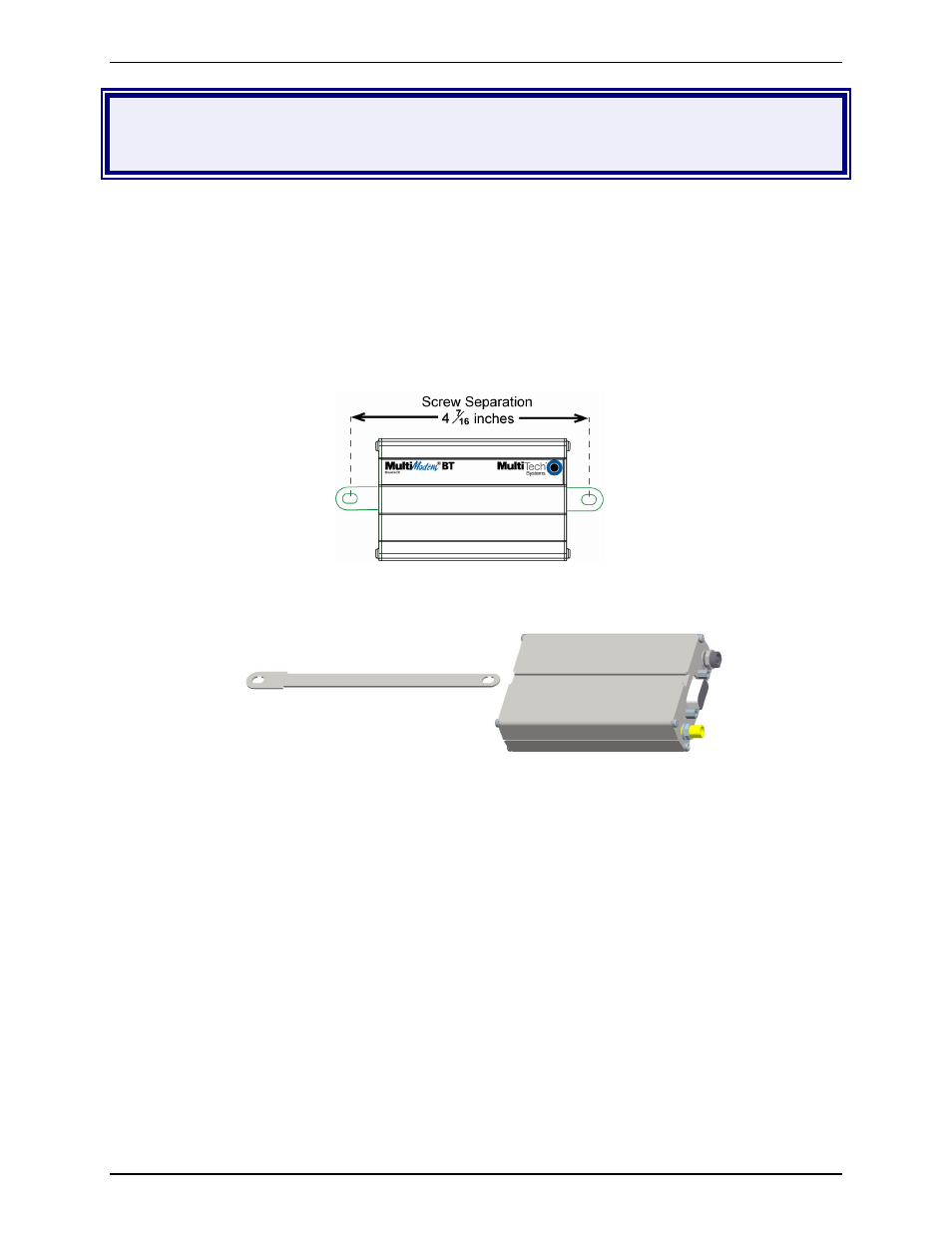

1. Typically, the adapter is mounted against a flat surface with two mounting screws. Drill the mounting holes at the

desired location. The mounting holes must be separated by 4 -7/16 inches center-to-center.

2. Slide the mounting bracket into the slot on the back of the chassis.


3. Attach the adapter to the surface with two screws.
