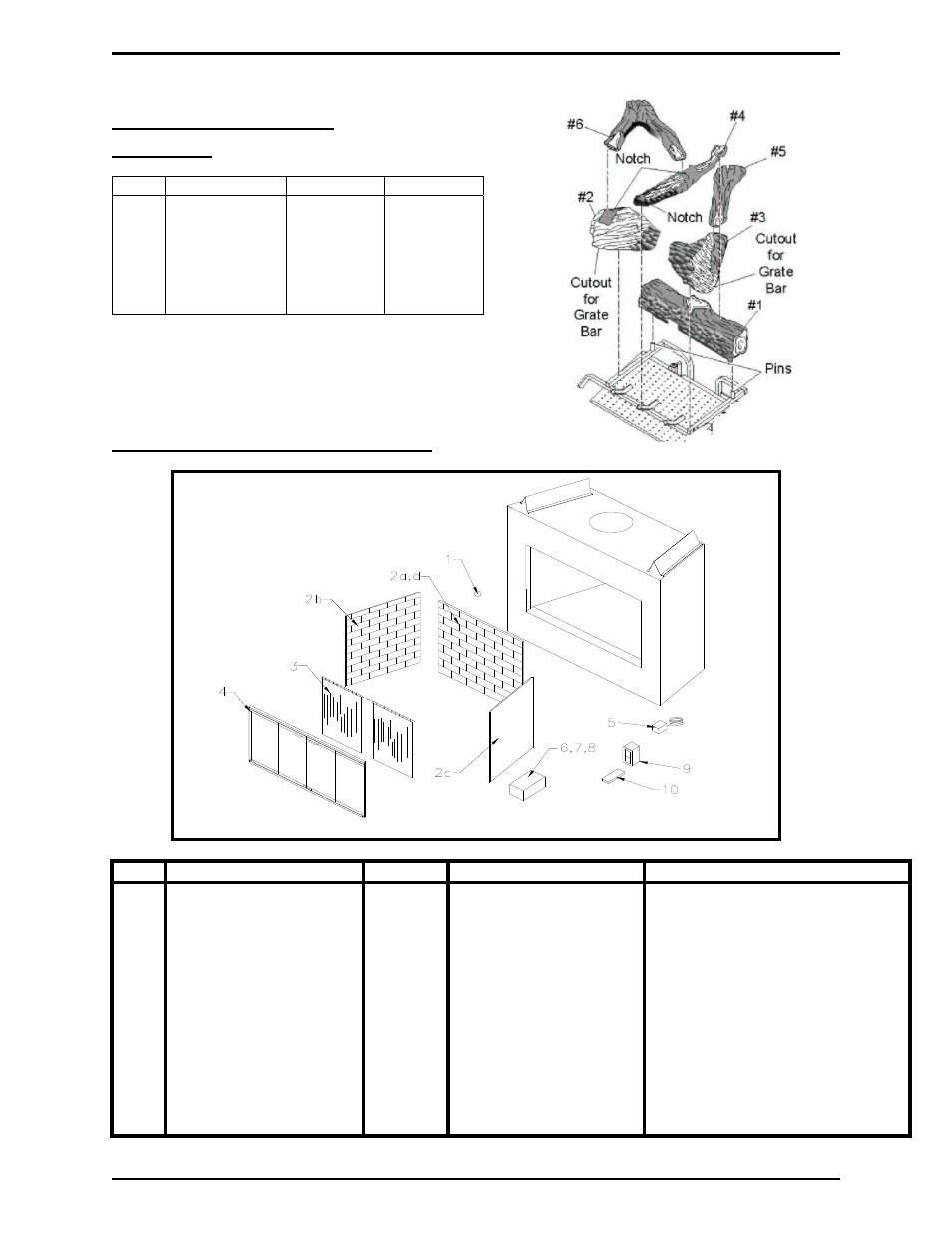

PARTS LIST / ILLUSTRATION
B
Firebox Components: Standard and Accessories
Item Description Qty 4536 5142
1 Hi Temperature limit switch 1 41D0202 41D0202
2 Firebrick walls (weathered) 1 FB4536W9 FB5142W9
2a Firebrick center 36” 1 41D2011 -
2b Firebrick left side 1 41D2009 41D2009
2c Firebrick right side 1 41D2010 41D2010
2d Firebrick center 42” 1 - 41D2012
3 Pull Screen 1 MS MS
4 Bi-Fold Brass/Black Doors 1 BBD4536/BLD4536 BBD5142/BLD5142
5 Manual Remote Control 1 RCM/RCB RCM/RCB
6 Embers 1 EMBERS EMBERS
7 Cinders 1 CINDERS CINDERS
8 Lava Rock 1 VR1000A VR1000A
9 Wall Switch Kit 1 MVWS MVWS
VDY24/18D3R
Item Description 4536 5142
1 Rear Log 32D2118 32D2118
2 Front Left Log 32D2117 32D2117
3 Front Right Log 32D2116 32D2116
4
5
6 Top Middle Log
Top Right Log
Top Left Log 32D2114
32D2113
32D2115 32D2114
32D2113
32D2115
