6
Looking at or near the Sun will cause irreversable damage to your eye. Do not point this telescope at or near the Sun. Do not look through the
telescope as it is moving.

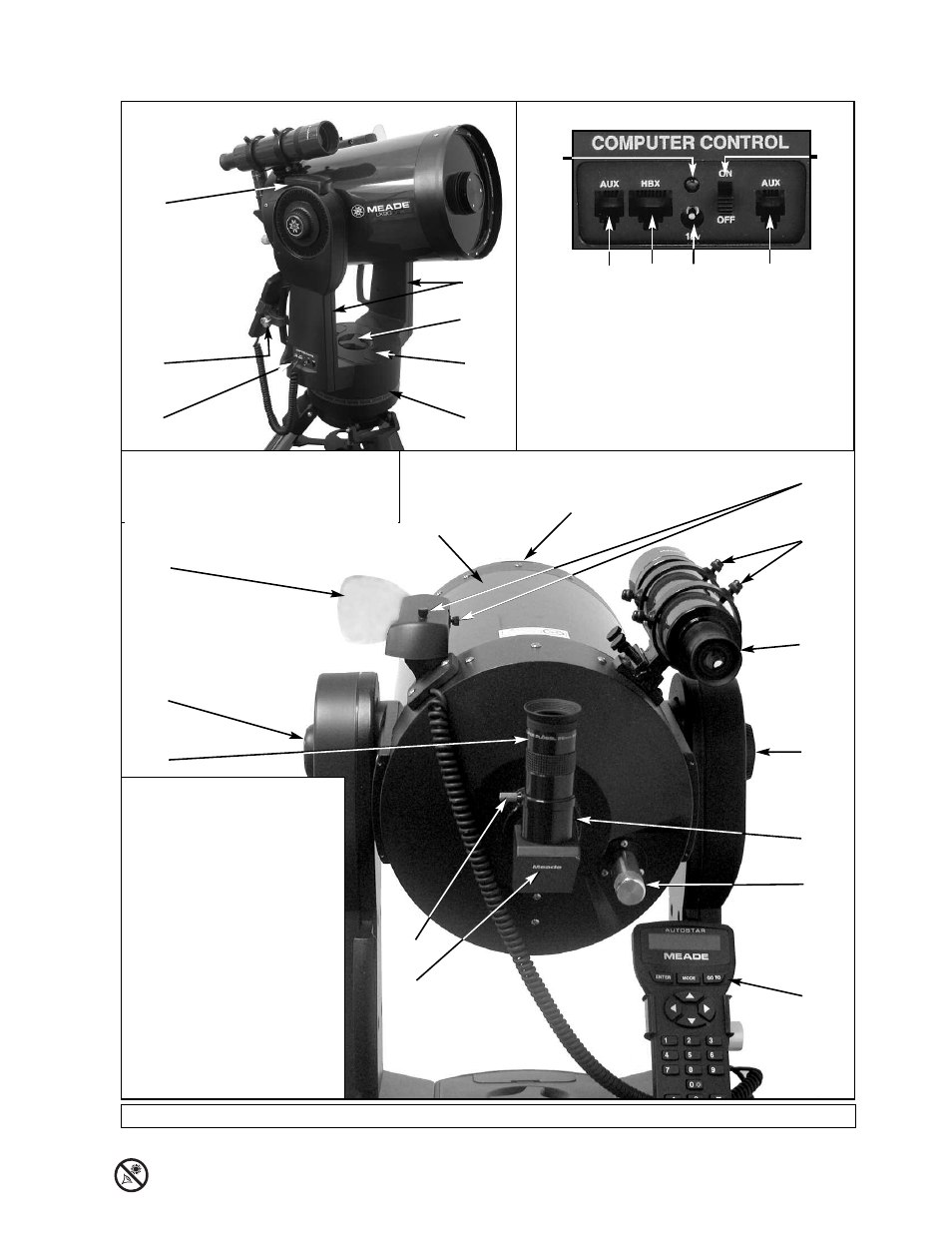

Fig. 1: The LX90 Telescope and AutoStar Handbox.
TELESCOPE FEATURES
ᕢ
¿
ᕣ
ᕦ
ᕨ
µ Ƹ
ƺ
ƻ
Ƽ
³
ƽ
¸
ƹ
2!
1@
2)
Ạ
ạ Ả
ả ả Ấ
(not shown)
ᕩ
1 Eyepiece
2 Eyepiece Holder Thumbscrew
3 Eyepiece Holder
4 Diagonal Prism
5 Optical Tube
6 Dec. Lock
7 Fork Arms
8 Focus Knob
9 R.A. Lock
10 R.A. Setting Circle
11 Dec. Setting Circle/Dec. Pointer
12 GPS Receiver
13 Computer Control Panel
14 AutoStar handbox
15 Dust Cover (not visible)
16 Battery Compartment
17 SmartFinder
18 SmartFinder Alignment Screws
19 Handbox Holder
20 Viewfinder
21 Viewfinder Alignment Screws
A. Handbox Port
B. LED
C. ON/OFF Switch
D. Auxiliary Ports (2)
E. 12v Power Connector
Side View
Rear View
Computer Control Panel
ƾ
Ƹ
ᕥ
ᕧ
Some models of the LX90 have the computer
control panel on the left fork arm, others on
the right fork arm.
All models of the LX90 operate identically.
