MultiModem CDMA Wireless Modem
6 Multi-Tech Systems, Inc. Quick Start Guide

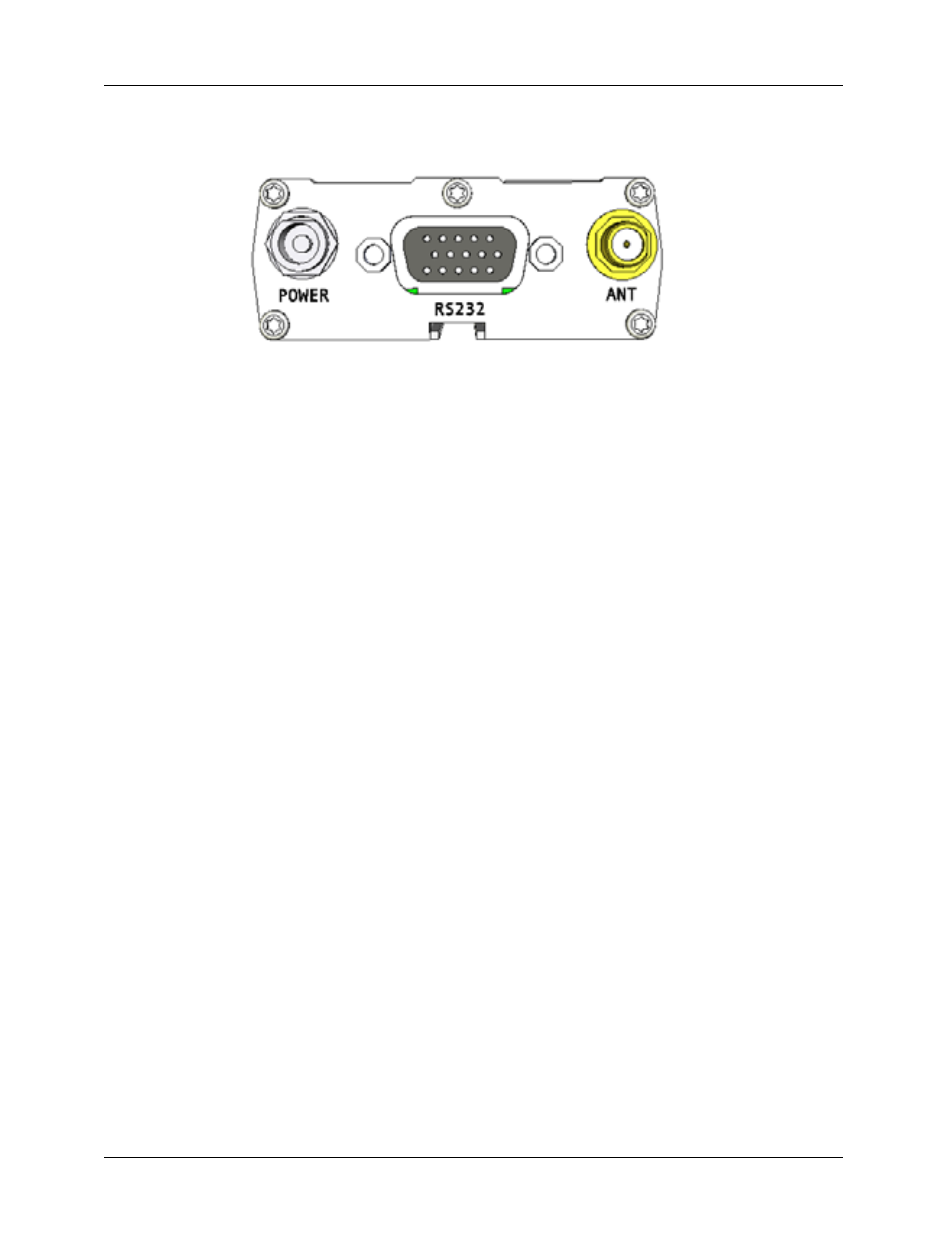

Hook up the Antenna, Serial Cable, and Power
• Antenna.
Connect a suitable antenna to the SMA connector
(see the User Guide for antenna/RF specifications).
• Serial Cable.
Connect one end of the serial cable to the
modem and the other end to a PC.
• Power.
Plug the power supply into the wireless MultiModem.
For standard transformer power supply:
∗
Connect the AC cord and its transform block.
∗
Connect the AC cord plug into the main power outlet.
Note: Units shipped with the universal AC power supply are
not suited for installation in hazardous locations.
For optional direct-DC powering:
∗
See the User Guide for views of the fused cable, hook up
directions and other information.
