1 1 Door latch - When the door is closed, it will
automatically shut off. If the door is opened while
the oven is operating, the magnetron will
automatically shut off.
2 2 Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3 3 Oven cavity
4 4 Coupler- This fits over the shaft in the center of
the oven cavity floor. This is to remain in the oven
for all cooking.
5 5 Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
6 6 Safety interlock system
7 7 Door open button - To open the door push the
door open button.
8 8 Viewing screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwave.
.
9 9 Glass cooking tray - Made of special heat
resistant glass. The tray must always be in proper
position before operating. Do not cook food
directly on the tray.
0 0 Roller guide - This must always be used for
cooking together with the glass cooking tray.

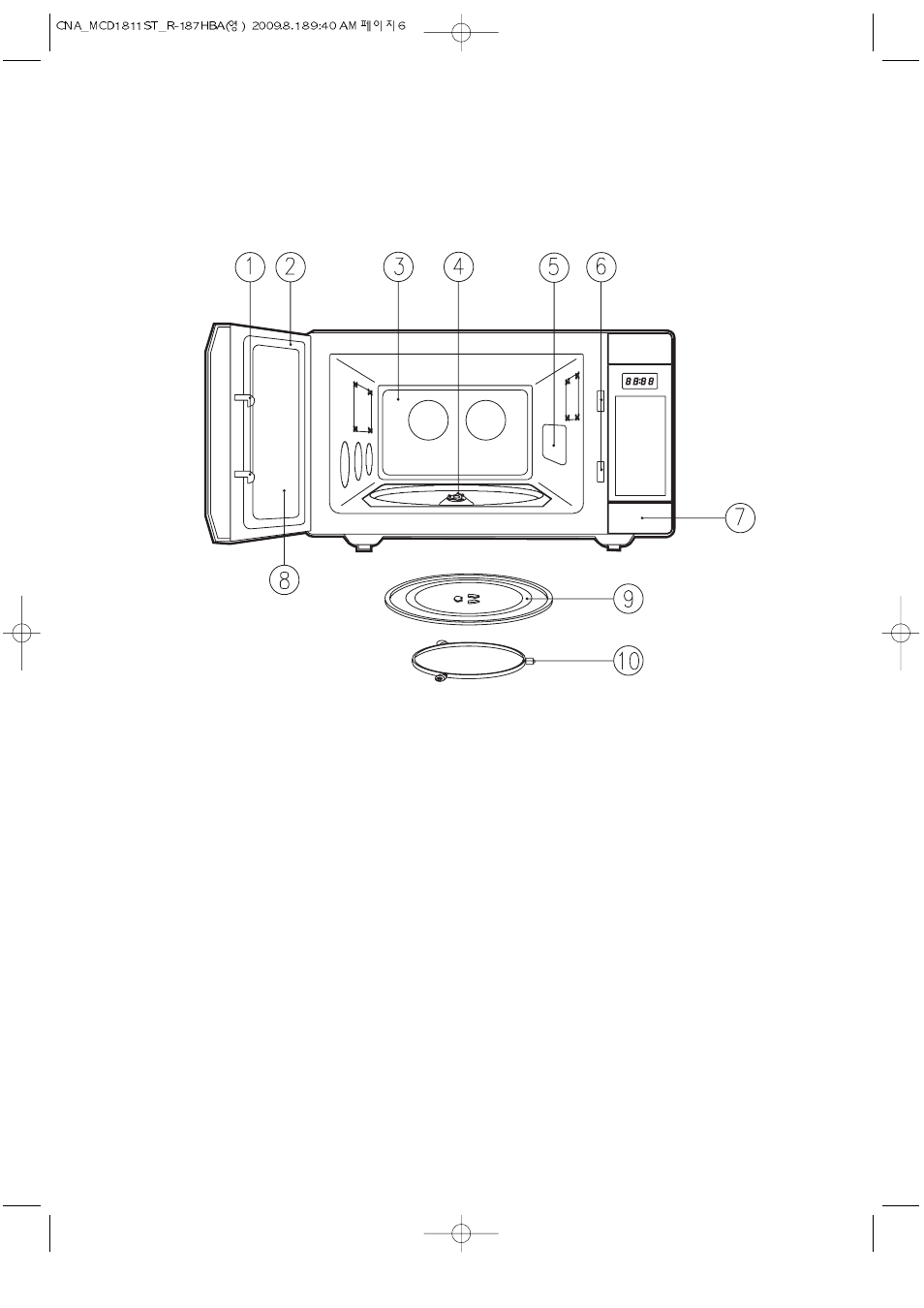

FEATURES DIAGRAM
