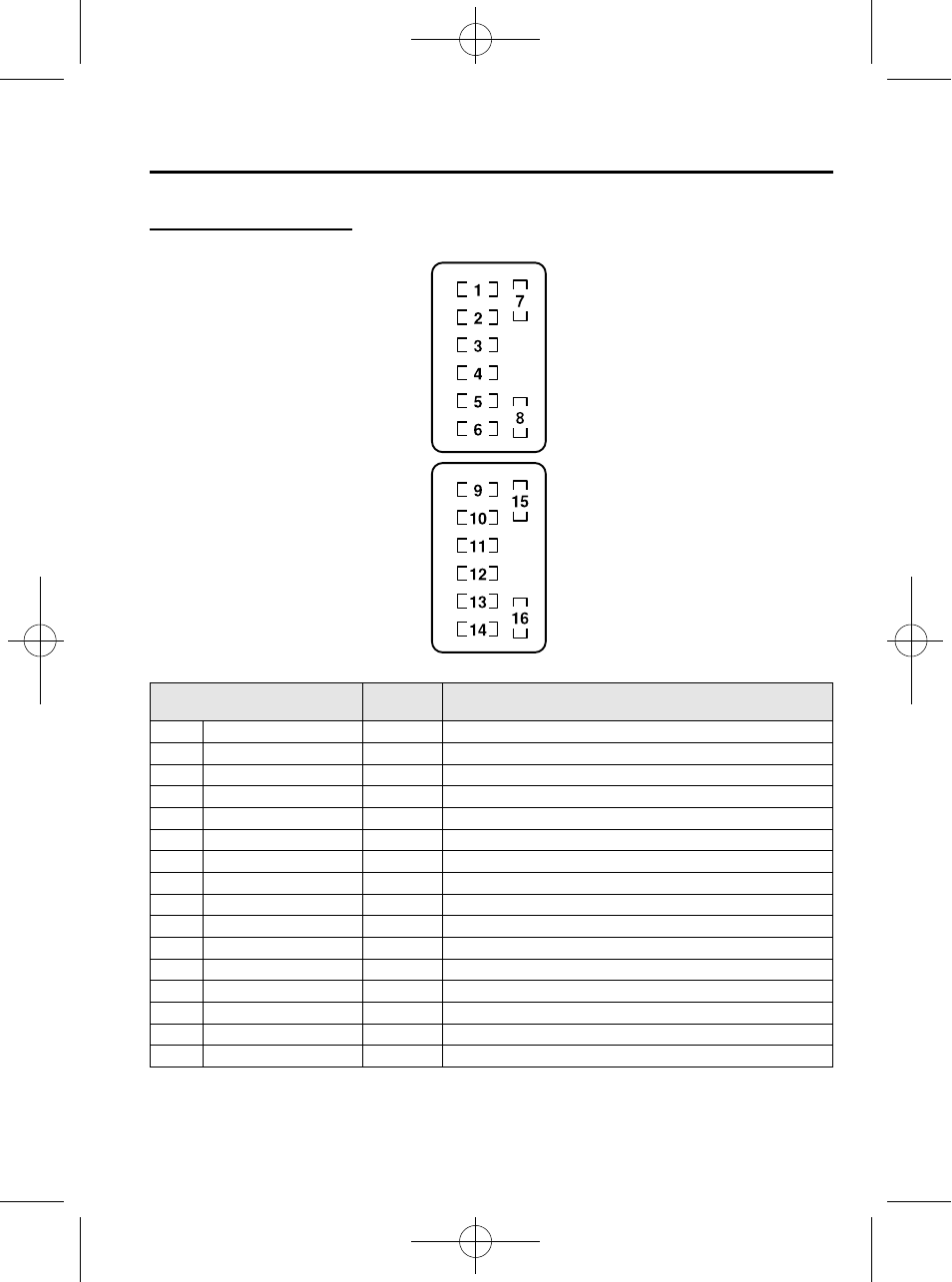

Fuse panel (Driver's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 AUX PWR 20A Accessory socket
4 A/C 7.5A Air conditioner
5 METER 10A Instrument cluster
6 TCM 10A Transmission control system
7 SPARE 7.5A ―
8 SPARE 20A
―
9 M.DEF 10A Mirror defroster
í
10 DSC 7.5A DSC
í
11 AUDIO 20A Audio system
í
12 D.LOCK 30A Power door locks, Moonroof
í
13 P.WIND 30A Power windows
14 ROOM 15A Interior lights
15 SPARE 15A ―
16 SPARE 10A
―
Maintenance and Care
Owner Maintenance
8-43 í
Some models.
