Page 13: 1. installing swivel into pipe post

OM-230 298 Page 9
SECTION 3 − INTRODUCTION
3-1. Specifications
Type of Input
Power
Welding Power
Source Type
Maximum
Spool Weight
Wire Feed
Speed Range
Wire Diameter
Range
Welding Circuit
Rating
Weight
24 Volts AC
Single-Phase
10 Amperes
50/60 Hertz
Constant Voltage
(CV) DC With 14-Pin
And Contactor
Control
60 lb
(27 kg)
Standard: 50 To 1400
ipm (1.3 To 35.6 mpm)
.023 To 5/64 in
(0.6 To 2.0 mm)
100 Volts,
750 Amperes,
100% Duty Cycle
12 ft (3.7 m):
160 lb (73 kg)
16 ft (4.9 m):
210 lb (95 kg)
12 ft (3.7 m) Boom
16 ft (4.9 m) Boom
Maximum Height With 4 ft (1.2 m) Post
17 ft (5.2 m)
21 ft (6.4 m)
Vertical Lift Of Boom
Horizontal to 60
°
Above Horizontal
Horizontal to 60
°
Above Horizontal
If feeder is used with a welding power source that does not provide voltage and
current feedback through the 14-pin control cable, run-in will be disabled. Arc
voltage will not be displayed on feeders equipped with meters.
NOTE
SECTION 4 − INSTALLATION

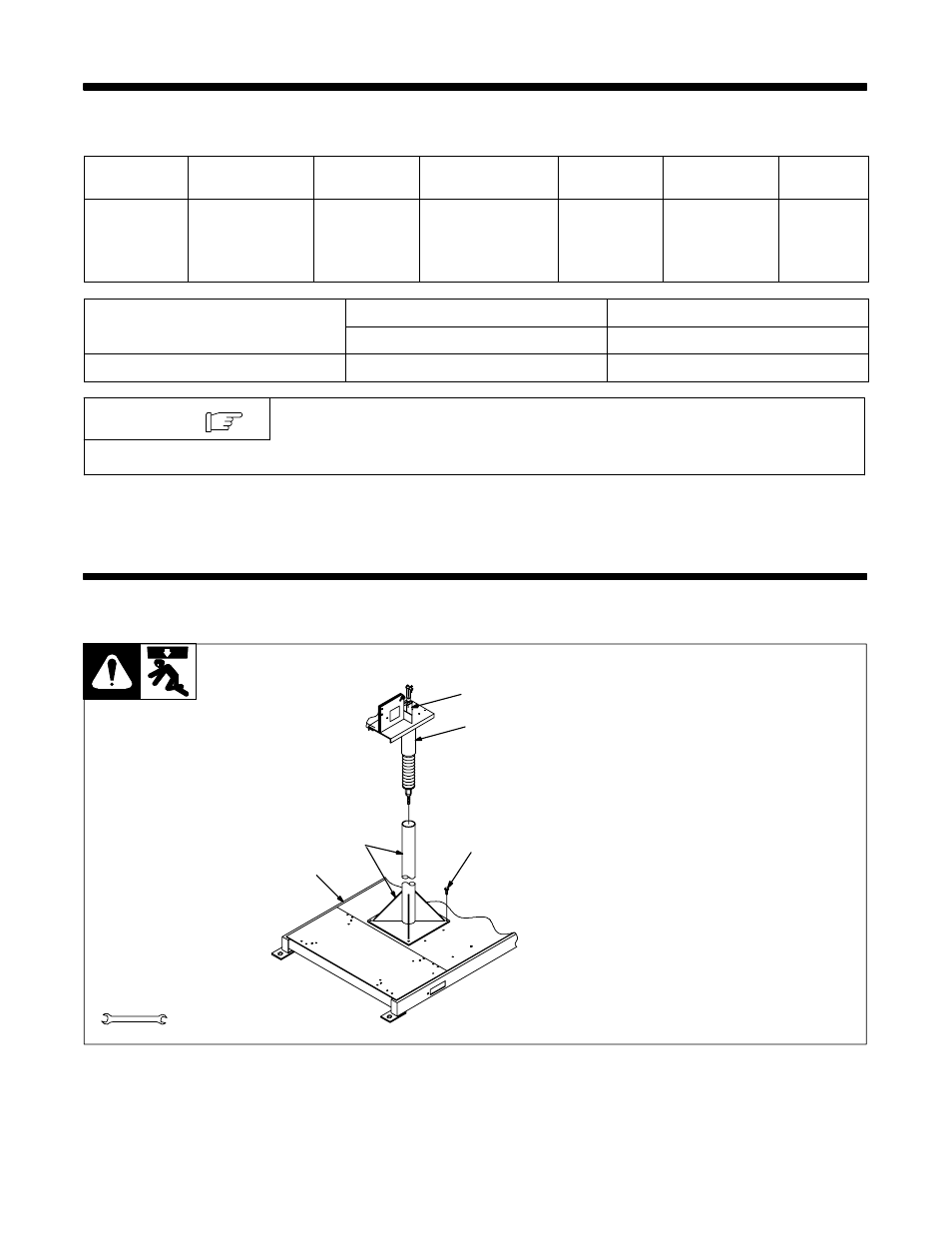

4-1. Installing Swivel Into Pipe Post
ST-152 268-B
1
Swingpak Base or CBC Cart
2
Pipe Post With Base
3
Steel Bolt
Secure as shown using as a mini-
mum 1/2 in diameter SAE grade 5
steel bolts.
4
Swivel Assembly
Insert into pipe post. Lubricate
swivel.
5
Safety Collar
Y Do not remove until
instructed to.
1
2
3
4
5
3/4 in
Tools Needed:
