6

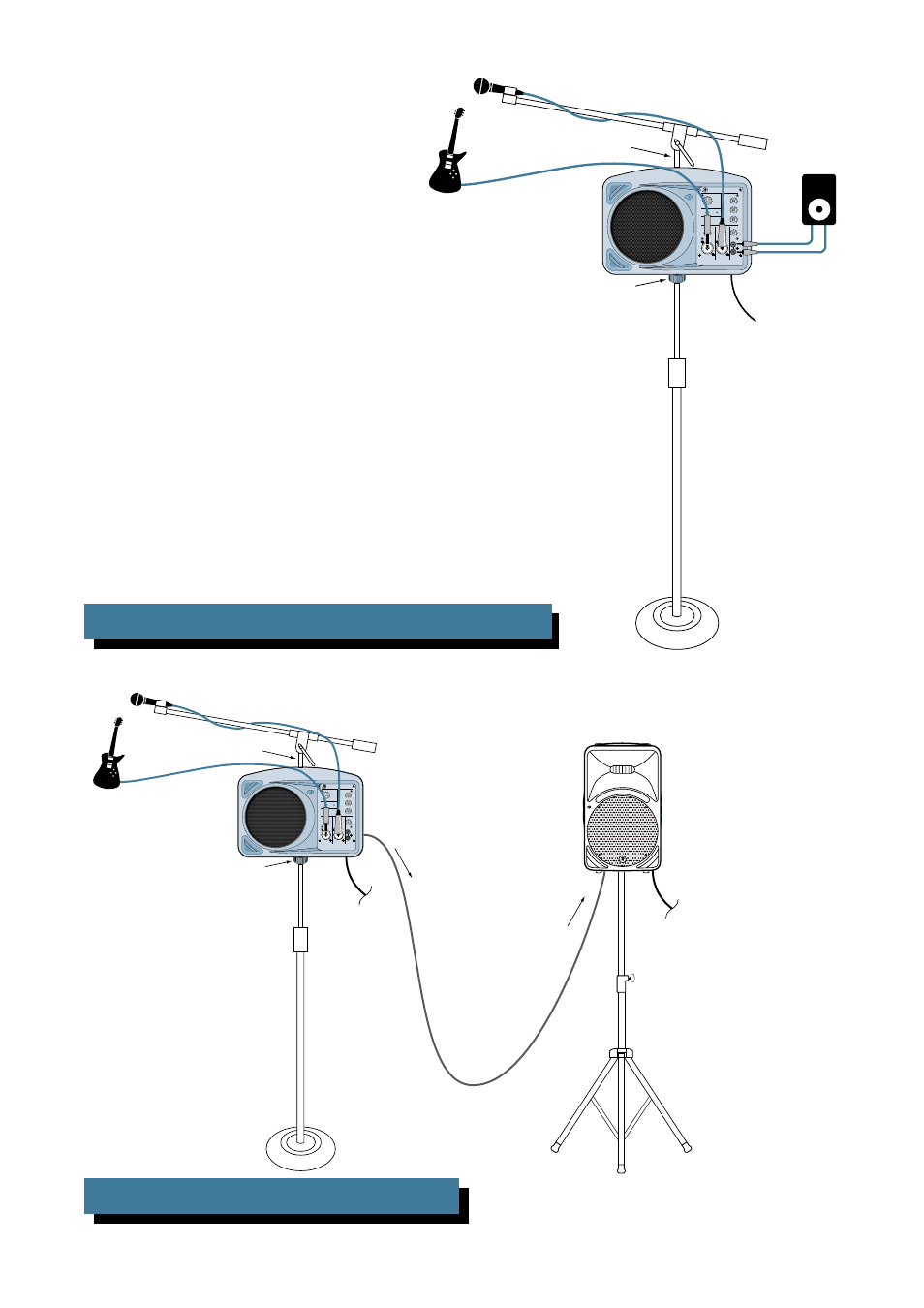

SRM150: SMALL CLUB SETUP WITH SRM450
HOOKUP DIAGRAMS
1 2 3
SRM150
Boom Extender
(Included)
Mic Stand
Adapter
(Included)
Electric Guitar
Vocal Mic
SRM450
Power
Cord
THRU Out
To Input
Power
Cord
Here the SRM150 is used
as a personal monitor and
the SRM450 is the main PA
speaker.
EQ
MIC/LINE MIC/LINE
1 2 3
PHANTOM POWER
INSTRUMENT (CH 1)
SRM150
MAIN COMPACT ACTIVE PA SYSTEM
Power
Cord
Boom Extender
(Included)
Mic Stand
Adapter
(Included)
Electric Guitar
Vocal Mic
MP3 Player
This illustrates how to use the SRM150 as a per-
sonal monitor. Mount the SRM150 on a microphone
stand using the Mic Stand Mounting Bracket in-
cluded with the SRM150. Attach the Boom Extender
(also included) to the top of the SRM150 and use a
microphone boom to hold your microphone.
Connect the microphone and an instrument to the
SRM150 (Channels 1 and 2), and a playback device
like an MP3 player to Channel 3.
SRM150: PRACTICE SETUP USING MIC STAND AND BOOM
