DVD CONNECTIONS (CONTINUED)
STEREO CONNECTION

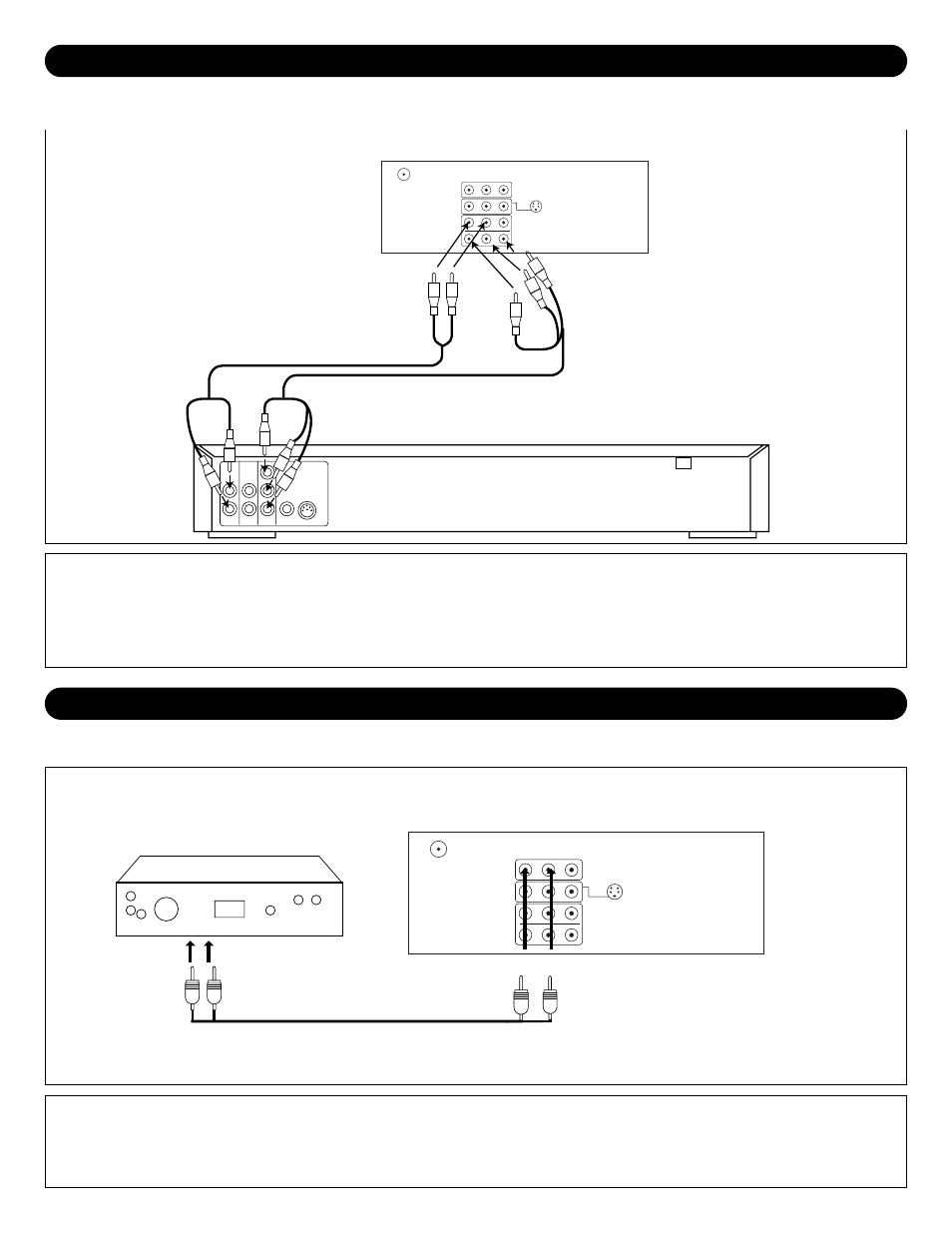

1. Connect the left and right audio cable from the DVD’s Audio OUT jacks to the TV’s AV2 left and right Audio IN jacks.
2. Connect a video cable from the DVD’s Y, Pb, Pr OUT jacks to the TVs AV2 DVD IN (Cr, Cb, Y) jacks.
3. Press the AV button until VIDEO2 appears on the TV screen and press PLAY on the VCR to watch a tape.
Audio Cable
Component Cable
From
Component
Video Out
From
Audio
Out
To
Audio In
To
Component
Video In
REAR OF TV
DVD PLAYER
Follow the instructions below to connect a DVD player to your television using the Cr, Cb, Y jacks. (CABLES NOT
INCLUDED.)
1. Connect the left and right audio cable from the TV’s left and right Audio OUT jacks to the stereo system’s left and right
Audio IN jacks.
2. Refer to the stereo system’s owner’s manual for instructions.
REAR OF TV
STEREO
AUDIO/VIDEO Cord
From TV AUDIO
OUT jacks
To Stereo's
AUDIO IN jacks
Follow the instructions below to connect a stereo system to your television. (CABLES NOT INCLUDED.)
