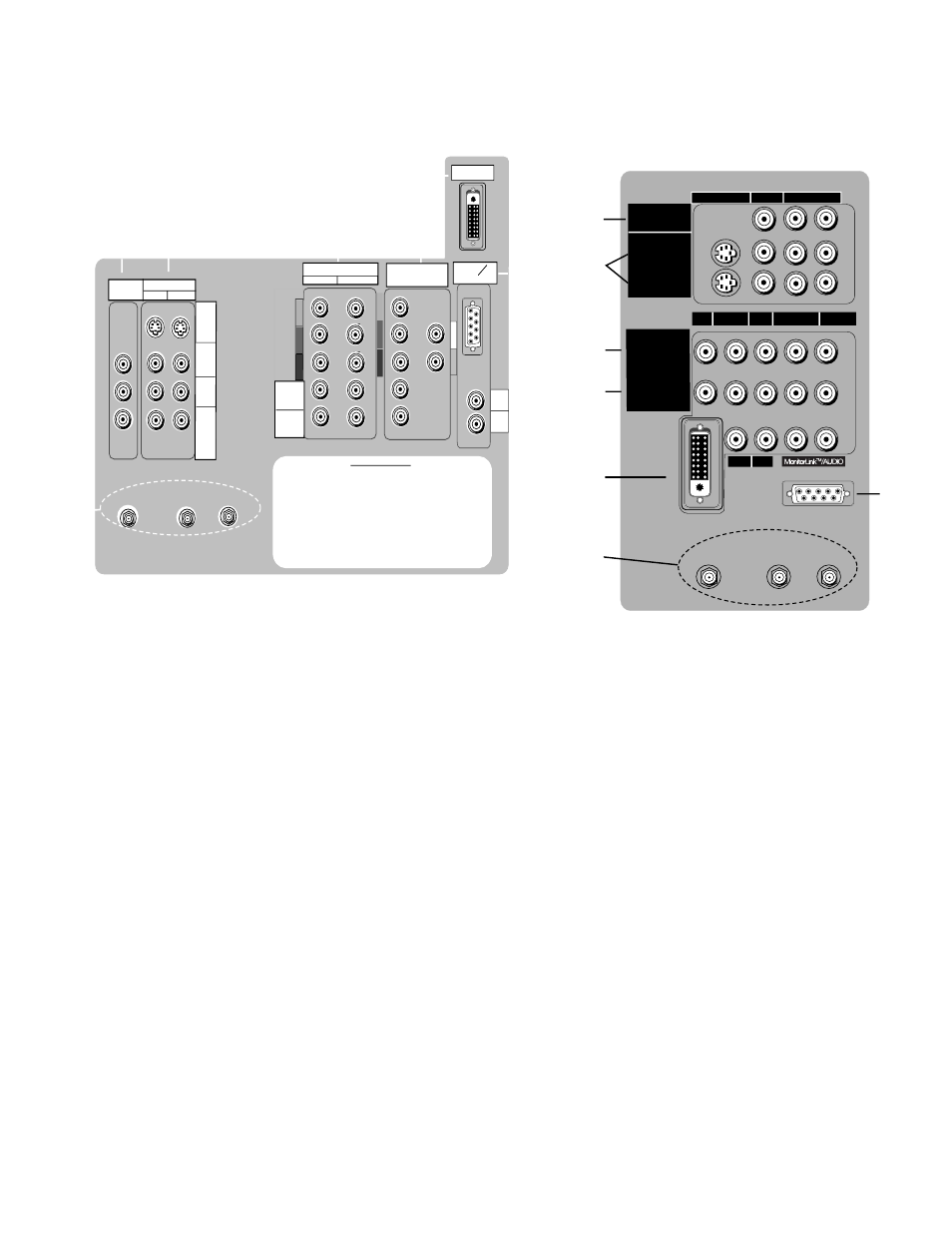

1. ANT-A, LOOP OUT and ANT-B (Antenna)

ANT-A and ANT-B receive signals from VHF/UHF antennas

or a cable system. LOOP OUT sends the ANT-A signal out to

another device, such as a cable box or VCR.

Note:

LOOP OUT is disabled when Energy Mode is set to

Low when the TV power is set to Off.

2. Monitor Out

The Monitor Output sends the TV audio and video signals

(excluding component video, DTV video and MonitorLink) to

an A/V receiver or other equipment.

3. Inputs 1-2

These inputs can be used for the connection of a VCR, Super

VHS (S-VHS) VCR, laser disc player, or other A/V device to

the TV. With each input, you may connect to the S-VIDEO

or VIDEO terminal but not to both.

4. Component Inputs 1-2 (Component only for

WT-42313)

These inputs can be used for the connection of A/V equipment

with component video outputs, such as a DVD player or

compatible Video Game System. Please see Appendix B, page

65, for signal compatibility.

Back Panel Input/Output for

WS-, WS- & WS-

Side Panel Input/Output for

WT-

AN T - A

A N T- B

LO O P

OUT

WT-42313 Side Panel

Y/G

Pb/B

Pr/R LEFT(MONO) RIGHT

S-VIDEO

VIDEO

AUDIO

MONITOR

OUTPUT

INPUT 1

INPUT 2

COMPONENT

(480I/480P/1080I)

DTV

(480I/480P/1080I)

H

V

MonitorLink

TM

/DVI

MonitorLink

TM

CONTROL/RS-232C

7

1

6

5

4

3

2

5. DTV Input

This input is used to connect a DTV receiver or cable box

and can be configured for HDTV component (YPbPr), or

RGB plus H&V. Please see Appendix B, page 65, for signal

compatibility.

6. MonitorLink™/DVI

This is a Mitsubishi-exclusive proprietary digital interface for

the display of high quality digital video signals from Mitsubishi

products such as the HD-5000 HDTV Receiver/Controller.

All video signals, both analog and digital are sent digitally to

your Mitsubushi TV. Can also be used as a DVI input for

other compatible sources.

Note: The DVI-HDTV input terminal is compliant with the
EIA-861 standard and is not intended for use with personal
computers.

7. MonitorLink™ Control/RS-232C

A digital control interface that works in parallel with

MonitorLink. While MonitorLink provides the digital video

signal, MonitorLink Control provides enhanced functioning

such as automatic power ON/OFF and input selection. Can

also be used with other compatible RS-232C external control

devices.
