Cabling for Multiple Users
The SURFboard cable modem supports several multiple user configurations. Along with
an optional hub or router, it can serve as an Internet gateway for up to 63 computers.
Not all service providers support multiple user service. For information about multiple
user service, contact your cable service provider.
Ethernet and USB

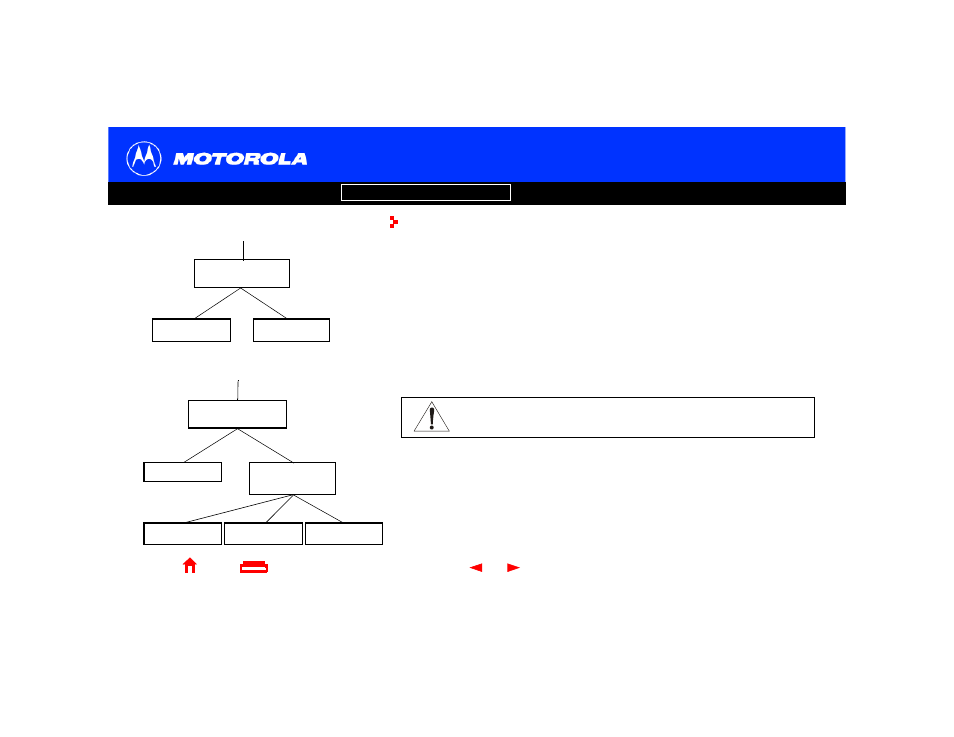

You can connect the USB port on one computer and the Ethernet port on another
computer directly to the cable modem, as shown at top left.
Caution
You can connect a single computer to the USB port and from one to 31 remaining users
to an Ethernet hub, as shown at bottom left. You cannot connect more than
one computer to the cable modem through the USB port.
Do not connect both the Ethernet and USB cables to the same computer.
Cable outlet
Coaxial cable
Computer
USB cable
Ethernet cable
Computer
SURFboard
cable modem
Cable outlet
Coaxial cable
Computer
Ethernet hub
or switch
USB cable
Computer
Computer
Computer
Ethernet crossover
cable
Ethernet cable
SURFboard
cable modem
