Page 379
377
Technical data

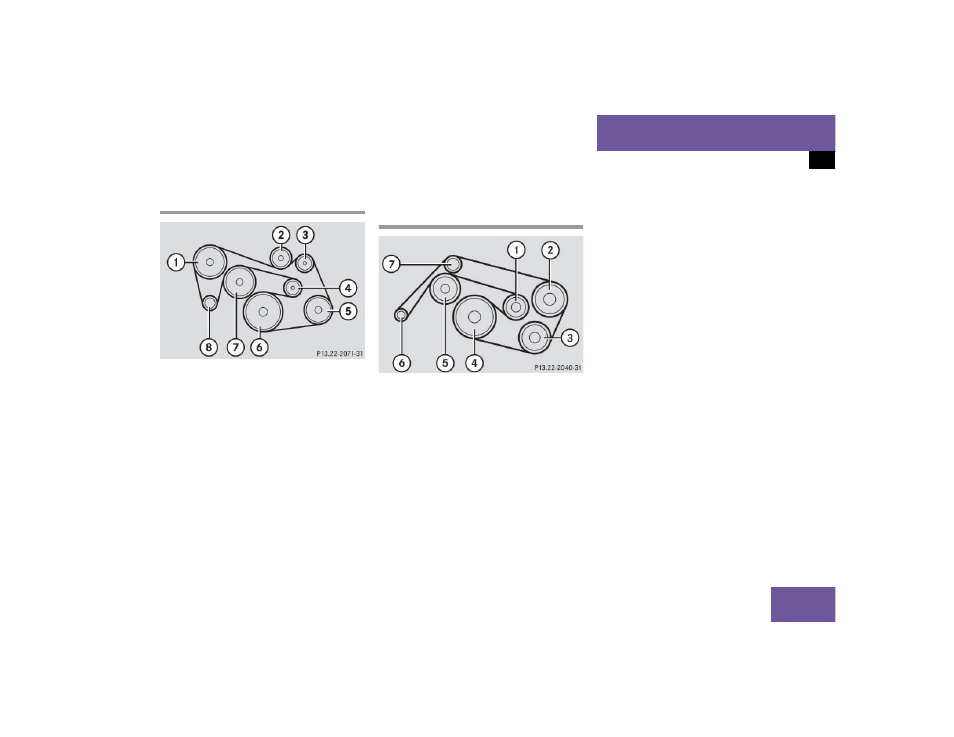

Layout of poly-V-belt drive
̄
Layout of poly-V-belt drive
C 230 Kompressor (all models)
1 Power steering pump
2 Idler pulley
3 Supercharger
4 Automatic belt tensioner
5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)
C 240 (all models)/C 320 (all models)/
C 55 AMG
1 Automatic belt tensioner
2 Power steering pump
3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
