Declination Housing Assembly
The Dec Housing mates to the RA Housing
using another huge dovetail block. The RA
Housing, DEC Housing and Pedestal are all
designed to allow you to track more than 6
degrees past meridian without interference.
This mount will let you cover the whole sky. In
addition to accepting quick change dovetail
plates, MAX has two generous wing mount plat-
forms that will allow you to attach guide scopes,
piggy back cameras, short focal length refractors
and a wide variety of secondary instruments
without interfering with Max's "all sky" design.

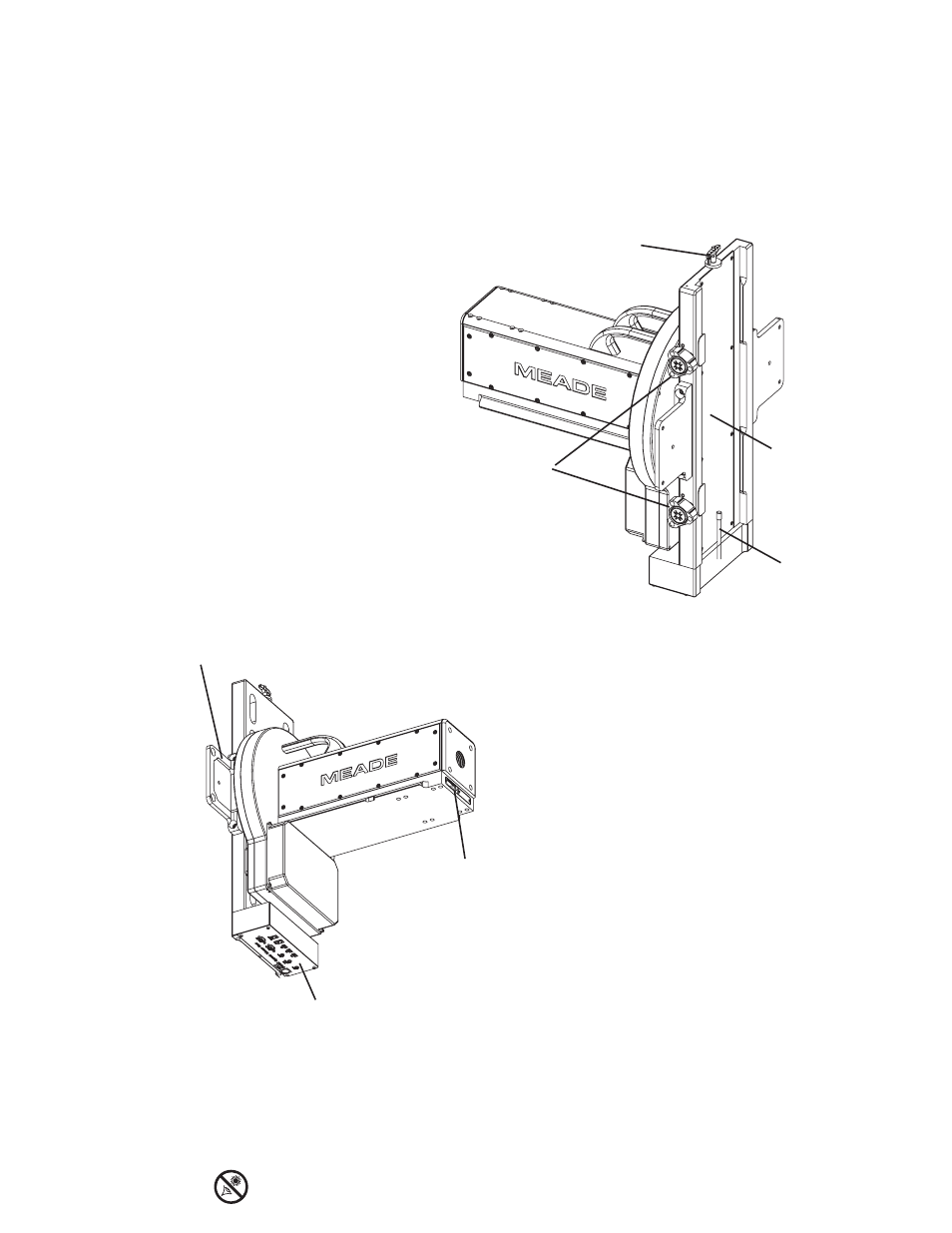

DEC
ASSEMBLY
DB-25 connector
Accessory
Wings (2x)
OTA Lock
Knobs (2x)
OTA Safety Lock
OTA
Female
Dovetail
Dec
Balance
Hard Stop
Bolt
Saddle
Panel
