Auto/Manual Switch
Manual Cycle Start(UP)
Auto Manual Switch
Door Activated Cycle (DOWN)
Selector Switch
Extended Wash
Manual Start Switch
Machine Ready
Heater OFF Light
In Cycle Light
Cycle Selection
Short - 65 Seconds
Medium-120 Seconds
Long -180 Seconds
OFF Position
(Only on S/N W8100-W8135)
PART 1: OPERATION
Figure 1.1-

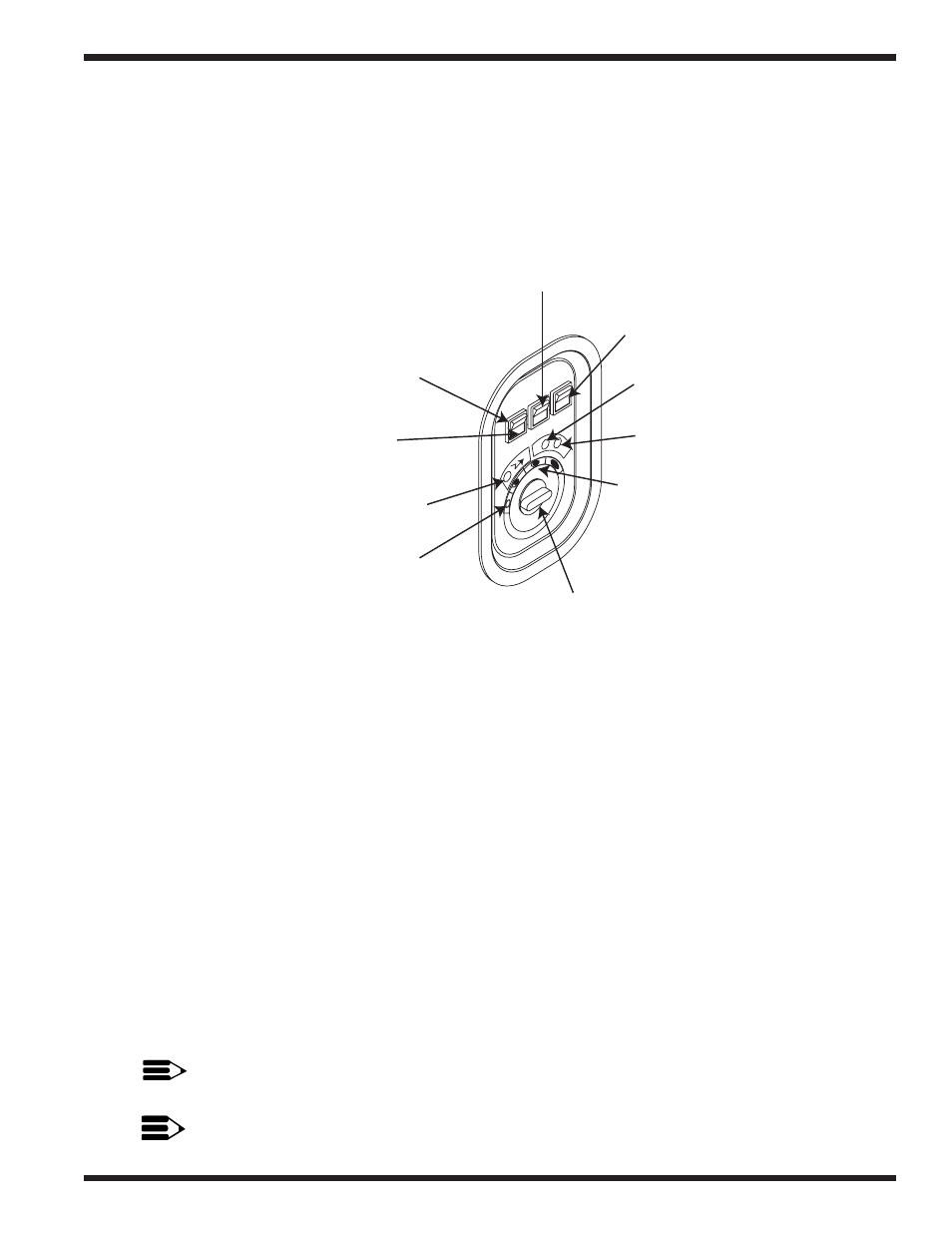

Control Panel Detail
PART 1: OPERATION (CONT.)
OPERATION AND USE (CONT.)
CONTROL PANEL LAYOUT
1. Close door.
2. To fill the machine, set the selector switch to any of the three positions. When the automatic
fill is complete, the wash tank heater will cut on until the tank reaches temperature. Then the
indicator light will turn on (this only applies to machines in the serial number range
W8100 to W8135).
3. Scrap and preflush all items to be washed and load the items into the rack. DO NOT OVER-
LOAD THE RACK. Wash cutlery and place upright in cutlery baskets.
4. Open the door and insert the rack into the machine.
5. With the selector switch choose the desired cycle time.
6. To start the cycle:
• For Manual Cycle Start, push the auto/manual switch to the up position. Push the Manual
Start Button.
• For Door Activated Start, push the auto/manual switch to the down position. Cycle will start
when the door is closed.
NOTE:
Machine must be in cycle prior to activating the extended wash.
NOTE:
This machine will not begin the rinse cycle until the rinse water reaches 180°F/82°C.
