ASSEMBLY
12 F-050406L
NOTE: In this instruction book, left and
right describe the location of a part with
the operator standing behind the handle.
UNPACKING INSTRUCTIONS
For shipping purposes, the mower was not
fully assembled. To complete the assembly of
the mower, follow the steps below.
HOW TO ASSEMBLE
THE CHUTE DEFLECTOR
WARNING: The chute deflector
is necessary for your safety and
protection. Do not operate the
mower if the chute deflector is missing or
is not installed correctly.
1. Remove the mower from the carton.
2. Remove all packing material from the
mower and the handle.
3. Attach the chute deflector to the mower
housing with a bolt, washer, and nut
(Figure 1). Make sure the fasteners are
tight.

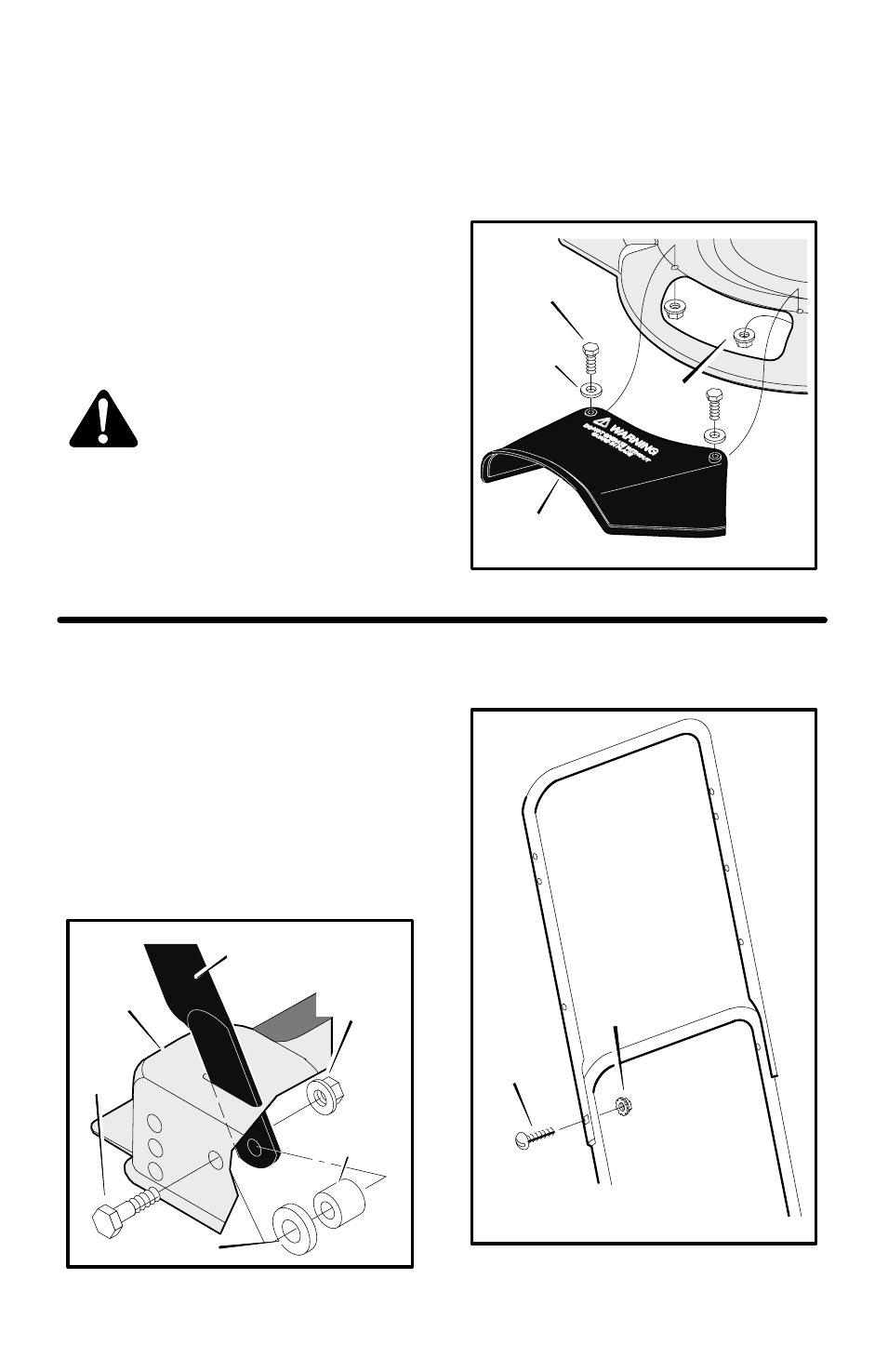

Figure 1
Bolt
1x121
Chute
Deflector
Washer
17x37
Nut
15x116
HOW TO ASSEMBLE THE HANDLE
1. Put the ends of the lower handle into the
handle slots (Figure 2).
2. Attach each side of the handle to the
mower housing with a bolt, washer,
spacer, and nut (Figure 2). Tighten the
bolts.
3. Assemble the upper part of the handle to
the lower part with the screws and lock-
nuts (Figure 3).
Figure 2
Flange Nut
15x84
Bolt
1x111
Mower
Housing
Lower Handle
Spacer
671914
Washer
845
Locknut
15x116
Screw
3x136
Figure 3
