PAGE 18 — QP2H CENTRIFUGAL PUMP • OPERATION AND PARTS MANUAL — REV. #0 (08/04/08)
OPERATION

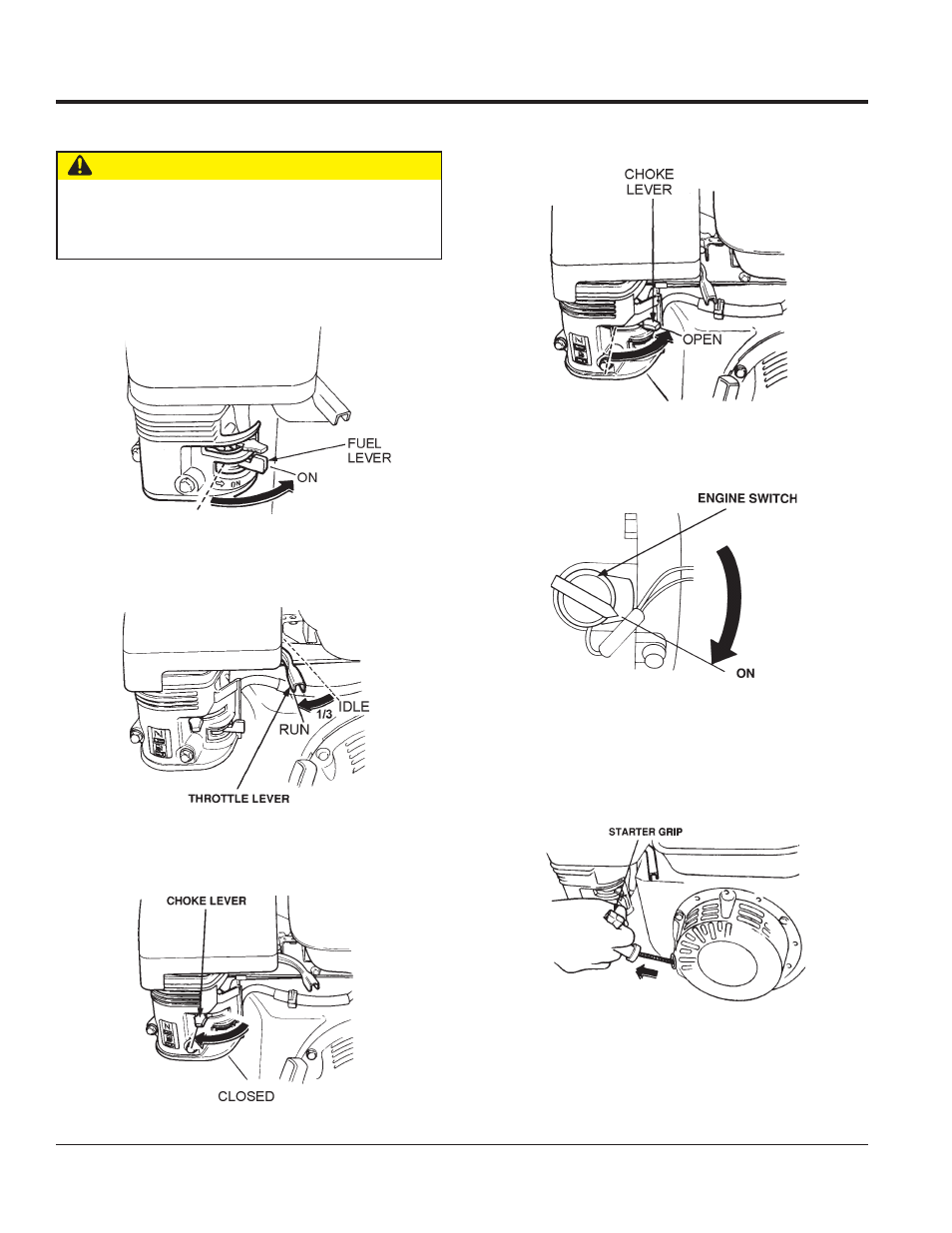

STARTING THE ENGINE
Figure 8. Throttle Lever (1/3 Start Position)
Figure 10. Engine Choke Lever (Open)
Figure 11. Engine ON/OFF Switch (ON Position)
1. Place the engine fuel valve lever (Figure 7) to the ON
position.
2. Move the throttle lever (Figure 8) away from the slow
position, about 1/3 of the way toward the fast position.
Figure 12. Starter Grip
Figure 7. Engine Fuel Valve Lever (ON Position)
CAUTION — Pump Priming
DO NOT attempt to start the engine unless the pump
has previously been
primed with water. Severe pump
damage will occur if pump has not been primed.
Figure 9. Engine Choke Lever (Closed)
3. Place the choke lever (Figure 9) in the CLOSED position
if starting a cold engine.
4. Place the choke lever (Figure 10) in the OPEN position
if starting a warm engine or the temperature is warm.
5. Place the engine ON/OFF switch (Figure 11) in the ON
position.
6. Grasp the starter grip (Figure 12) and slowly pull it out.
The resistance becomes the hardest at a certain position,
corresponding to the compression point. Pull the starter
grip briskly and smoothly for starting.
7. If the engine has started, and the choke lever was moved to
the CLOSED position to start the engine, gradually move the
choke lever lever to the OPEN position as the engine warms
up.If the engine has not started repeat steps 1 through 6.
