Ethernet Adapter Card Physical Description
Side and Front of Ethernet Adapter Card

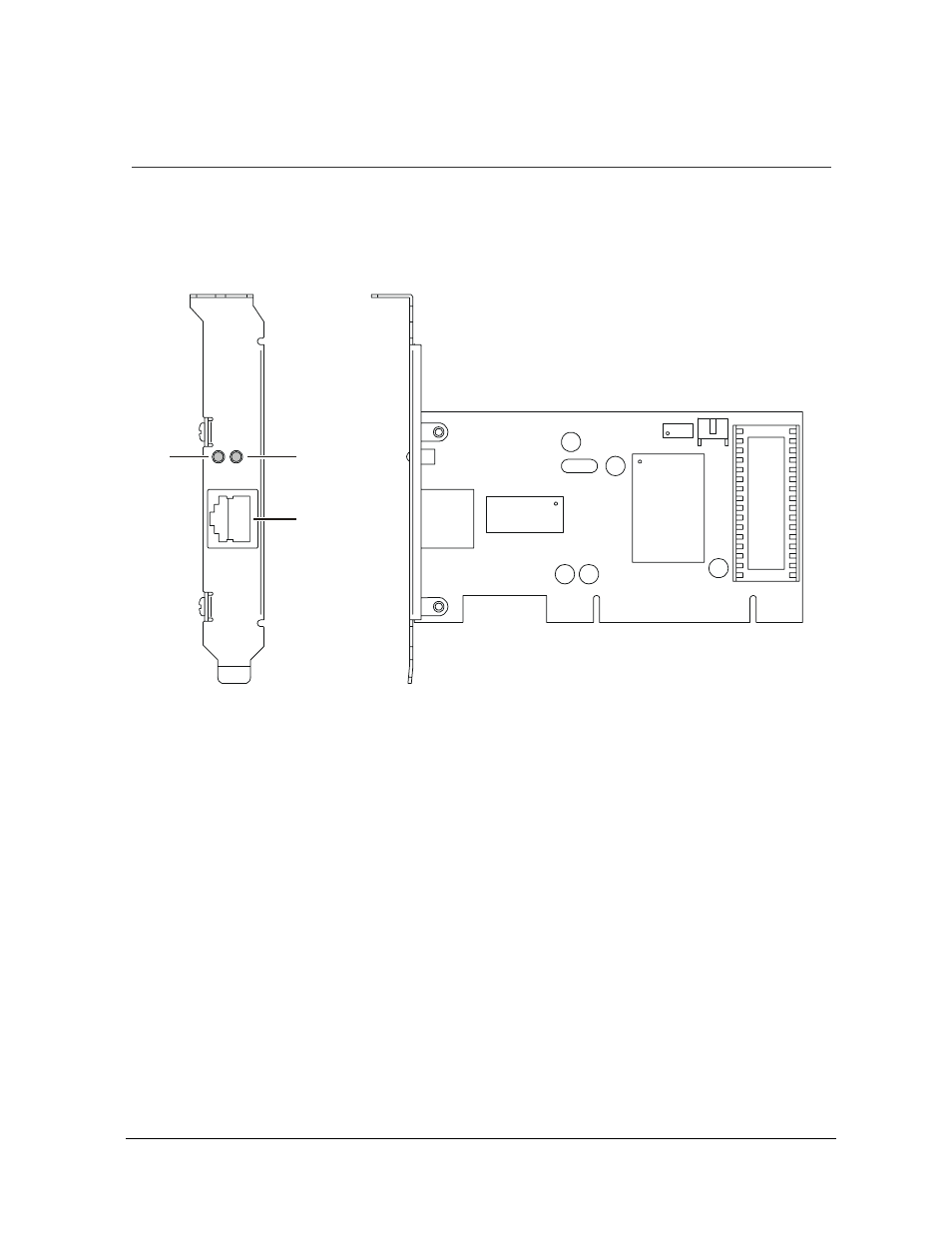

The following illustration shows the top and front view of the Ethernet Adapter:
Li
nk
/A
ct
10
0
1 2
3
LED Description
Feature Description
1 100 The 100 LED illuminates amber when the card operates at 100Mbps. If the
100 LED is not illuminated and the PC is powered on, the card is operating
at 10Mbps.
2 Link/Act The Link/Act LED illuminates green when the card successfully connects to
a network. It blinks when data is being transmitted or received over the
network.
3 Ethernet Port The port in which you plug in your Ethernet cable.
