Stringent Motorola
Accelerated Life Testing
simulating five years of hard
use in real life. EIA R5-3168
in Shock, Vibration, Dust,
Humidity, IP54 for Sealing. Compliance with ISO 9001
Standard-on international quality
system assurance on design,
development, production,
installation and servicing of a
product. Stamp of Approval from
the U.S. Military for use
in rough environment.
TECHNICAL SPECIFICATION
Motorola Electronics Pte Ltd
MIC Level 7, 12 Ang Mo Kio Street 64
Ang Mo Kio Industrial Park 3, Singapore 569088
www.motorola.com/governmentandenterprise
MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Office.
All other products or service names are the property of their registered owners. ©Motorola, Inc. 2006
AC3-04-021 Rev.4
ENHANCE YOUR
RADIO’S
CAPABILITIES
A comprehensive range of
accessories is available to suit
your needs. With the right
combinations of batteries,
headsets, carry cases and
antenna, it can increase your
operational productivity and
comfort tremendously. Motorola
original accessories are built with
the highest quality standards and
are specially engineered to
ensure maximum performance
of your radio.
Programmable
Features
• High/Low Power
• System Scan
• Monitor
• Tight/Normal Squelch
• Repeater/Talkaround
ACCESSORIES #
BATTERIES
Standard NiMH Battery, 1400mAh
NNTN4851A
Slim LiIon Battery, 1600mAh
NNTN4970A
Extended LiIon Battery,
1800mAh
NNTN4497AR
NiCd Battery, 1100mAh
NNTN4496AR
SINGLE & MULTI UNIT
CHARGERS
Desktop Rapid Charger w/US NA
Plug
WPLN4138_R
Desktop Rapid Charger w/Euro Plug
WPLN4139_R
Desktop Rapid Charger w/UK Plug
WPLN4140_R
Rapid Charger MUC 120V w/US
Plug
WPLN4161AR
Rapid Charger MUC 220V w/Euro
Plug
WPLN4162AR
Rapid Charger MUC 220V w/UK
Plug
WPLN4163AR
# Motorola carries a wide range of audio and carrying solution.
Please refer to specified accessories brochures for more
information.
GP3188 Specifications *
General VHF UHF
Frequency 136-162MHz,146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Channel capacity 16 channels
Power supply 7.5V ± 20%
Dimensions (without belt clip and antenna)
With NiCd/extended LiIon 126.5mm (H) x 61.5mm (W) x 45mm (D)
With standard NMH 126.5mm (H) x 61.5mm (W) x 43mm (D)
With slim LiIon 126.5mm (H) x 61.5mm (W) x 42mm (D)
Weight (without belt clip and antenna)
With extended LiIon 351g
With slim LiIon 350g
With standard NMH 417g
With NiCd 406g
Average Battery Life@ 5-5-90 Duty Cycle Hi Power (5W) Low Power (1W) Hi Power (4W) Low Power (1W)
With extended LiIon 14hrs 19hrs 14hrs 19hrs
With slim LiIon 12hrs 17hrs 12hrs 17hrs
With standard NMH 10hrs 13hrs 10hrs 13hrs
With NiCd 8hrs 10hrs 8hrs 10hrs
Receiver+ VHF 12.5 kHz VHF 20/25kHz UHF 12.5 kHz UHF 20/25kHz
Frequency 136-162MHz,146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Sensitivity 12dB EIA SINAD 0.25uV 0.25uV
Adjacent Channel Selectivity -65dB -70dB -60dB -70dB
Intermodulation -70dB -70dB
Frequency Stablility (-30 ° C to +60 ° C) 0.00025% 0.00025%
Spur Rejection -75dB -75dB
Hum and Noise [email protected] -50dB@25kHz
Image and 1/2 I-F Rejection -70dB -70dB
Audio Ouput @ < 5% Distortion 500mW 500mW
Transmitter VHF VHF UHF UHF
Frequency 136-162MHz,146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Channel Spacing 12.5/20/25kHz 12.5/20/25kHz
Frequency Stablility (-30
°
C to +60
°
C) 0.00025% 0.00025%
Spurs/Harmonics -36 dBm < 1GHz -36 dBm < 1GHz
-30 dBm > 1GHz -30 dBm > 1GHz
Audio Response
(from 6dB/oct. Premphasis, 300 to 3000Hz) +1, -3dB +1, -3dB
Audi Distortion
@1000Hz, 60% Rated Max. Dev. <3% <3%
FM Noise -40dB(12.5Khz) -40dB(12.5Khz)
-45dB(25Khz) -45dB(25Khz)
FCC Modulation 20/25 kHz 16K0F3E & 11K0F3E 16K0F3E & 11K0F3E
* Availability subject to country’s laws and regulations. Radios meet applicable regulatory requirements.
All specifications subject to change without notice.
Specifications are not representative of all radios and may vary in different radios.
+ All RF readings are typical.

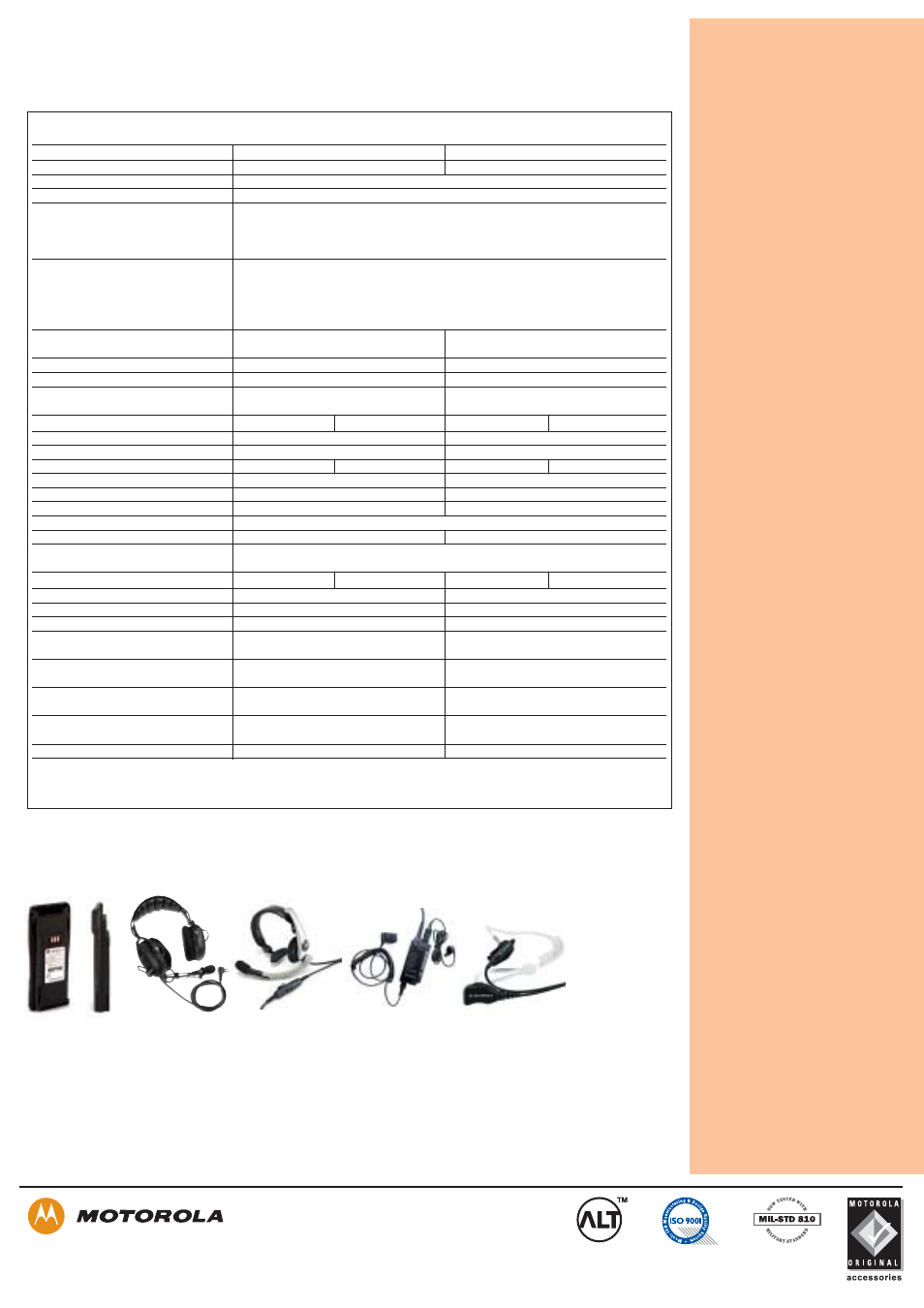

ACCESSORIES FOR GP3188
RLN5238A -
Sports-Style
Headset with in-
line PTT
BDN6646C -
Ear Microphone
with PTT
Interface Module
HMN9021A -
Medium Weight
Dual-Muff
Headset with
Swivel Mic
NNTN4970A -
Slim LiIon
Battery
PMLN4606A -
2Wire
Surveillance Kit
with Clear
Acoustic Tube
