21
assigning record outputs 5 IF THE SOURCE IN QUESTION IS A RECORDABLE DEVICE…
You will be further prompted to associate a particular
record output with

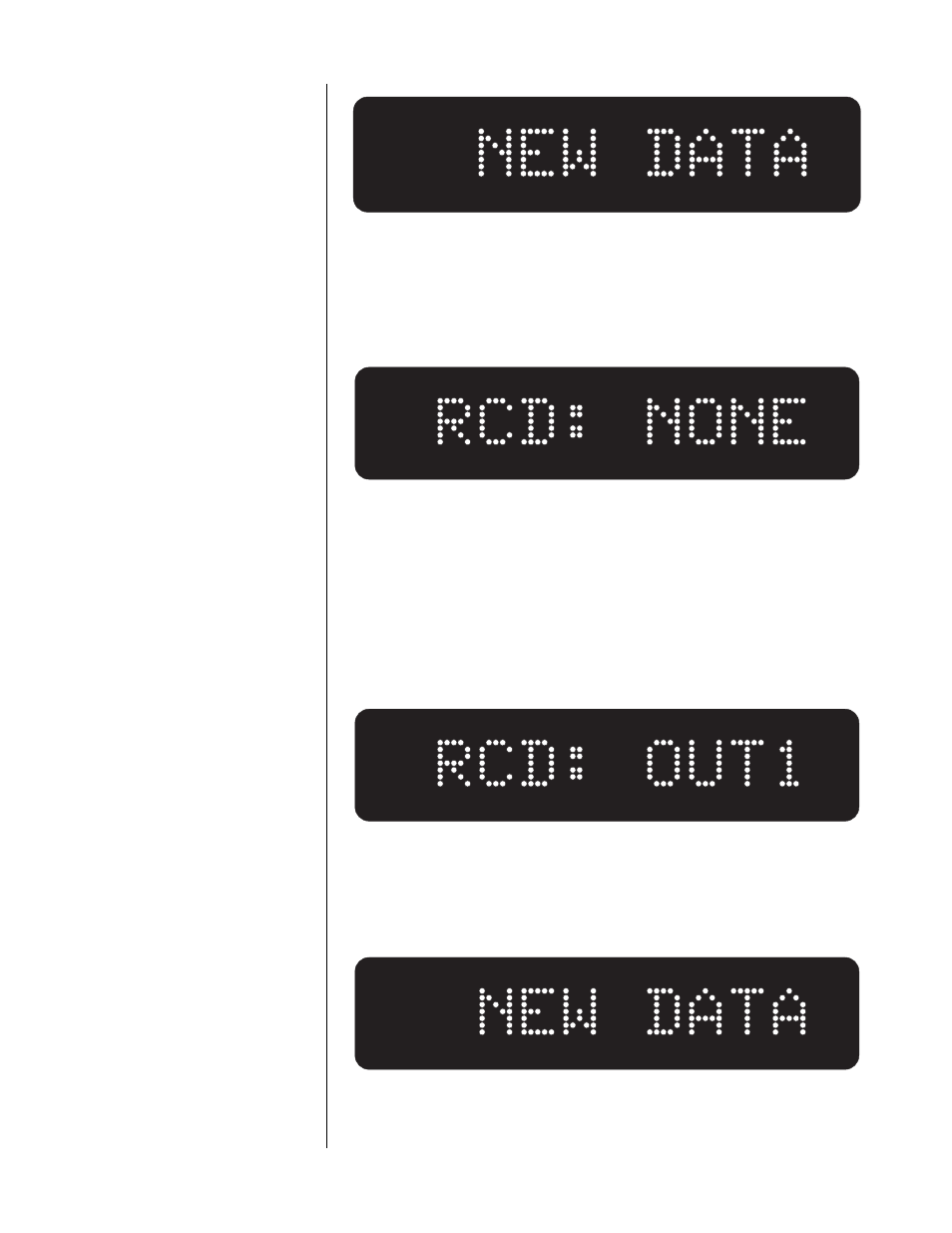

this particular device. Instead of showing “ NEW DATA ,” the display will read
“ RCD: NONE ” as shown below.
You may elect not to use either record output with this particular device, as
may be the case if you have several devices in your system that are capable
of recording. In this case, leave the display on “
RCD: NONE ” and move to
Step 6.
You may also select either record output 1 or 2 to be associated with this
particular input. To do so, press the input button repeatedly until you see
your choice of
OUT1 or OUT2 in the display. ( OUT1 is given as an example
below.)
6 STORE YOUR SELECTION
Save your choice in nonvolatile memory by pressing and holding the Mode
button until the display reads
NEW DATA , as below.
